Wastewater/Activity/PacpInspection/1.0Jan 3, 2018, 10:02 AM
21 1068_21 1067 _03012018_020250.mp4
- Date
- 01/03/2018
- W/O
- 679327
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00769
- PipeID
- P16193
- Time
- 2:02 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5301
- Sewer Name
- 21 GAREY AVENUE TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_679327_TV21012_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 21 1068
- Downstream MH
- 21 1067
- Dir. of Survey
- Downstream
- Length Surveyed
- 291.9 ft.
- Total Length
- 291.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 1
- O&M Quick
- 2112
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

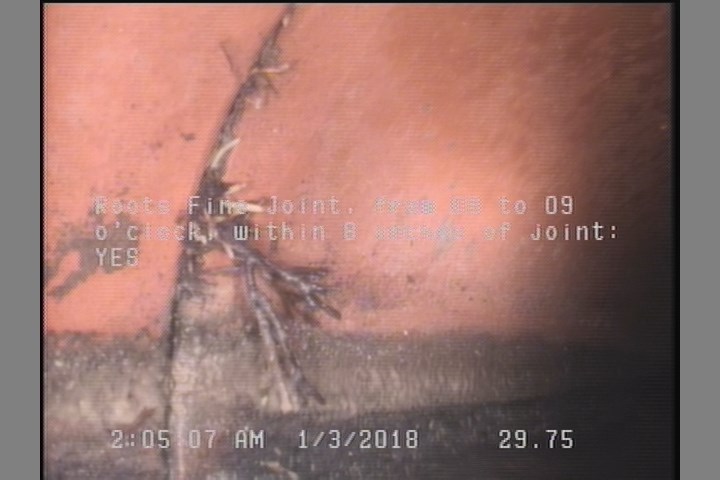

29.8 ft. - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YES

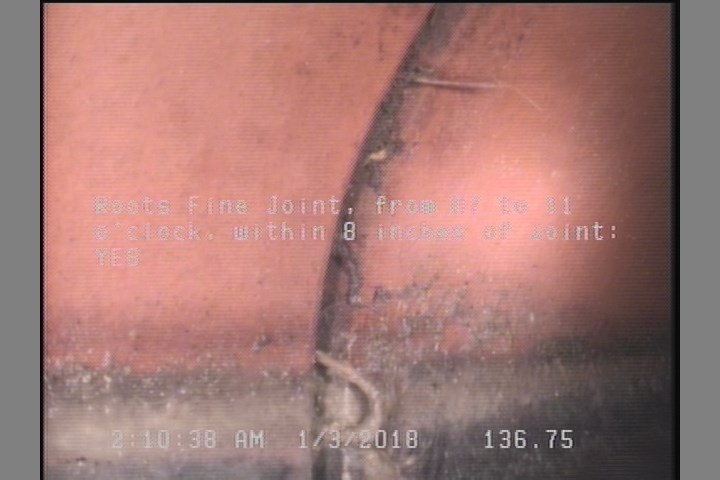

136.8 ft. - Roots Fine Joint, from 07 to 11 o'clock, within 8 inches of joint: YES

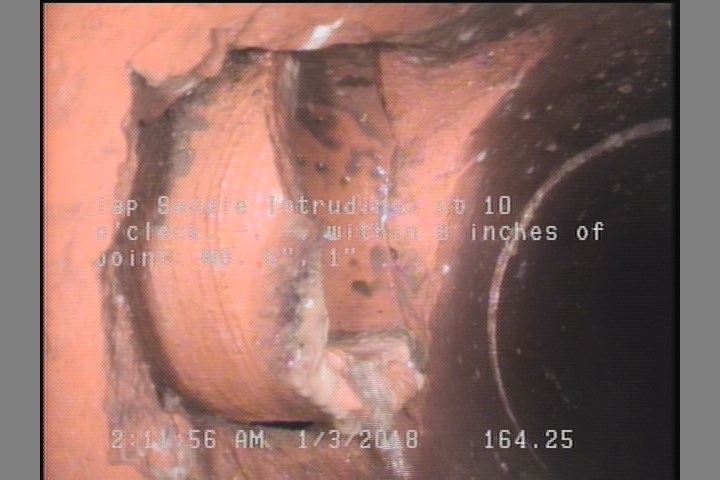

164.3 ft. - Tap Saddle Intruding, at 10 o'clock, -, -, within 8 inches of joint: NO, 6", 1"

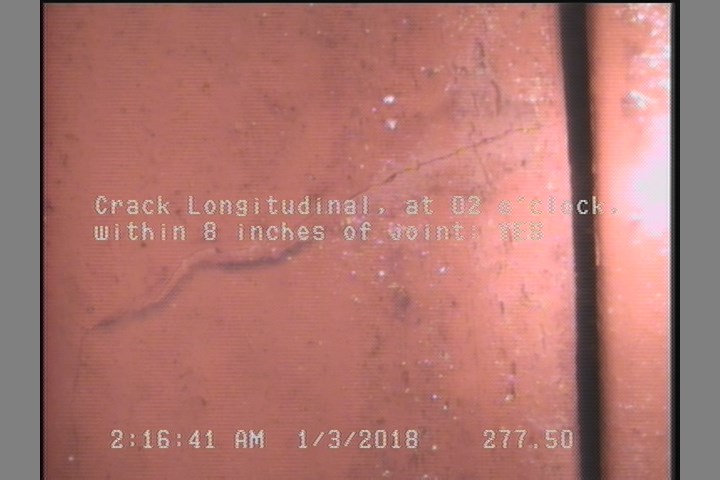

277.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 29.8 | RFJ | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 287.6 | TF | — |
| 291.9 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 0 | AMH | 21 1068 |
| 291.9 | AMH | 21 1067 |
| 0 | MWL | — |
| 60 | TF | — |
| 270.9 | TF | — |
| 277.5 | CL | — |
| 79.2 | TF | — |
| 136.8 | RFJ | — |
| 0 | MWM | — |
| 164.3 | TSI | — |
| 184.7 | TS | — |
Properties (6)
- additional_info
- SC346775
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-03T02:02:23-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
