Wastewater/Activity/PacpInspection/1.0Jan 3, 2018, 07:46 AM
21 1103A_21 1103 _02012018_234639.mp4
- Date
- 01/02/2018
- W/O
- 679327
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00769
- PipeID
- P16213
- Time
- 11:46 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5301
- Sewer Name
- 21 GAREY AVENUE TRUNK
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_679327_TV21012_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 21 1103A
- Downstream MH
- 21 1103
- Dir. of Survey
- Downstream
- Length Surveyed
- 270.1 ft.
- Total Length
- 270.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 108
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 108
Observation photos (1)

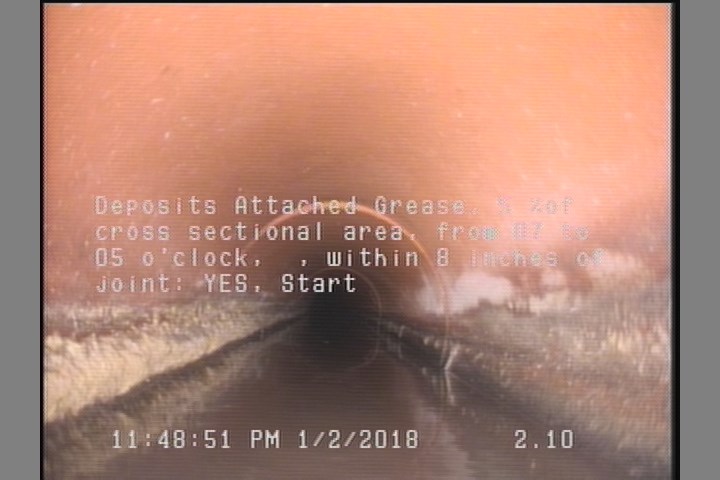

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 21 1103A |
| 0.6 | MGO | CONNECTION AT MH 8 O'CLOCK |
| 270.2 | AMH | 21 1103 |
| 0 | MWM | — |
| 2.1 | DAGS | — |
| 270.2 | DAGS | — |
| 179.2 | TF | — |
| 19.9 | TF | — |
| 79.5 | TF | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC346775
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-02T23:46:07-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
