Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 06:45 AM
02 1661_02 1660_05072017_235045.mp4
- Date
- 07/05/2017
- W/O
- 613355
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00289
- PipeID
- P18817
- Time
- 11:45 PM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3980-SC342143
- Sewer Name
- 02 MONTEREY PARK EXTENSION TRUNK
- City
- MONTEREY PARK
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_613355_TV02105_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1661
- Downstream MH
- 02 1660
- Dir. of Survey
- Downstream
- Length Surveyed
- 39.4 ft.
- Total Length
- 39.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

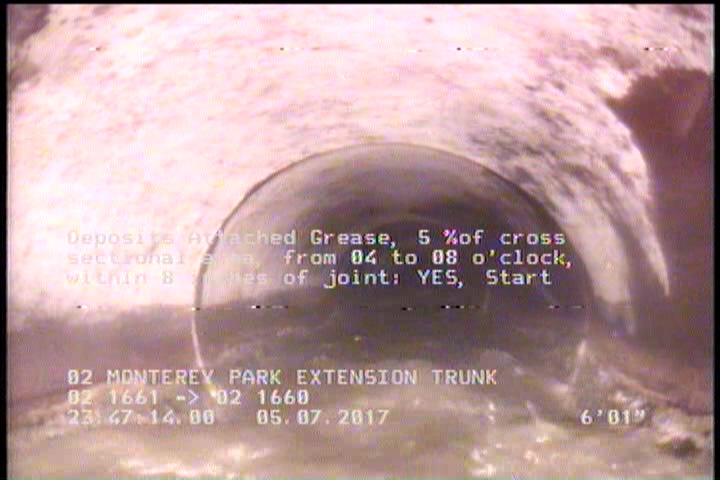

6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 36.8 | DAGS | — |
| 0 | AMH | 02 1661 |
| 0 | MWL | — |
| 6.8 | TFC | — |
| 6.1 | DAGS | — |
| 39.4 | AMH | 02 1660 |
| 0 | MWM | — |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-05T23:45:08-07:00
- is_lateral_inspection
- false
