Wastewater/Activity/PacpInspection/1.0Oct 3, 2018, 05:35 PM
Section#1_H 0404_H 0403A__1032018__I0079.mp4
- Date
- 10/03/2018
- W/O
- 0729413
- Weather
- Light Rain
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00177
- PipeID
- P10835
- Time
- 10:35 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0079
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A
- City
- WHITTIER
- Loc. details
- Yard
- Location Code
- Y
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20181003SHO_JOINT_OUTFALL_H_UNIT_5A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Upstream MH
- H 0404
- Downstream MH
- H 0403A
- Dir. of Survey
- Downstream
- Length Surveyed
- 688.3 ft.
- Total Length
- 688.3 ft.
- Structural Index
- 3
- Structural Quick
- 5C3L
- Structural Rating
- 390
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 390
Observation photos (3)

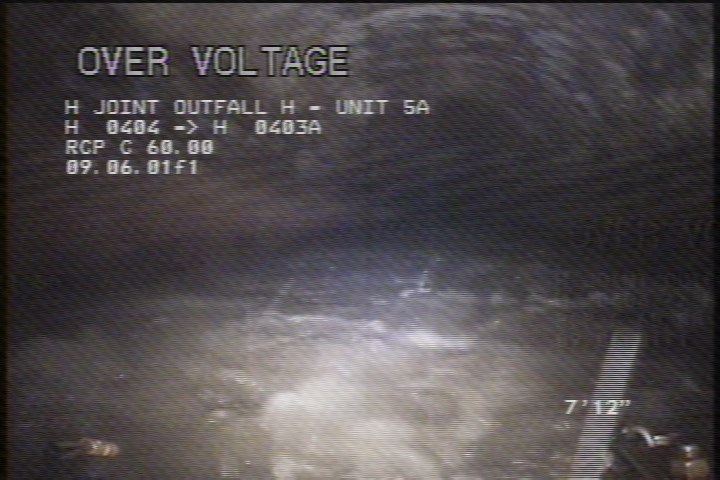

8 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

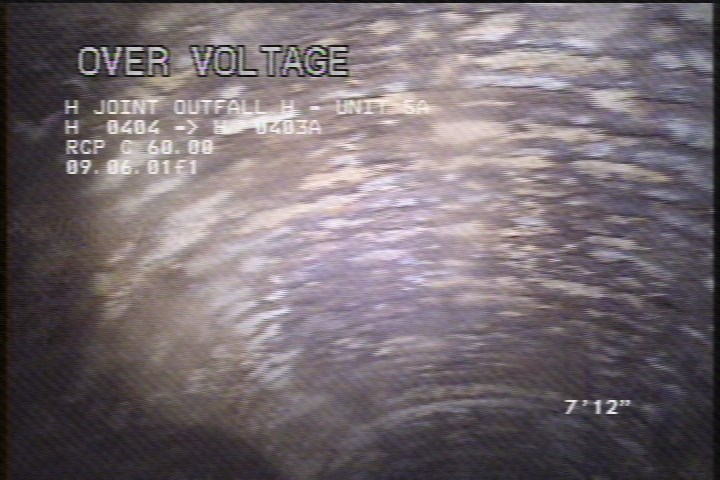

8 ft. - Surface Reinforcement Corroded, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

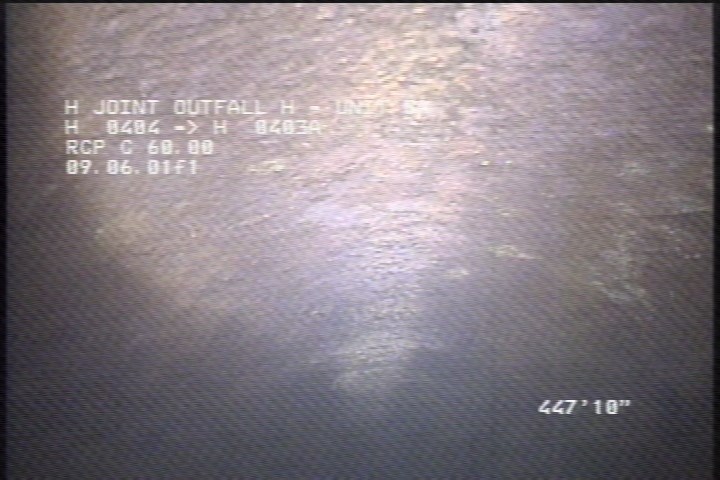

443.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 106.5 | SRC | — |
| 0 | MWL | — |
| 0 | AMH | H 0404 |
| 325.7 | SAP | — |
| 8 | SAP | — |
| 688.3 | AMH | H 403A |
| 443.2 | SSS | — |
| 688.3 | SSS | — |
| 8 | SRC | — |
| 0 | MWM | — |
Properties (6)
- custom_field_three
- REBAR IS AGGREGATE IS VISIBLE
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-03T10:35:02-07:00
- documentation
- OBREGON, YOUNG, VENDRYES, RUVALCABA
- is_lateral_inspection
- false
