Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 3, 2018, 04:34 PM

  • 02 2193_02 2192_1032018_094105.mp4

Date
10/03/2018
W/O
0731794
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00253
PipeID
P04466
Time
9:34 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7824
Sewer Name
02 DOWNEY-BELLFLOWER DIVERSION RELIEF TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29A
Purpose
Routine Assessment
Project
20181002DF_DOWNEY_BELLFLOWER_DIV_REL_TR
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 2193
Downstream MH
02 2192
Dir. of Survey
Downstream
Length Surveyed
525.9 ft.
Total Length
525.9 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 02 2193 to 02 2192
MH: 02 2193MH: 02 2192downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:37 AM0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start113.2 ft. MGP - General Photograph230.4 ft. MGP - General Photograph273 ft. MGP - General Photograph345.3 ft. MGP - General Photograph454.2 ft. MGP - General Photograph515.2 ft. MGP - General Photograph520 ft. MGP - General Photograph523.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish523.5 ft. MGO - General Observation - Mag Coat xx% 9 to 3 o' Clock Throughout525.9 ft. AMH - Downstream Manhole, Survey Ends - 10:06 AM525.9 ft. MGO - General Observation - ROACHES @ MH

Observation photos (8)

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

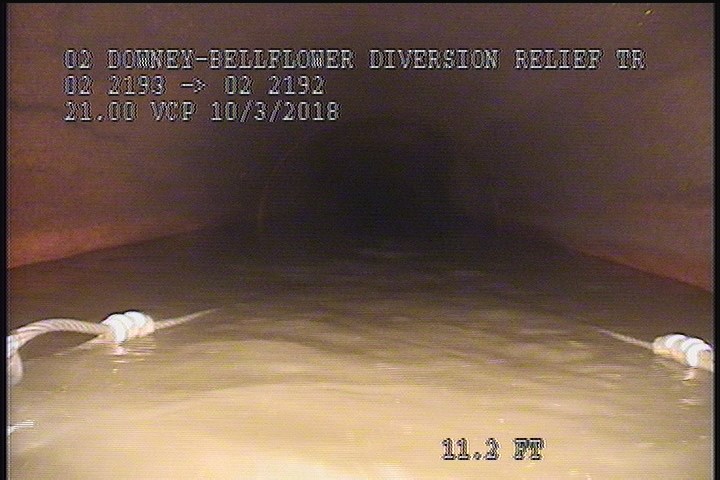

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

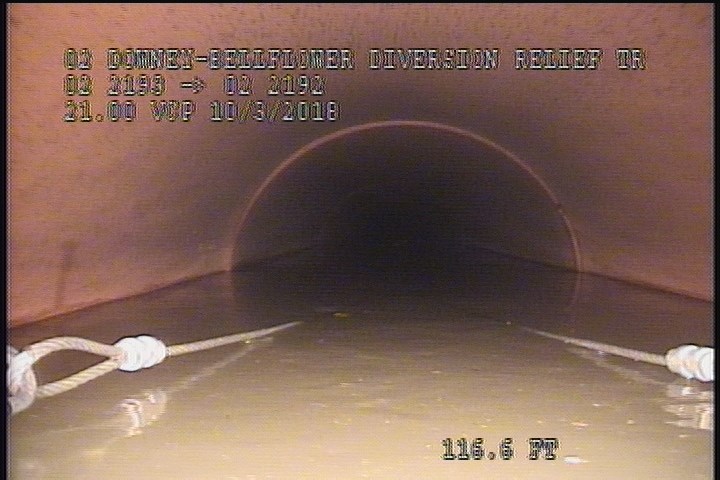

    113.2 ft. - General Photograph

  • General Photograph

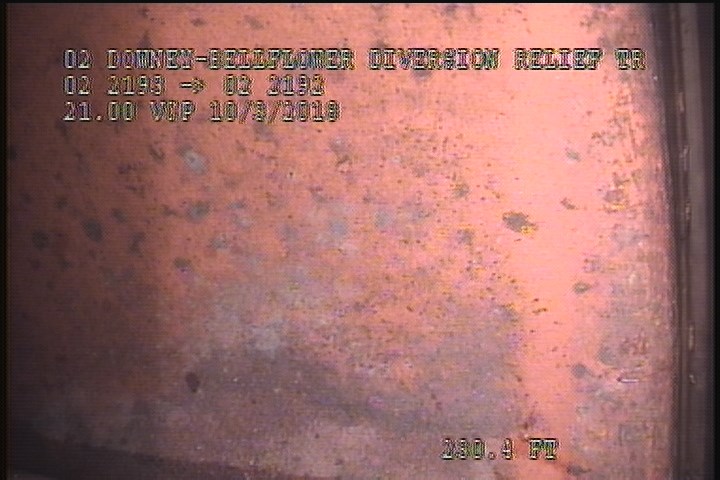

    230.4 ft. - General Photograph

  • General Photograph

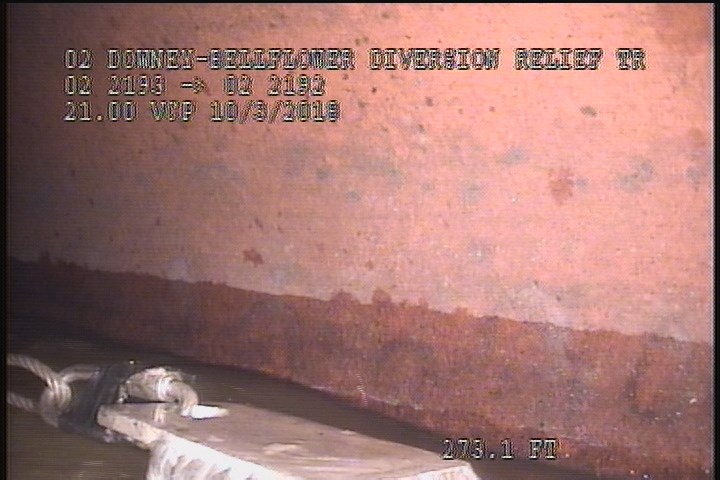

    273 ft. - General Photograph

  • General Photograph

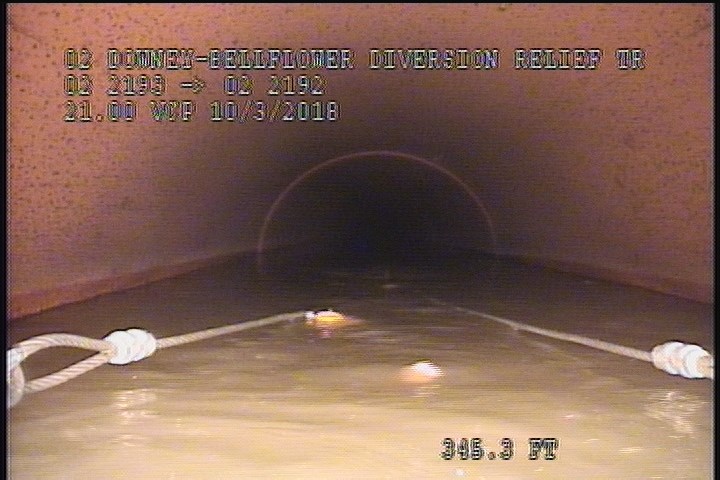

    345.3 ft. - General Photograph

  • General Photograph

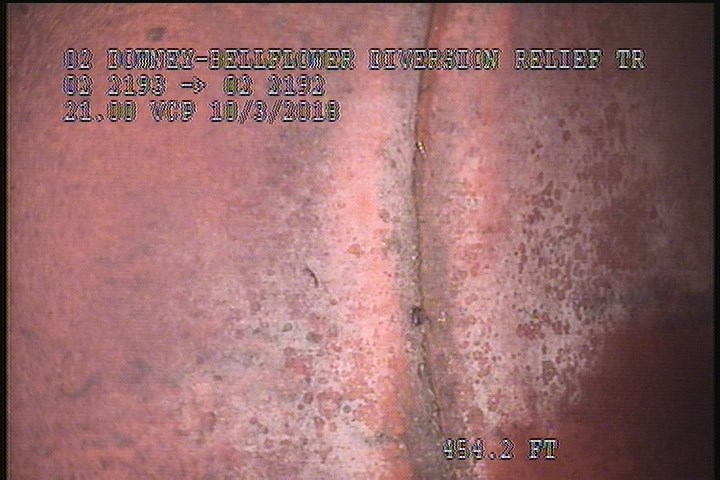

    454.2 ft. - General Photograph

  • General Photograph

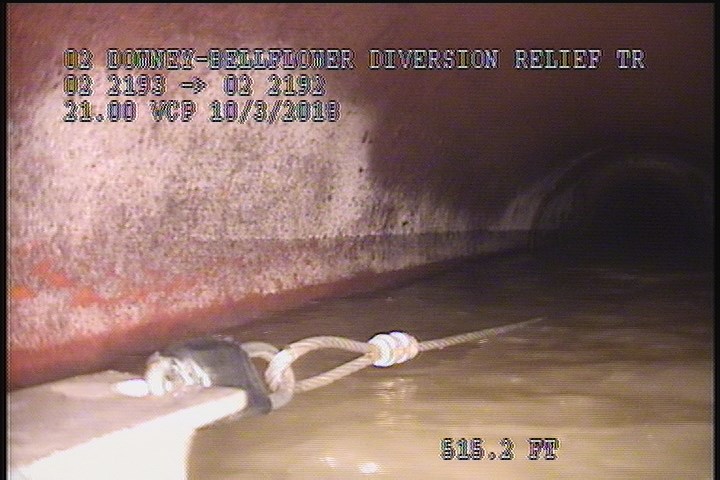

    515.2 ft. - General Photograph

  • General Photograph

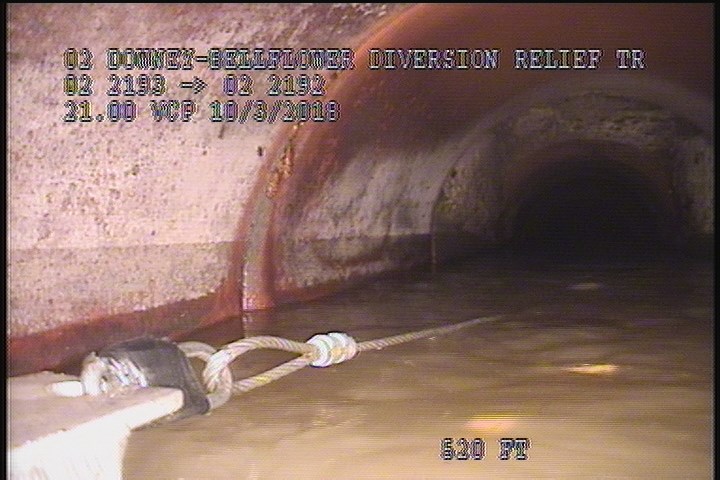

    520 ft. - General Photograph

All inspections of P04466Work order 0731794

Observations (15)

DistanceCodeObservation
230.4MGP—
0MWM—
525.9AMH10:06 AM
0AMH9:37 AM
523.5MGOMag Coat xx% 9 to 3 o' Clock Throughout
2SSS—
113.2MGP—
520MGP—
345.3MGP—
454.2MGP—
273MGP—
0MWL—
515.2MGP—
525.9MGOROACHES @ MH
523.4SSS—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2018-10-03T09:34:51-07:00
documentation
FRANKLIN, PARAISO, CASTILLO, SHADLER
is_lateral_inspection
false
