Wastewater/Activity/PacpInspection/1.0Jun 27, 2018, 10:28 AM
03 0539_03 0538_6272018_034631.mp4
- Date
- 06/27/2018
- W/O
- 0711839
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00367
- PipeID
- P04989
- Time
- 3:28 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0907
- Sewer Name
- 03 LOS COYOTES DIAGONAL RELIEF TRUNK
- City
- LAKEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20180622MDM_LOS_COYOTES_DIAGONAL_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 03 0539
- Downstream MH
- 03 0538
- Dir. of Survey
- Downstream
- Length Surveyed
- 328.9 ft.
- Total Length
- 328.9 ft.
- Structural Index
- 3
- Structural Quick
- 4122
- Structural Rating
- 8
- O&M Index
- 3
- O&M Quick
- 5142
- O&M Rating
- 20
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 28
Observation photos (5)

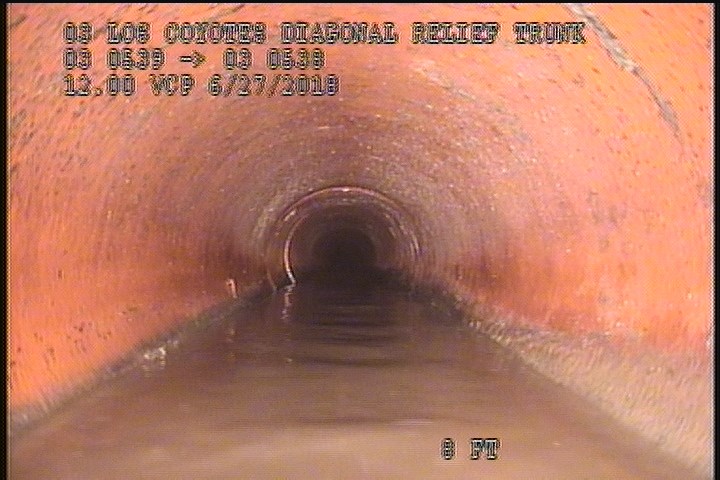

8 ft. - General Observation - 12" VCP

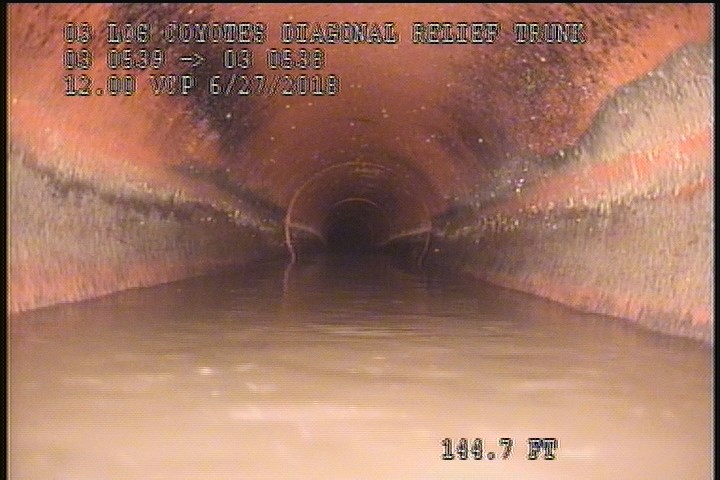

144.7 ft. - Water Level, Sag in pipe, 30 %of cross sectional area

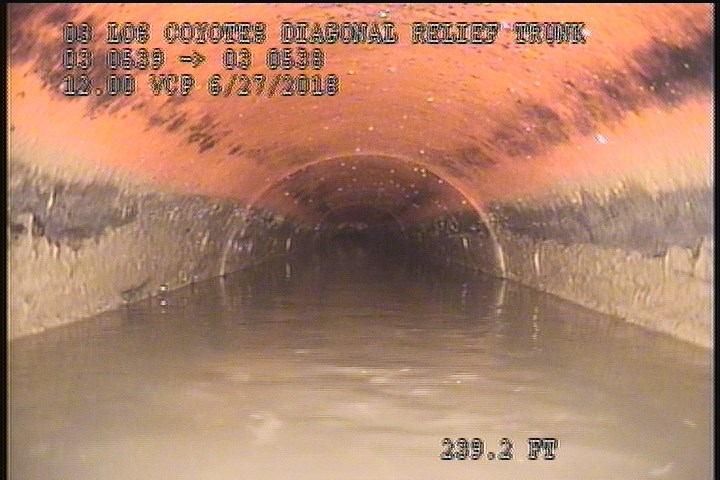

239.2 ft. - Water Mark, 80 %of cross sectional area
256.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start

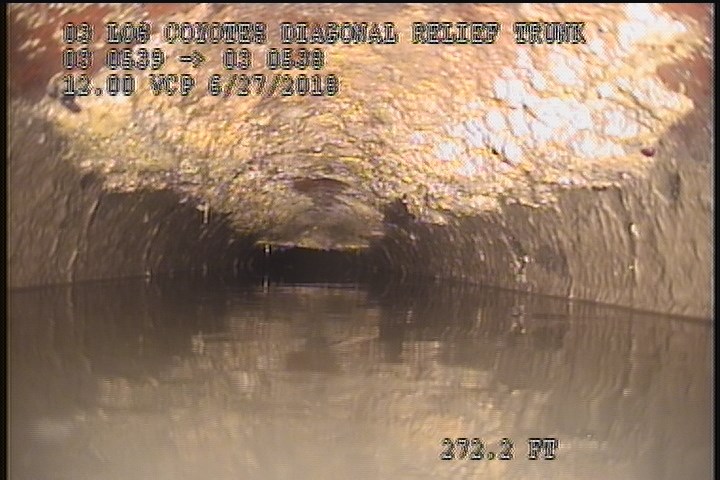

272.2 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start
Observations (26)
| Distance | Code | Observation |
|---|---|---|
| 144.7 | MWLS | — |
| 286.2 | DAGS | — |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 239.2 | MWM | — |
| 308.7 | MWM | — |
| 0 | MWL | — |
| 308.7 | MWL | — |
| 0 | MWM | — |
| 77.6 | DAGS | — |
| 272.2 | DAGS | — |
| 216.9 | MWL | — |
| 256.7 | DAGS | — |
| 263.6 | TF | Active |
| 260.3 | MWL | — |
| 8 | MGO | 12" VCP |
| 328.9 | AMH | 4:25AM |
| 239.2 | MWL | — |
| 286.2 | MWLS | — |
| 275 | MWL | — |
| 272.2 | DAGS | — |
| 46.8 | MWM | — |
| 286.2 | MWL | — |
| 0 | AMH | 3:50AM |
| 46.8 | MWLS | — |
| 67.9 | MWM | — |
| 216.9 | MWM | — |
Properties (6)
- custom_field_three
- SAGS THROUGHOUT REACH UP TO 70%
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-27T03:28:23-07:00
- documentation
- MARTIN,OLIVER 111,YOUNG
- is_lateral_inspection
- false
