Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 5, 2018, 07:36 AM

  • 15 1048_15 1047_652018_004545.mp4

Date
06/05/2018
W/O
0706200
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00631
PipeID
P12807
Time
12:36 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0880
Sewer Name
15 SLACK ROAD TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Maintenance Related
Project
20180605MDM_SLACK_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
15 1048
Downstream MH
15 1047
Dir. of Survey
Downstream
Length Surveyed
330.4 ft.
Total Length
330.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3322
O&M Rating
13
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 15 1048 to 15 1047
MH: 15 1048MH: 15 1047downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:40AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active38 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open90.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open106.1 ft. RML - Roots Medium Lateral, from 01 to 06 o'clock, 30 %, within 8 inches of joint: YES106.1 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open106.1 ft. RML - Roots Medium Lateral, from 01 to 06 o'clock, 30 %, within 8 inches of joint: YES127 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped171.5 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped175.7 ft. RML - Roots Medium Lateral, from 08 to 11 o'clock, 5 %, within 8 inches of joint: YES175.7 ft. TFD - Tap Factory Made Defective, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open-30% ROOTS224.2 ft. TFD - Tap Factory Made Defective, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open-90% ROOTS232.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Active277 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Capped281 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open321.2 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Active325.6 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open330.4 ft. AMH - Downstream Manhole, Survey Ends - 1:05AM

Observation photos (3)

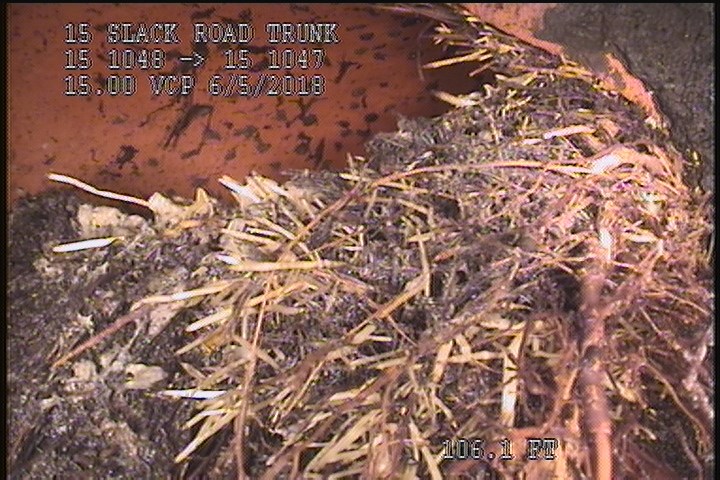

  • Roots Medium Lateral, from 01 to 06 o'clock, 30 %, within 8 inches of joint: YES

    106.1 ft. - Roots Medium Lateral, from 01 to 06 o'clock, 30 %, within 8 inches of joint: YES

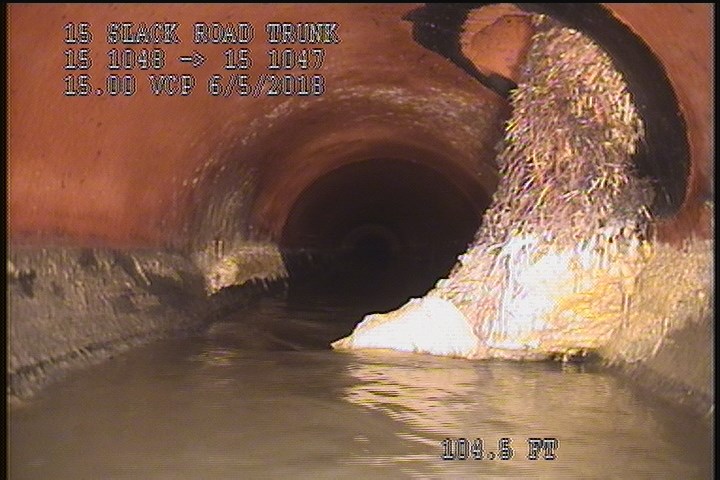

  • Roots Medium Lateral, from 01 to 06 o'clock, 30 %, within 8 inches of joint: YES

    106.1 ft. - Roots Medium Lateral, from 01 to 06 o'clock, 30 %, within 8 inches of joint: YES

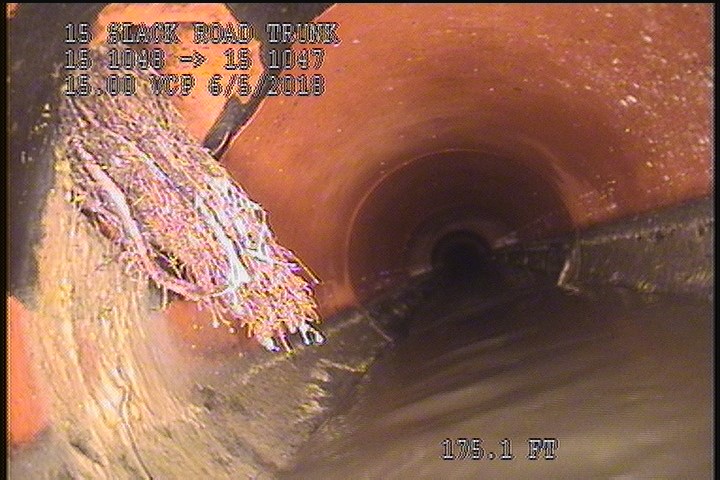

  • Roots Medium Lateral, from 08 to 11 o'clock, 5 %, within 8 inches of joint: YES

    175.7 ft. - Roots Medium Lateral, from 08 to 11 o'clock, 5 %, within 8 inches of joint: YES

All inspections of P12807Work order 0706200

Observations (20)

DistanceCodeObservation
321.2TFActive
175.7RML—
171.5TFCCapped
106.1RML—
175.7TFDOpen-30% ROOTS
330.4AMH1:05AM
127TFCCapped
277TFCCapped
0AMH12:40AM
281TFOpen
0MWL—
232.3TFActive
224.2TFDOpen-90% ROOTS
106.1TFOpen
38TFOpen
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
106.1RML—
90.5TFOpen
325.6TFOpen

Properties (5)

additional_info
POST ROOT EVALUATION ONLY
customer
LACSD
datetime
2018-06-05T00:36:04-07:00
documentation
MARTIN,REVELES,OILVER 111,YOUNG
is_lateral_inspection
false
