Wastewater/Activity/PacpInspection/1.0Jun 4, 2018, 10:00 AM
C 0213_C 0212A_642018_041629.mp4
- Date
- 06/04/2018
- W/O
- 0706820
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00124
- PipeID
- P09606
- Time
- 3:00 AM
- Certificate
- U-014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0879
- Sewer Name
- C JOINT OUTFALL C - UNIT 3E
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 14
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180604MDM_JOINT_OUTFALL_C_UNIT_3E
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- C 0213
- Downstream MH
- C 0212A
- Dir. of Survey
- Downstream
- Length Surveyed
- 81.7 ft.
- Total Length
- 81.7 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

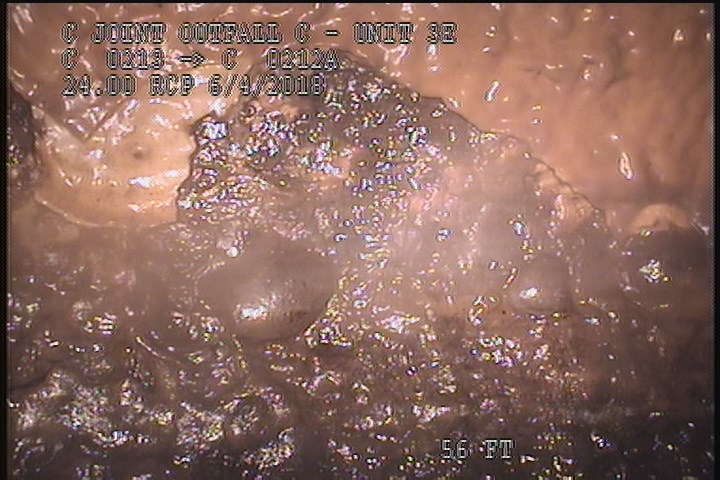

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT

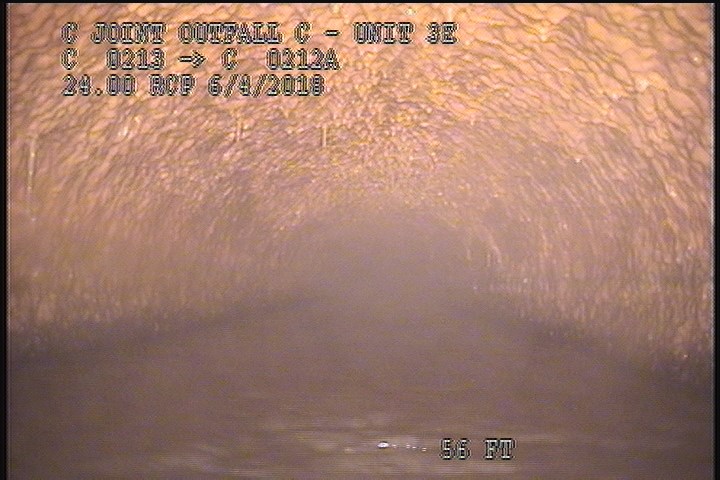

2 ft. - General Observation - 100% MAG COAT START 8:00 TO 4:00
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 81.2 | MGO | MAG COAT 100% FINISH |
| 2 | SSS | BLISTERING PEELING CONCRETE UNDER MAG COAT |
| 2.4 | MGO | HOT SEWAGE |
| 81.2 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 81.2 | SSS | BLISTERING PEELING CONCRETE UNDER MAG COAT |
| 2 | MGO | 100% MAG COAT START 8:00 TO 4:00 |
| 0 | MWL | — |
| 0 | AMH | 4:00AM |
| 81.7 | AMH | 4:10AM |
Properties (6)
- custom_field_three
- BLISTERING PEELING CONCRETE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-04T03:00:55-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,YOUNG
- is_lateral_inspection
- false
