Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 7, 2018, 12:22 PM

  • 02 0005A_02 0005_672018_052430.mp4

Date
06/07/2018
W/O
0707270
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00234
PipeID
P03031
Time
5:22 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0884
Sewer Name
02 ARTESIA EXTENSION TRUNK
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
38
Purpose
Maintenance Related
Project
20180601MDM_ARTESIA_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 0005A
Downstream MH
02 0005
Dir. of Survey
Downstream
Length Surveyed
11.9 ft.
Total Length
11.9 ft.
Structural Index
3
Structural Quick
3322
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 02 0005A to 02 0005
MH: 02 0005AMH: 02 0005downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:25AM0 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. MGO - General Observation - 21" VCP2.1 ft. FC - Fracture Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES - HAIRLINE2.1 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - HAIRLINE2.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H4.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H8.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL11.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active11.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. STOPLOG IN PLACE11.9 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (2)

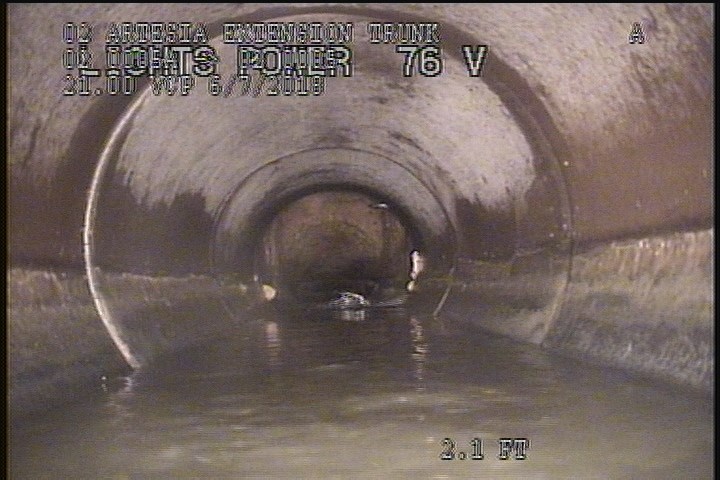

  • General Observation - 21" VCP

    2 ft. - General Observation - 21" VCP

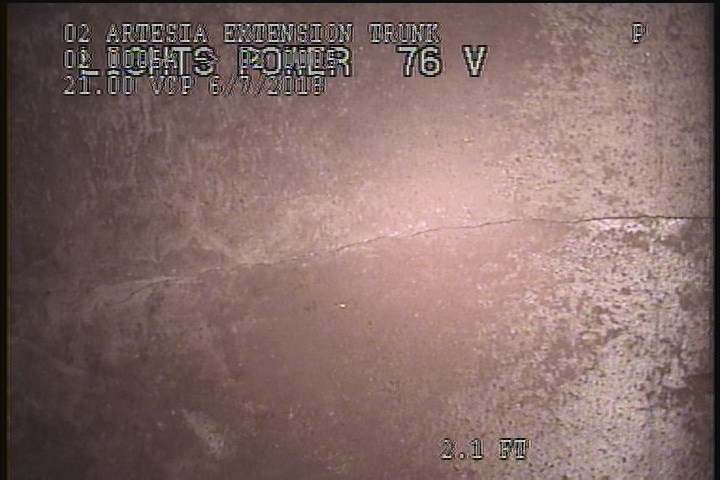

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H

    2.1 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H

All inspections of P03031Work order 0707270

Observations (12)

DistanceCodeObservation
11.5MGOConn. @ Mh, 3 O' Clock. Active
0MWL—
0AMH5:25AM
11.5MGOConn. @ Mh, 9 O' Clock. STOPLOG IN PLACE
2MGO21" VCP
8.7FLSL
2.1FCHAIRLINE
0MWM—
2.1FCHAIRLINE
2.1FLH
4.7FLH
11.9AMH5:35AM

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-06-07T05:22:33-07:00
documentation
MARTIN,REVELES,OLIVER 111
is_lateral_inspection
false
