Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 6, 2018, 07:27 AM

  • 02 0019_02 0018_662018_004803.mp4

Date
06/06/2018
W/O
0707271
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00234
PipeID
P03046
Time
12:27 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0882
Sewer Name
02 ARTESIA EXTENSION TRUNK
City
BELLFLOWER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
20180601MDM_ARTESIA_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0018
Downstream MH
02 0019
Dir. of Survey
Upstream
Length Surveyed
322.9 ft.
Total Length
322.9 ft.
Structural Index
2
Structural Quick
372D
Structural Rating
67
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
69
Pipe schematic from manhole 02 0018 to 02 0019
MH: 02 0018MH: 02 0019upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:25AM0.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% HAIRLINE AT JOINTS0.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE AT JOINTS0.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped0.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 15% SLIGHT AT JOINTS0.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% SLIGHT AT JOINTS70.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H76.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H78.7 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open79.6 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 02 to 04 o'clock, , within 8 inches of joint: YES80.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open94.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H101.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H133.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT169.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL186 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open188.5 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open256.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL256.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS256.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS256.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS256.3 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL256.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS258.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H258.8 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL262.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL265.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL265.2 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL268.2 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL268.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H268.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL270.9 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL270.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL274.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL281 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open284 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active285.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL288.2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H288.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL291.2 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL291.2 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL306 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL306 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H312.1 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE314.9 ft. MGO - General Observation - 18" VCP315 ft. FC - Fracture Circumferential, from 08 to 01 o'clock, within 8 inches of joint: YES - SL318.5 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT322.9 ft. AMH - Downstream Manhole, Survey Begins - 12:30AM322.9 ft. MWM - Water Mark, 20 %of cross sectional area322.9 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (4)

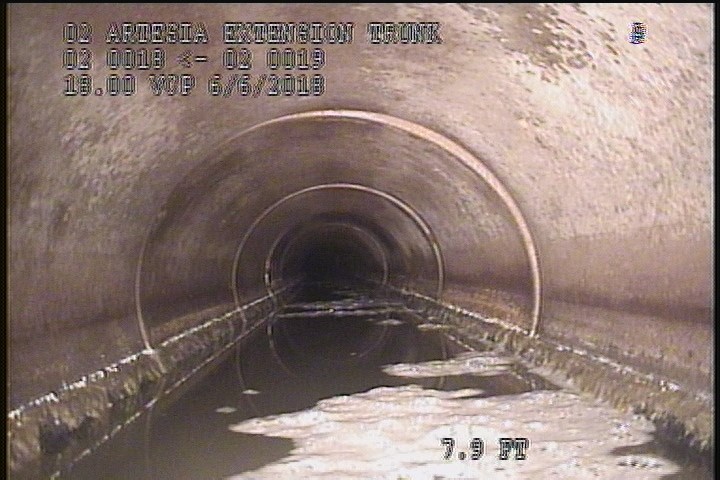

  • General Observation - 18" VCP

    8 ft. - General Observation - 18" VCP

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL

    153.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    221.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    246 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P03046Work order 0707271

Observations (51)

DistanceCodeObservation
0AMH12:30AM
16.9FCSL
48.6FCSL
322.6FC80% HAIRLINE AT JOINTS
38.9TFActive
322.6FL20% HAIRLINE AT JOINTS
228.7FLH
37.7FCSL
322.6MGOConn. @ Mh, 3 O' Clock. Capped
60.6FCSL
54.7FCSL
57.7FCSL
322.6MGOConn. @ Mh, 9 O' Clock. Capped
64.1FLH
16.9FCH
189.8FLSLIGHT
243.3DAGS—
66.6FCSL
66.6FCHAIRLINE AT JOINTS
54.7FLH
10.8FCHAIRLINE
52FCSL
322.9AMH1:25AM
66.6FLHAIRLINE AT JOINTS
66.6FCSLIGHT AT JOINTS
153.8FLSL
252.3FLH
7.9FCSL
54.7FCSL
31.7FCSL
8MGO18" VCP
4.4FCSLIGHT
221.6FLH
66.6FCSL
244.2TFOpen
57.7FCSL
34.7FCH
322.6FL15% SLIGHT AT JOINTS
66.6FLSLIGHT AT JOINTS
134.4TFOpen
0MWM—
136.9TFOpen
0MWL—
322.6FC80% SLIGHT AT JOINTS
34.7FCSL
41.9TFOpen
242TFOpen
64.1FCSL
31.7FCSL
246FLH
52FCSL

Properties (7)

additional_info
REVERSE INSPECTION
custom_field_three
SLIGHT & HAIRLINE FRACTURES JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-06-06T00:27:10-07:00
documentation
MARTIN,REVELES,OLIVER 111,YOUNG
is_lateral_inspection
false
