Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 11:13 AM
02 0028_02 0027_612018_053028.mp4
- Date
- 06/01/2018
- W/O
- 0706686
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00234
- PipeID
- P03059
- Time
- 4:13 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0877
- Sewer Name
- 02 ARTESIA EXTENSION TRUNK
- City
- BELLFLOWER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- 20180601MDM_ARTESIA_EXTENSION_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 02 0028
- Downstream MH
- 02 0027
- Dir. of Survey
- Downstream
- Length Surveyed
- 38.9 ft.
- Total Length
- 38.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 5231
- O&M Rating
- 13
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

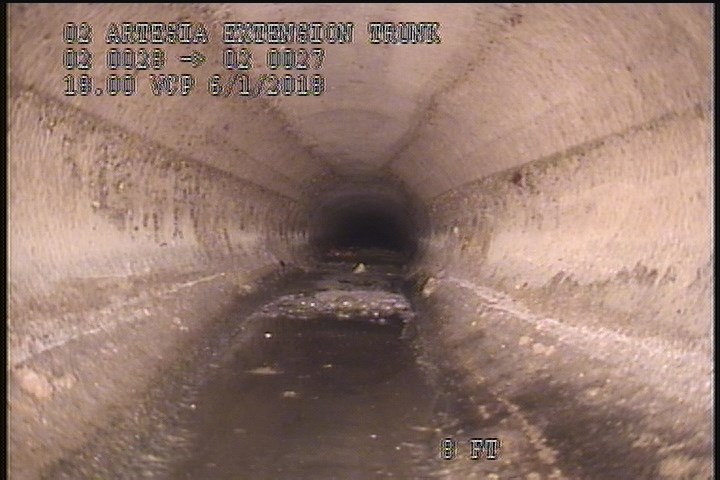

8 ft. - General Observation - 18" VCP & CIPP

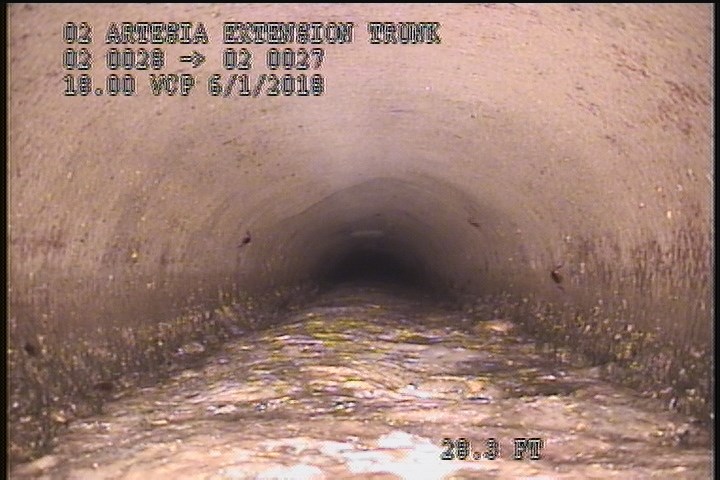

15.4 ft. - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE

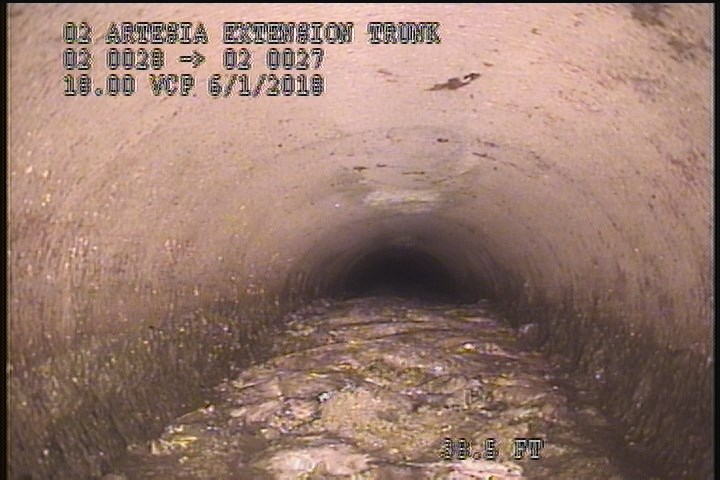

38.5 ft. - Deposits Settled Other, 50 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES - SLUDGE

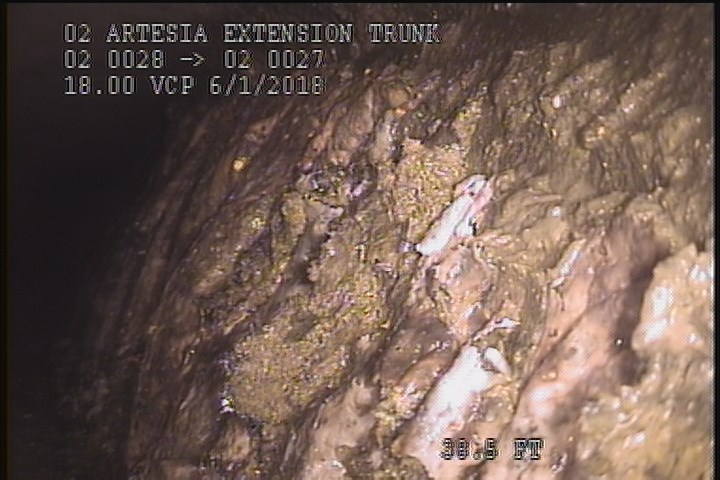

38.5 ft. - Deposits Settled Other, 50 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: NO - SLUDGE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 38.1 | DSZ | SLUDGE |
| 38.5 | DSZ | SLUDGE |
| 8 | MGO | 18" VCP & CIPP |
| 0 | MWM | — |
| 38.9 | MSA | 50% SLUDGE |
| 0 | AMH | 5:30AM |
| 0 | MWL | — |
| 15.4 | DSZ | SLUDGE |
| 38.5 | DSZ | SLUDGE |
Properties (7)
- custom_field_three
- LINER
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-01T04:13:24-07:00
- documentation
- MARTIN,REVELES,YOUNG
- is_lateral_inspection
- false
- lining
- CIPP
