Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2018, 11:08 AM

  • 02 0029_02 0028_612018_044728.mp4

Date
06/01/2018
W/O
0707271
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00234
PipeID
P03060
Time
4:08 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0877
Sewer Name
02 ARTESIA EXTENSION TRUNK
City
BELLFLOWER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
20180601MDM_ARTESIA_EXTENSION_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
02 0029
Downstream MH
02 0028
Dir. of Survey
Downstream
Length Surveyed
4 ft.
Total Length
4 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
5
O&M Quick
5241
O&M Rating
14
Overall Index
4
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole 02 0029 to 02 0028
MH: 02 0029MH: 02 0028downstream0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - BOTTOM OF MH0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:50AM2 ft. FC - Fracture Circumferential, from 04 to 08 o'clock, within 8 inches of joint: YES - SLIGHT2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE3 ft. FC - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES - SL3.5 ft. MGO - General Observation - SMALL CHIP3.5 ft. DAGS - Deposits Attached Grease, 70 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO4 ft. MSA - Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

Observation photos (4)

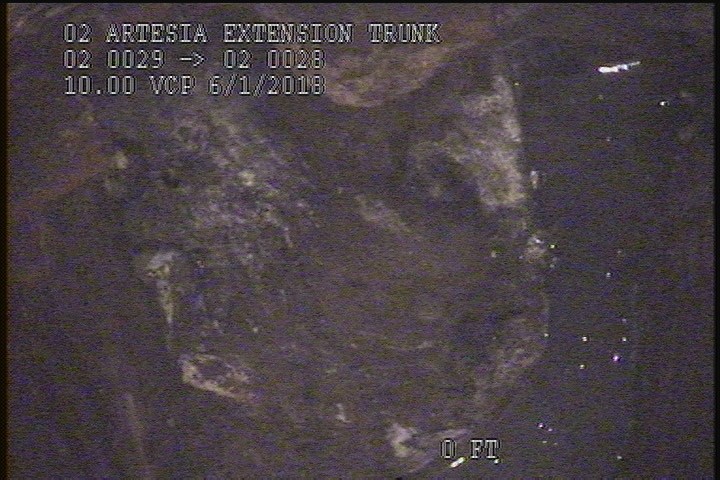

  • Deposits Attached Grease, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - BOTTOM OF MH

    0 ft. - Deposits Attached Grease, 25 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - BOTTOM OF MH

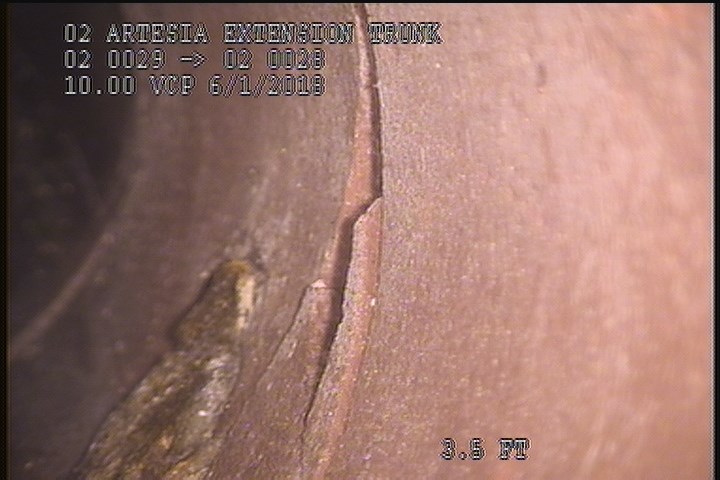

  • General Observation - SMALL CHIP

    3.5 ft. - General Observation - SMALL CHIP

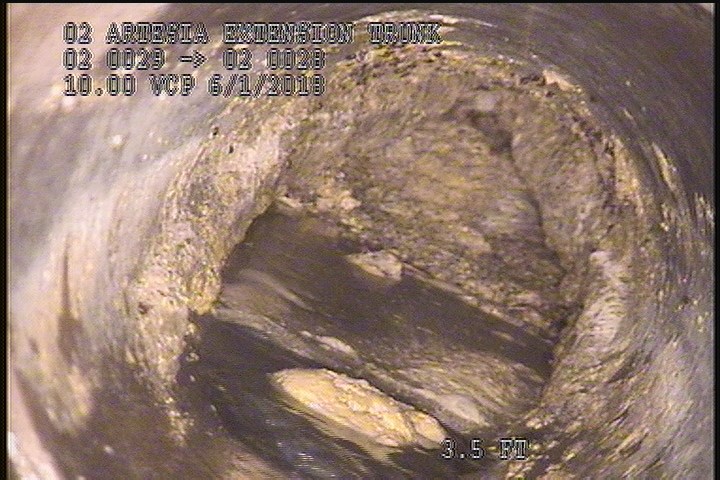

  • Deposits Attached Grease, 70 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

    3.5 ft. - Deposits Attached Grease, 70 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

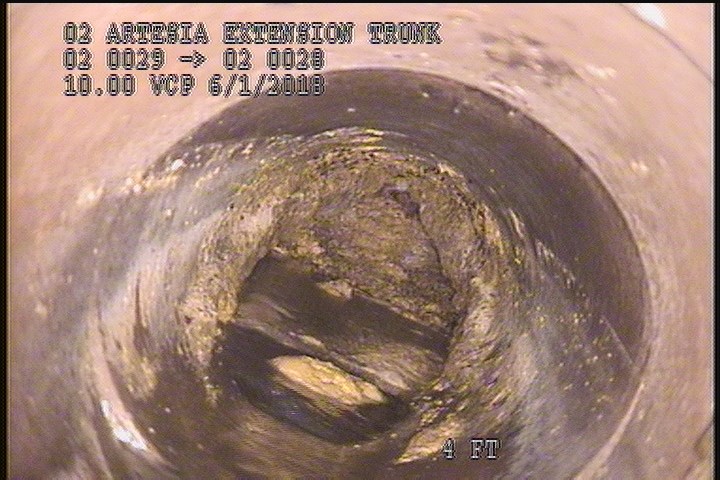

  • Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

    4 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON NORTH

All inspections of P03060Work order 0707271

Observations (10)

DistanceCodeObservation
0MWM—
2FCSLIGHT
3.5MGOSMALL CHIP
0DAGSBOTTOM OF MH
3FCSL
0MWL—
2FLHAIRLINE
4MSADOWNLEG UPSTREAM SIPHON NORTH
0AMH4:50AM
3.5DAGS—

Properties (7)

additional_info
DOWNLEG UPSTREAM SIPHON NORTH
custom_field_three
SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2018-06-01T04:08:02-07:00
documentation
MARTIN,REVELES,YOUNG
is_lateral_inspection
false
