Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 29, 2018, 10:59 AM

  • 15 0108_15 0107 _29032018_040711.mp4

Date
03/29/2018
W/O
1590881
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00590
PipeID
P11986
Time
3:59 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5514
Sewer Name
15 ABBEY STREET TRUNK
City
LA PUENTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
WO_690161_TV15204_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0108
Downstream MH
15 0107
Dir. of Survey
Downstream
Length Surveyed
157.6 ft.
Total Length
157.6 ft.
Structural Index
3
Structural Quick
413E
Structural Rating
96
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
96
Pipe schematic from manhole 15 0108 to 15 0107
MH: 15 0108MH: 15 0107downstream0 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 15 01089.3 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES13.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES41.6 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES56.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"110.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"126.8 ft. FC - Fracture Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES156 ft. MGO - General Observation - 5% GREASE THROUGHOUT THE REACH, FROM 03 TO 09 O'CLOCK157.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish157.6 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK157.6 ft. AMH - Downstream Manhole, Survey Ends - 15 0107

Observation photos (4)

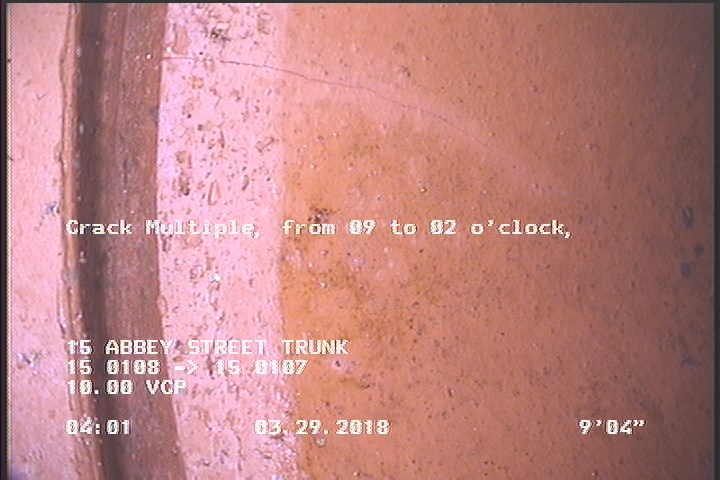

  • Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

    9.3 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

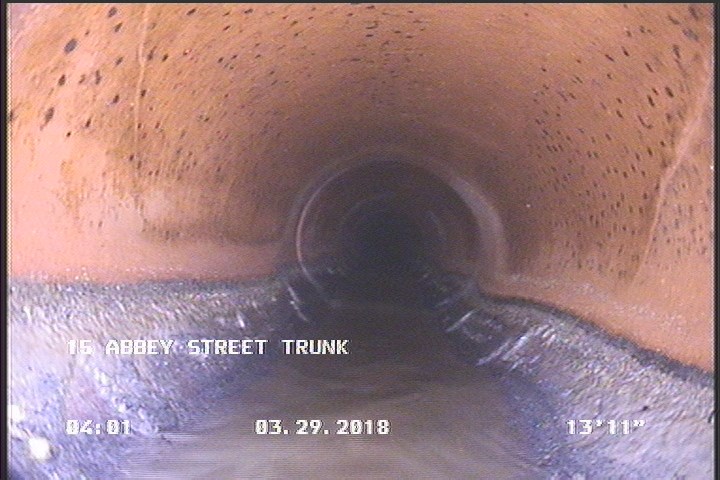

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    13.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

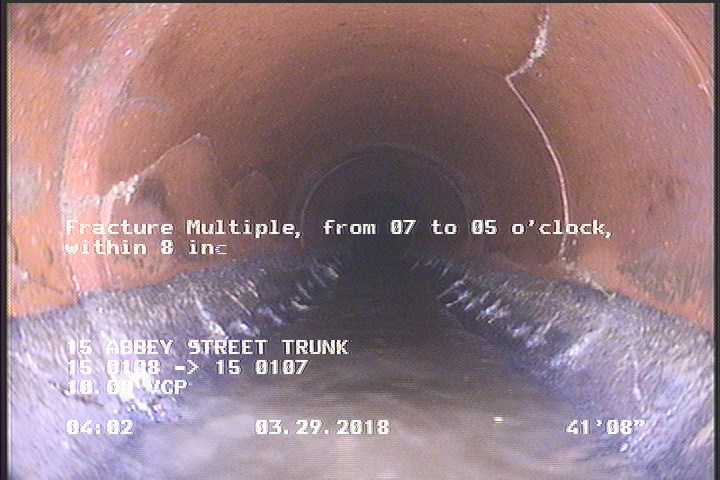

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

    41.6 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

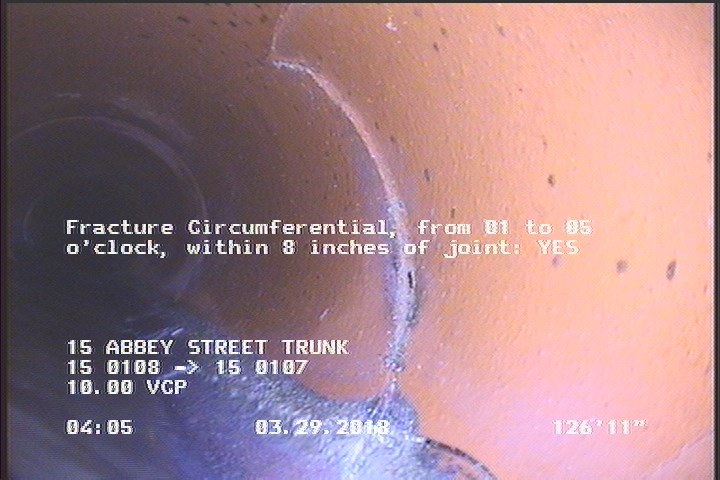

  • Fracture Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

    126.8 ft. - Fracture Circumferential, from 01 to 05 o'clock, within 8 inches of joint: YES

All inspections of P11986Work order 1590881

Observations (15)

DistanceCodeObservation
9.3CM—
13.9CM—
0MGOCONNECTION AT MH 6 O'CLOCK
157.6CM—
126.8FC—
156MGO5% GREASE THROUGHOUT THE REACH, FROM 03 TO 09 O'CLOCK
0MWM—
110.1TF—
157.6MGOCONNECTION AT MH 12 O'CLOCK
0MWL—
157.6AMH15 0107
0MGOCONNECTION AT MH 3 O'CLOCK
0AMH15 0108
41.6FM—
56.5TF—

Properties (6)

additional_info
SC358720
custom_field_two
2
customer
LACSD
datetime
2018-03-29T03:59:03-07:00
documentation
PROPIPE
is_lateral_inspection
false
