Wastewater/Activity/PacpInspection/1.0Jan 13, 2017, 09:52 AM
G 0057_G 0056_13012017_015203.mp4
- Date
- 01/13/2017
- W/O
- 613592
- Weather
- Damp
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00345
- PipeID
- P10420
- Time
- 1:52 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4077
- Sewer Name
- G JOINT OUTFALL G - UNIT 5
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_613592_TV01215_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- G 0056
- Downstream MH
- G 0057
- Dir. of Survey
- Upstream
- Length Surveyed
- 208.6 ft.
- Total Length
- 208.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 514G
- O&M Rating
- 248
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 251
Observation photos (3)

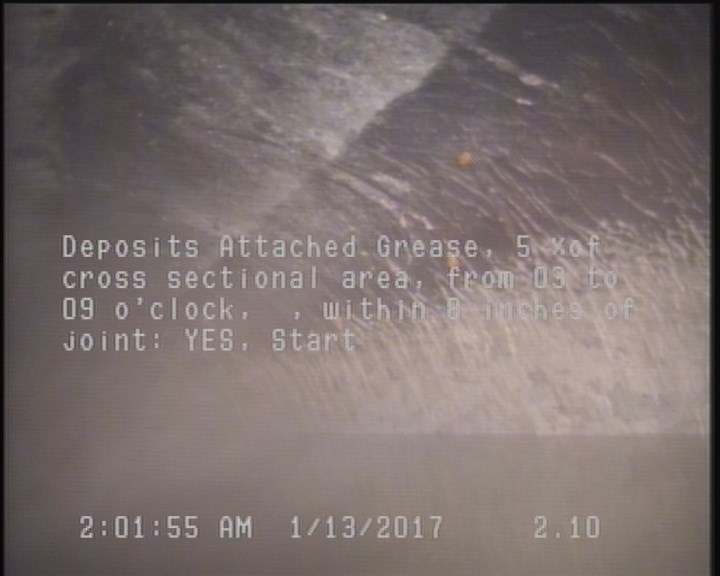

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

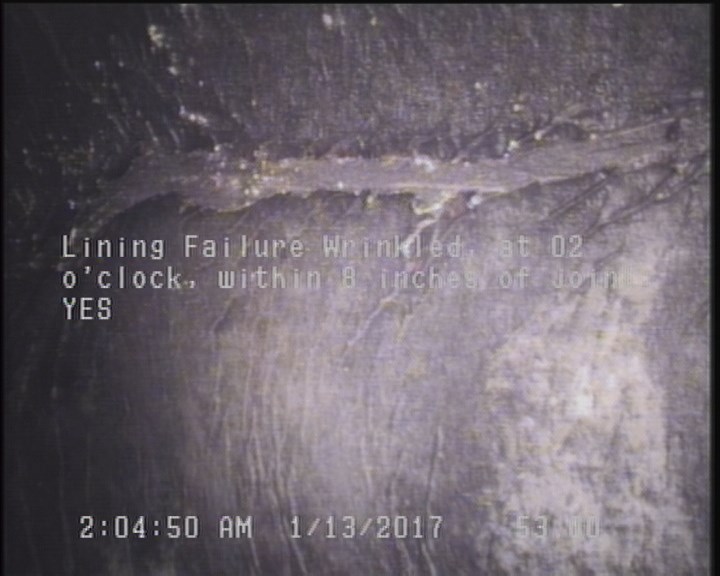

53 ft. - Lining Failure Wrinkled, at 02 o'clock, within 8 inches of joint: YES

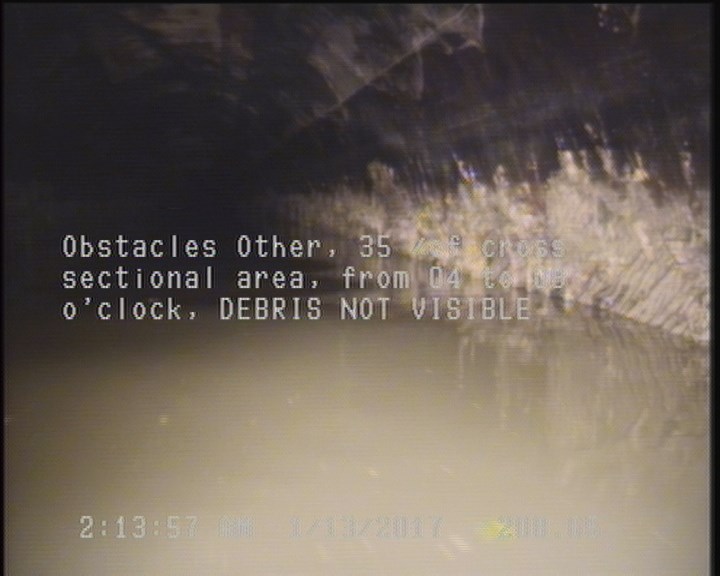

208.7 ft. - Obstacles Other, 35 %of cross sectional area, from 04 to 08 o'clock - DEBRIS NOT VISIBLE
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 9.5 | OBZ | DEBRIS NOT VISIBLE |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 208.7 | MSA | SEVERE DEBRIS 35% NOT VISIBLE |
| 0 | VC | — |
| 0 | AMH | G 0056 |
| 208.7 | DAGS | — |
| 208.7 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | MWM | — |
| 2.1 | DAGS | — |
| 208.7 | OBZ | DEBRIS NOT VISIBLE |
| 208.7 | OBZ | DEBRIS NOT VISIBLE |
| 53 | LFW | — |
Properties (7)
- additional_info
- SC318618
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-01-13T01:52:03-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- lining
- CIPP
