Wastewater/Activity/PacpInspection/1.0Jul 19, 2016, 08:25 AM
16 0706_16 0705 _19072016_012610.mp4
- Date
- 07/19/2016
- W/O
- 582916
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01110
- PipeID
- P22791
- Time
- 1:25 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3616
- Sewer Name
- 16 ALHAMBRA ROAD RELIEF TRUNK, SECTION 2
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_582916_TV16068_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0705
- Downstream MH
- 16 0706
- Dir. of Survey
- Upstream
- Length Surveyed
- 460.6 ft.
- Total Length
- 460.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 182
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 182
Observation photos (1)

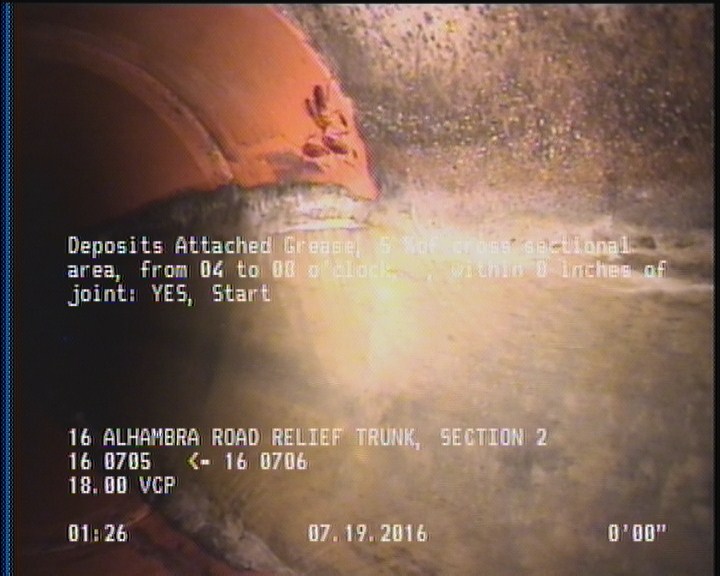

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 460.6 | AMH | 16 0706 |
| 2 | DAGS | — |
| 0 | MWL | — |
| 458.9 | DAGS | — |
| 0 | AMH | 16 0705 |
Properties (7)
- additional_info
- SC305795
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-19T01:25:39-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 36133
