Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 20, 2017, 11:10 AM

  • 03 MARINA_03 0570_6202017_051805.mp4

Date
06/20/2017
W/O
0633592
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00382
PipeID
P05286
Time
4:10 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0567
Sewer Name
03 MARINA RELIEF TRUNK, SECTION 2
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
25
Purpose
Routine Assessment
Project
20170619MDM_MARINA_RELIEF_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
03 MARINA
Downstream MH
03 0570
Dir. of Survey
Downstream
Length Surveyed
10.7 ft.
Total Length
10.7 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 03 MARINA to 03 0570
MH: 03 MARINAMH: 03 0570downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:20AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0.8 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - SLIGHT2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start10.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish10.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active10.7 ft. AMH - Downstream Manhole, Survey Ends - 5:25AM

Observation photos (2)

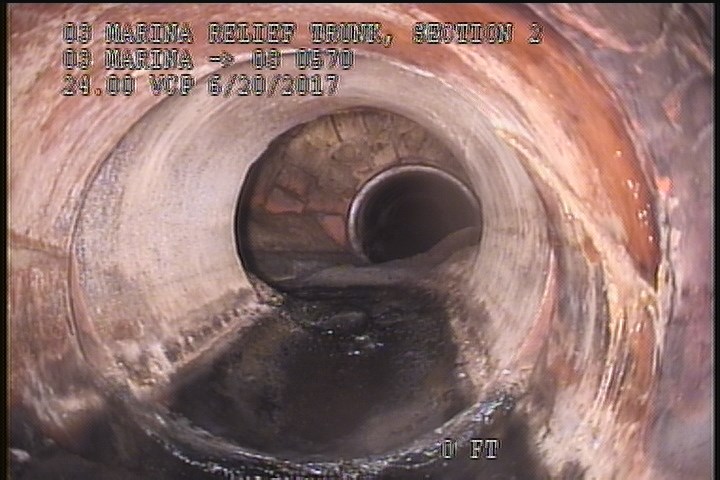

  • General Observation - Conn. @ Mh, 3 O' Clock. OPEN

    0 ft. - General Observation - Conn. @ Mh, 3 O' Clock. OPEN

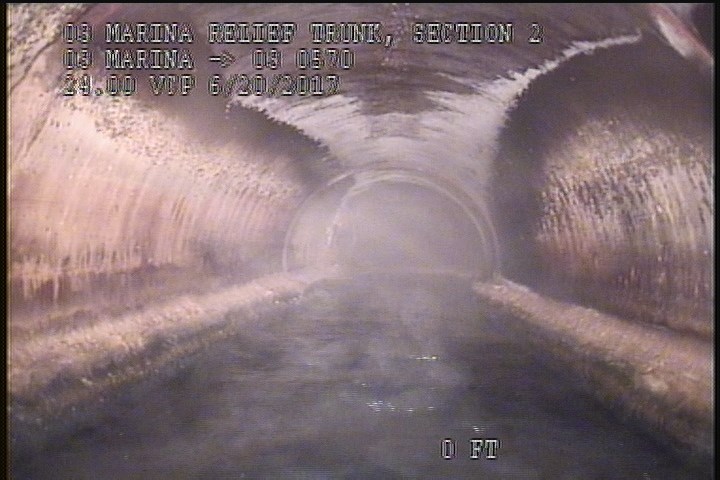

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P05286Work order 0633592

Observations (9)

DistanceCodeObservation
0MWM—
10.1DAGS—
0AMH5:20AM
2DAGS—
0MWL—
10.1MGOConn. @ Mh, 3 O' Clock. Active
0MGOConn. @ Mh, 3 O' Clock. OPEN
10.7AMH5:25AM
0.8FCSLIGHT

Properties (6)

custom_field_three
SLIGHT FRACTURE
custom_field_two
4
customer
LACSD
datetime
2017-06-20T04:10:03-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
