Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 14, 2017, 08:26 AM

  • 05 1702_05 1701_2142017_021629.mp4

Date
02/14/2017
W/O
0607779
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00471
PipeID
P06928
Time
12:26 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO443
Sewer Name
LOMITA TRUNK
City
LOMITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
32
Purpose
Capital Improvement Program Assesment
Project
20170210MDM_LOMITA_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
05 1702
Downstream MH
05 1701
Dir. of Survey
Downstream
Length Surveyed
478.7 ft.
Total Length
478.7 ft.
Structural Index
2
Structural Quick
342F
Structural Rating
78
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
82
Pipe schematic from manhole 05 1702 to 05 1701
MH: 05 1702MH: 05 1701downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:15AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 12 O' Clock. Active IN STACK4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open11 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE11.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H13.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT15.4 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SLIGHT20.4 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H26 ft. FC - Fracture Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES - SL34.5 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL34.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL38.5 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL38.5 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - SL54.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL56.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL59.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL64.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H69.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL81.3 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL104.6 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL104.6 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL114.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H114.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL120 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT120 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT123.5 ft. FC - Fracture Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES - SL125 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - BRICK PIECIES127.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish - SL127.7 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Finish - SL127.7 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H127.7 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL130.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL136.4 ft. FC - Fracture Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES - SL142.9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL146.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL150.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL150.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H152.3 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT152.3 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS152.3 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS152.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS152.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS217 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - BRICK PIECIES326.1 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - SL478.4 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% SLIGHT478.4 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE478.4 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 5% HAIRLINE478.4 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 5% SLIGHT478.7 ft. AMH - Downstream Manhole, Survey Ends - 3:25AM

Observation photos (2)

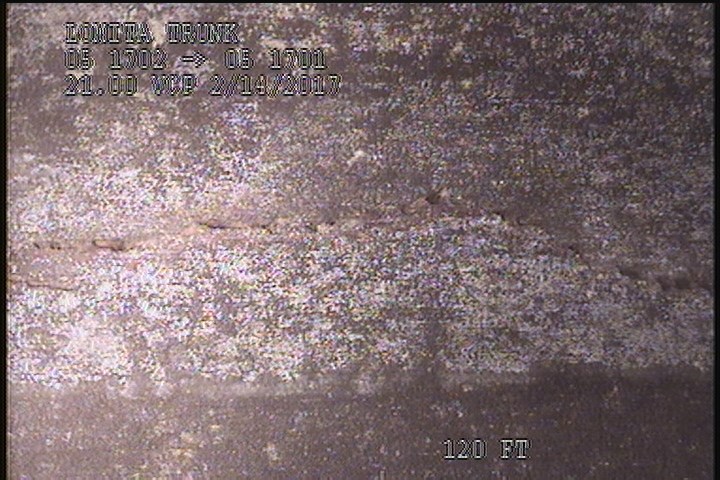

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    120 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

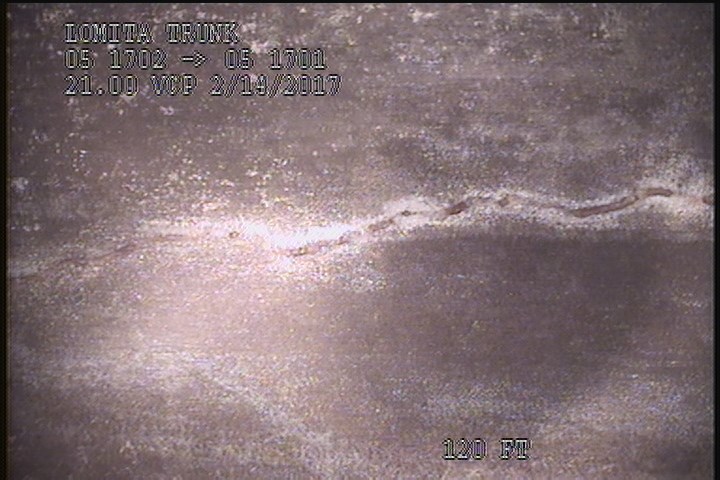

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    120 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P06928Work order 0607779

Observations (51)

DistanceCodeObservation
136.4FCSL
127.7FLSL
130.1FCSL
59.6FCSL
11FCHAIRLINE
114.5FCH
81.3FCSL
38.5FCSL
34.5FCSL
20.4FCH
478.4FC70% SLIGHT
152.3FCSLIGHT
120FLSLIGHT
150.1FCSL
217DSZBRICK PIECIES
127.7FLSL
152.3FLSLIGHT AT JOINTS
4TFOpen
478.7AMH3:25AM
69.7FCSL
11.9FCH
114.5FCSL
34.5FCSL
123.5FCSL
0MWM—
104.6FCSL
127.7FCH
13.1FCSLIGHT
125DSZBRICK PIECIES
0AMH2:15AM
478.4FC20% HAIRLINE
54.6FCSL
0MWL—
478.4FL5% HAIRLINE
127.7FCSL
38.5FCSL
56.6FCSL
64.6FCH
152.3FLHAIRLINE AT JOINTS
326.1FCSL
120FLSLIGHT
478.4FL5% SLIGHT
104.6FCSL
0MGOConn. @ Mh, 12 O' Clock. Active IN STACK
152.3FCSLIGHT AT JOINTS
142.9FCSL
26FCSL
15.4FCSLIGHT
152.3FCHAIRLINE AT JOINTS
150.1FCH
146.4FCSL

Properties (6)

custom_field_three
SLIGHT LONG FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2017-02-14T00:26:35-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
