Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 13, 2017, 10:35 AM

  • 05 1714_05 1713_2132017_024000.mp4

Date
02/13/2017
W/O
0607779
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00471
PipeID
P06941
Time
2:35 AM
Certificate
1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO441
Sewer Name
LOMITA TRUNK
City
LOMITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
32
Purpose
Capital Improvement Program Assesment
Project
20170210MDM_LOMITA_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
05 1714
Downstream MH
05 1713
Dir. of Survey
Downstream
Length Surveyed
288.6 ft.
Total Length
288.6 ft.
Structural Index
2
Structural Quick
3425
Structural Rating
22
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 05 1714 to 05 1713
MH: 05 1714MH: 05 1713downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:35AM2.5 ft. FS - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES, Start - SLIGHT5.4 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT32 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL34.6 ft. MGP - General Photograph - SPIRIAL IN GREASE LINE71.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H71.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL111 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL118.1 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: NO - SLIGHT118.8 ft. FS - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES - SL134.9 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H288.2 ft. FS - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES, Finish288.2 ft. FS - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Finish288.6 ft. AMH - Downstream Manhole, Survey Ends - 3:05AM

Observation photos (5)

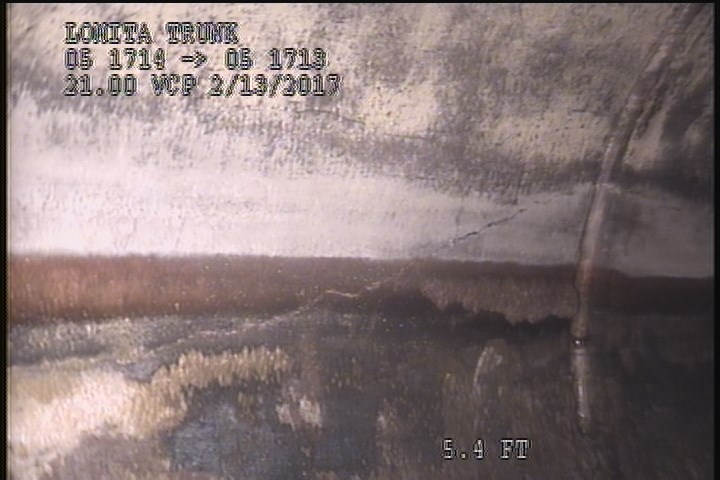

  • Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    2.5 ft. - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES, Start - SLIGHT

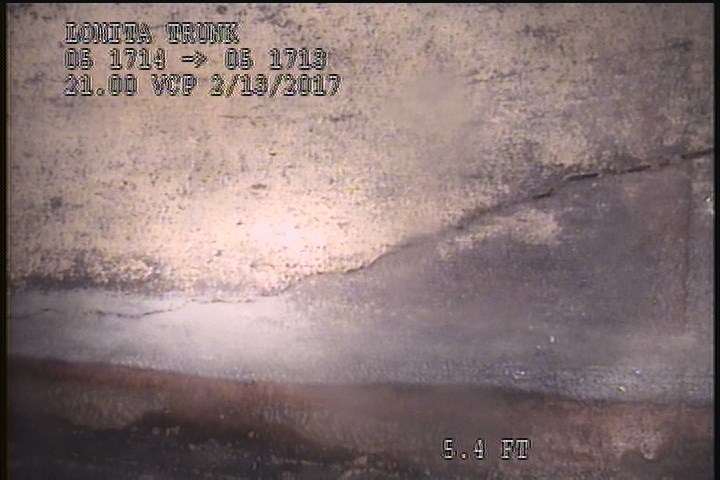

  • Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    5.4 ft. - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT

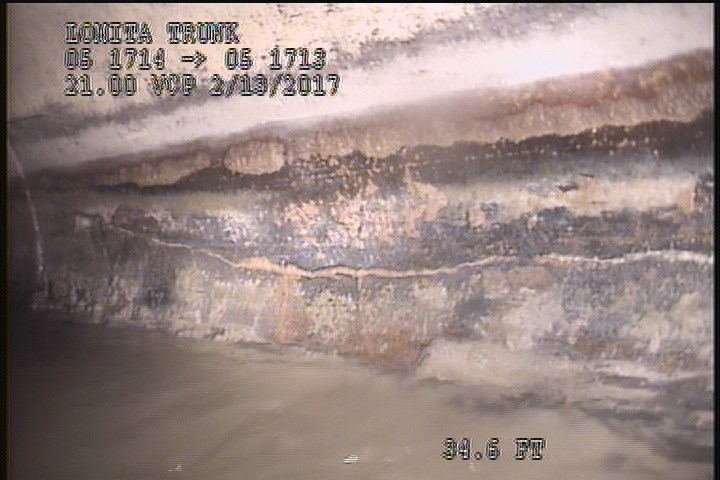

  • General Photograph - SPIRIAL IN GREASE LINE

    34.6 ft. - General Photograph - SPIRIAL IN GREASE LINE

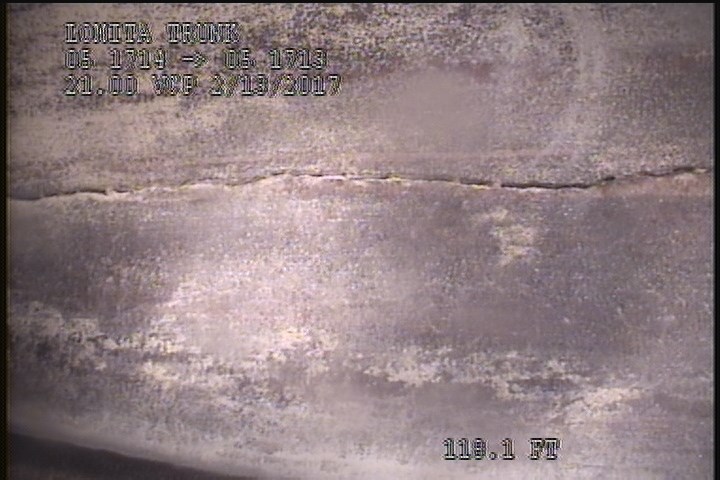

  • Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: NO - SLIGHT

    118.1 ft. - Fracture Spiral, from 01 to 04 o'clock, within 8 inches of joint: NO - SLIGHT

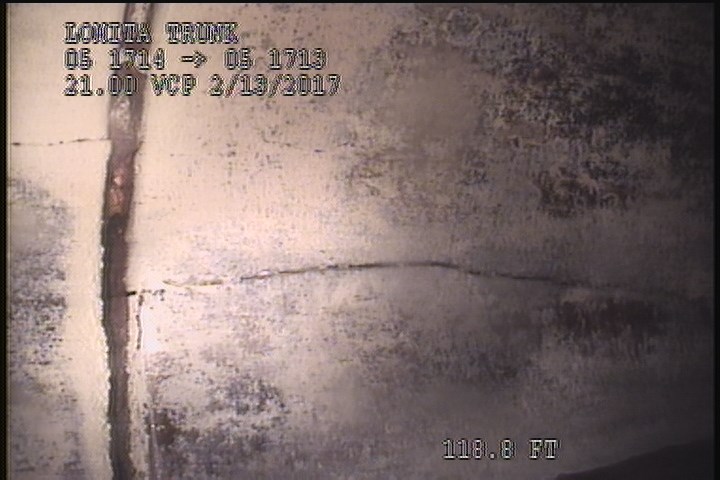

  • Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES - SL

    118.8 ft. - Fracture Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES - SL

All inspections of P06941Work order 0607779

Observations (16)

DistanceCodeObservation
118.1FSSLIGHT
2.5FSSLIGHT
0MWL—
111FCSL
0MWM—
118.8FSSL
288.2FS—
34.6MGPSPIRIAL IN GREASE LINE
288.2FS—
71.1FCH
288.6AMH3:05AM
71.1FCSL
32FCSL
0AMH2:35AM
5.4FSSLIGHT
134.9FCH

Properties (6)

custom_field_three
SLIGHT SPRIAL JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2017-02-13T02:35:00-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
