Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 21, 2016, 04:00 PM

  • A 0313_A 0312_10212016_090324.mp4

Date
10/21/2016
W/O
0602873
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00325
PipeID
P08223
Time
9:00 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7253
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
20161020AM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
A 0313
Downstream MH
A 0312
Dir. of Survey
Downstream
Length Surveyed
85.1 ft.
Total Length
85.1 ft.
Structural Index
1
Structural Quick
1100
Structural Rating
1
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
1
Overall Quick
—
Overall Rating
1
Pipe schematic from manhole A 0313 to A 0312
MH: A 0313MH: A 0312downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:02 AM0 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE2 ft. MMC - Material Change, Other (state in comments) - POSSIBLE FIBERGLASS LINER9 ft. MGO - General Observation - CRACKING AT THE JOINT9.2 ft. JSM - Joint Separated Medium67.6 ft. MGO - General Observation - 20% MAG COAT/DEBRIS @ THE BOTTOM OF THE PIPE, START84.8 ft. MGO - General Observation - 20% MAG COAT/DEBRIS @ THE BOTTOM OF THE PIPE, FINISH85.1 ft. AMH - Downstream Manhole, Survey Ends - 9:14 AM

Observation photos (4)

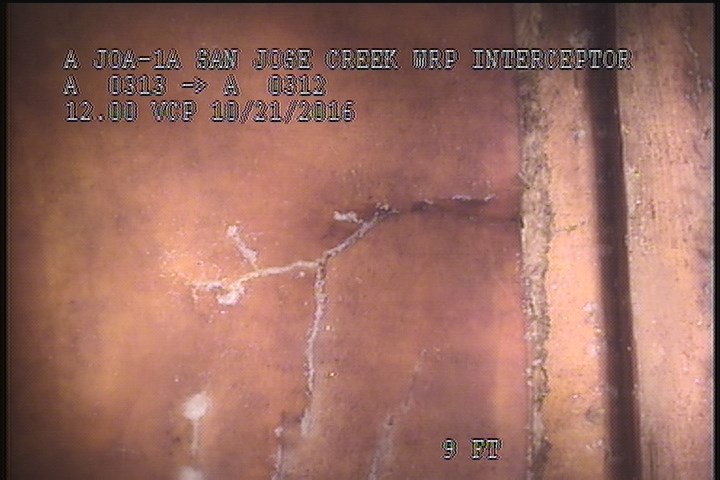

  • General Observation - CRACKING AT THE JOINT

    9 ft. - General Observation - CRACKING AT THE JOINT

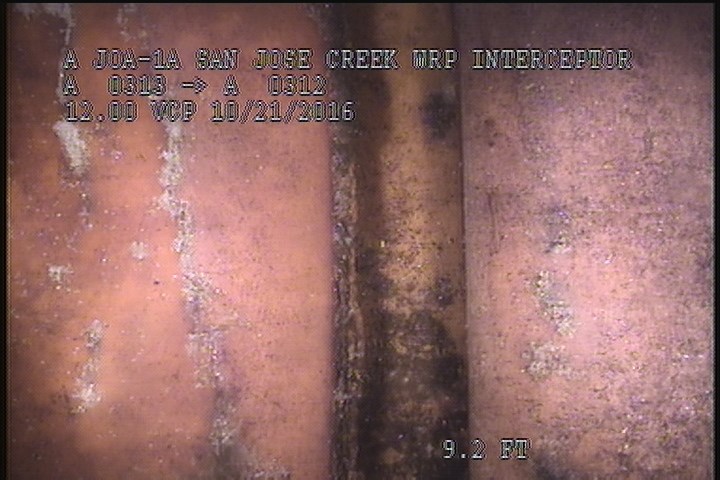

  • Joint Separated Medium

    9.2 ft. - Joint Separated Medium

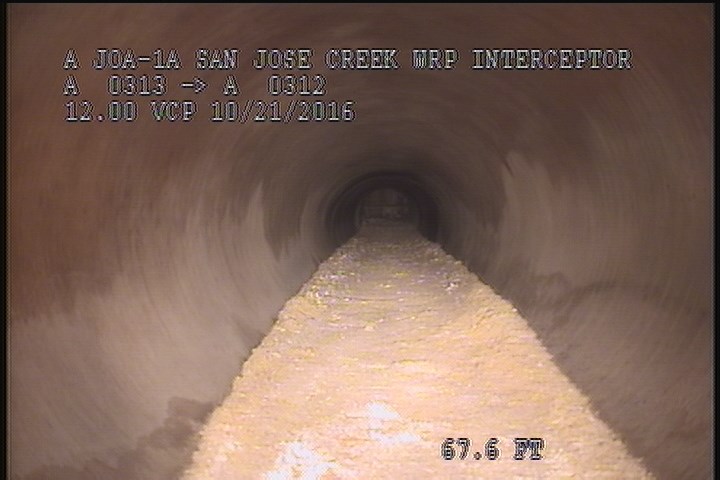

  • General Observation - 20% MAG COAT/DEBRIS @ THE BOTTOM OF THE PIPE, START

    67.6 ft. - General Observation - 20% MAG COAT/DEBRIS @ THE BOTTOM OF THE PIPE, START

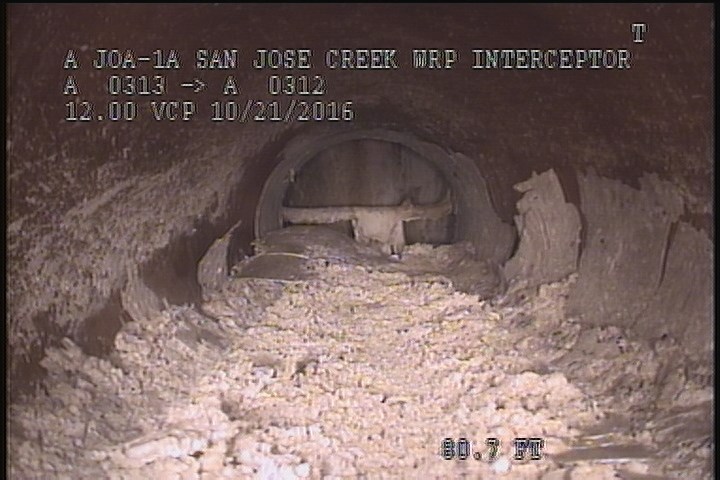

  • General Observation - 20% MAG COAT/DEBRIS @ THE BOTTOM OF THE PIPE, FINISH

    84.8 ft. - General Observation - 20% MAG COAT/DEBRIS @ THE BOTTOM OF THE PIPE, FINISH

All inspections of P08223Work order 0602873

Observations (8)

DistanceCodeObservation
9MGOCRACKING AT THE JOINT
9.2JSM—
0AMH9:02 AM
67.6MGO20% MAG COAT/DEBRIS @ THE BOTTOM OF THE PIPE, START
85.1AMH9:14 AM
2MMCPOSSIBLE FIBERGLASS LINER
84.8MGO20% MAG COAT/DEBRIS @ THE BOTTOM OF THE PIPE, FINISH
0MWLDRY LINE

Properties (6)

additional_info
AIRLINE INSPECTION ONLY
custom_field_two
3
customer
LACSD
datetime
2016-10-21T09:00:29-07:00
documentation
MIRANDA, FRANKLIN, SHADLER, BRAR
is_lateral_inspection
false
