Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 20, 2016, 05:24 PM

  • A 0324_A 0323_10202016_103336.mp4

Date
10/20/2016
W/O
0602873
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00325
PipeID
P08234
Time
10:24 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7253
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
22
Purpose
Routine Assessment
Project
20161020AM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
A 0324
Downstream MH
A 0323
Dir. of Survey
Downstream
Length Surveyed
73.7 ft.
Total Length
73.7 ft.
Structural Index
2
Structural Quick
2111
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole A 0324 to A 0323
MH: A 0324MH: A 0323downstream0 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE0 ft. AMH - Upstream Manhole, Survey Begins - 10:33 AM2 ft. MMC - Material Change, Other (state in comments) - POSSIBLE FIBERGLASS LINER33.8 ft. JSL - Joint Separated Large33.8 ft. JOM - Joint Offset Medium70.4 ft. MGO - General Observation - MAG COAT73.6 ft. MGO - General Observation - TEAR/RIP IN THE LINER73.7 ft. AMH - Downstream Manhole, Survey Ends - 10:43 AM

Observation photos (5)

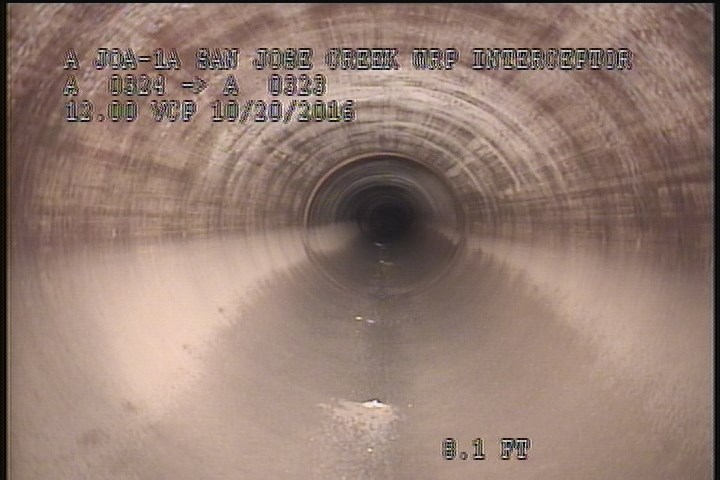

  • Upstream Manhole, Survey Begins - 10:33 AM

    0 ft. - Upstream Manhole, Survey Begins - 10:33 AM

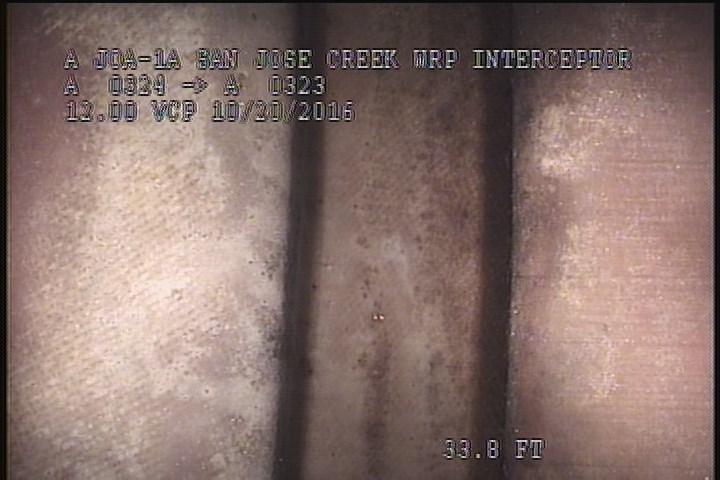

  • Joint Separated Large

    33.8 ft. - Joint Separated Large

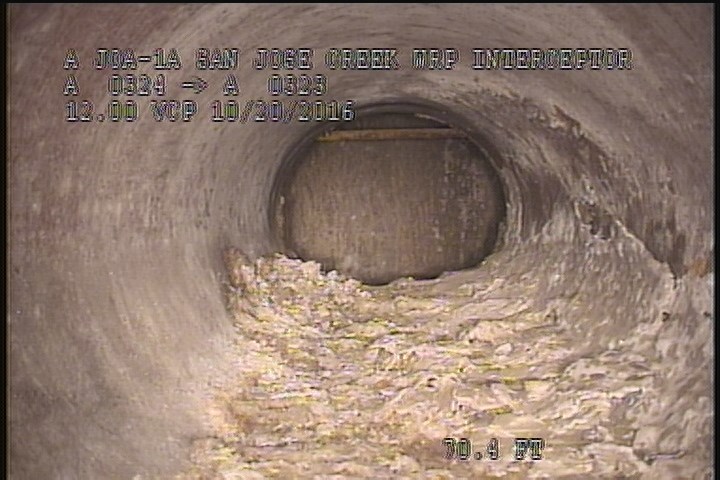

  • General Observation - MAG COAT

    70.4 ft. - General Observation - MAG COAT

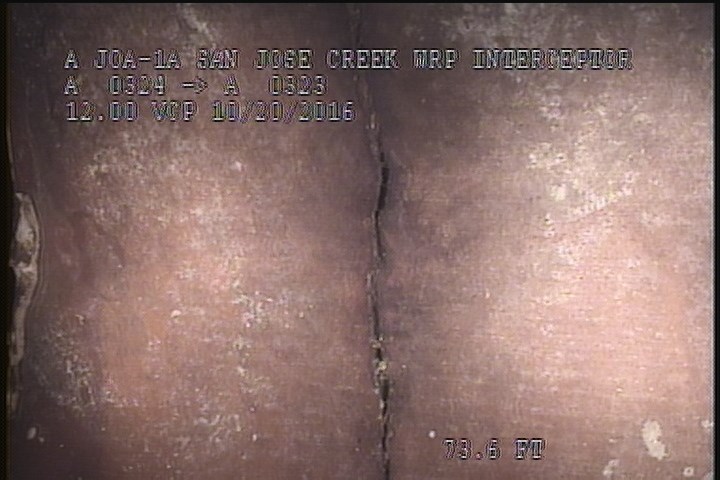

  • General Observation - TEAR/RIP IN THE LINER

    73.6 ft. - General Observation - TEAR/RIP IN THE LINER

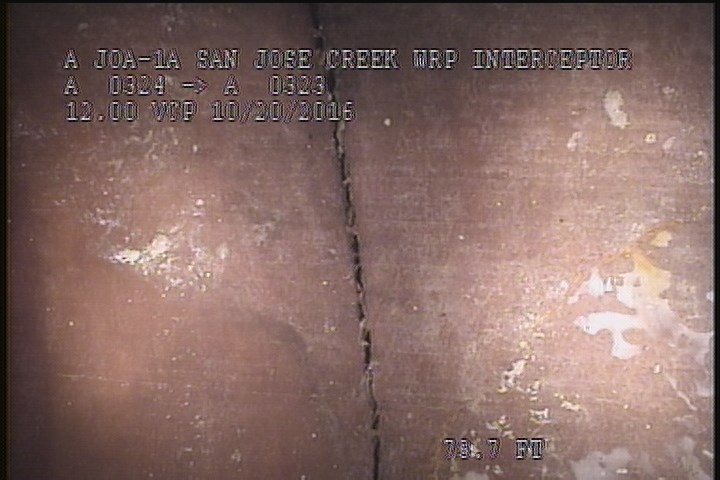

  • Downstream Manhole, Survey Ends - 10:43 AM

    73.7 ft. - Downstream Manhole, Survey Ends - 10:43 AM

All inspections of P08234Work order 0602873

Observations (8)

DistanceCodeObservation
73.7AMH10:43 AM
33.8JSL—
33.8JOM—
2MMCPOSSIBLE FIBERGLASS LINER
73.6MGOTEAR/RIP IN THE LINER
0MWLDRY LINE
0AMH10:33 AM
70.4MGOMAG COAT

Properties (7)

additional_info
AIRLINE INSPECTION ONLY
custom_field_three
TEAR/RIP IN THE LINER AT THE END OF THE REACH
custom_field_two
2
customer
LACSD
datetime
2016-10-20T10:24:01-07:00
documentation
MIRANDA, FRANKLIN, SHADLER, BRAR
is_lateral_inspection
false
