Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 20, 2016, 04:52 PM

  • A 0322_A 0321_10202016_095800.mp4

Date
10/20/2016
W/O
0602873
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00325
PipeID
P08232
Time
9:52 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7253
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
20161020AM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
A 0322
Downstream MH
A 0321
Dir. of Survey
Downstream
Length Surveyed
81.8 ft.
Total Length
81.8 ft.
Structural Index
2
Structural Quick
2212
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole A 0322 to A 0321
MH: A 0322MH: A 0321downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:55 AM0 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE2 ft. MMC - Material Change, Other (state in comments) - POSSIBLE FIBERGLASS LINER11.4 ft. JOL - Joint Offset Large11.4 ft. JSL - Joint Separated Large16.8 ft. MGO - General Observation - POSSIBLE OVERLAPPING/OR A TEAR IN THE LINER, @ 07 O'CLOCK21.6 ft. JOM - Joint Offset Medium21.6 ft. JSM - Joint Separated Medium24.1 ft. MGO - General Observation - LINER TEARING24.9 ft. MGO - General Observation - LINER TEARING @ 12 O'CLOCK34.1 ft. MGO - General Observation - LINER TEARING/RIPPING FROM 07 TO 08 O'CLOCK78.7 ft. MGO - General Observation - MAG COAT PEELING/FLAKING OFF81.8 ft. AMH - Downstream Manhole, Survey Ends - 10:15 AM

Observation photos (9)

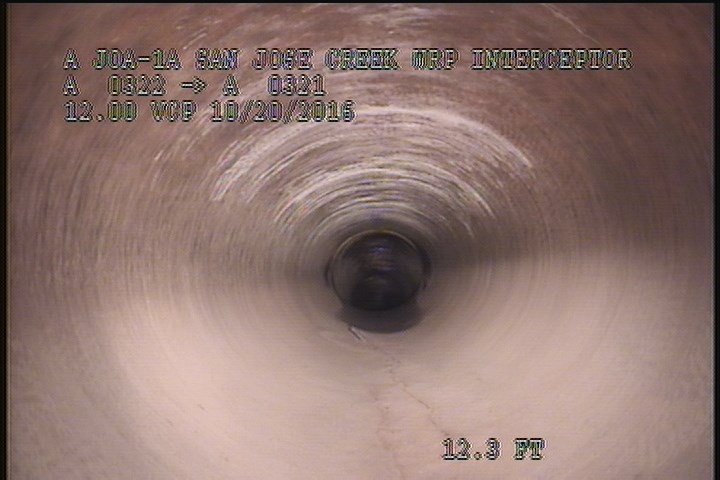

  • Upstream Manhole, Survey Begins - 9:55 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:55 AM

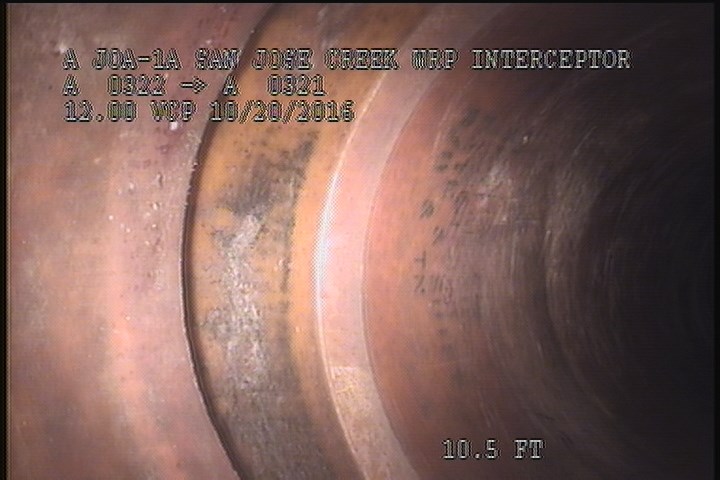

  • Joint Offset Large

    11.4 ft. - Joint Offset Large

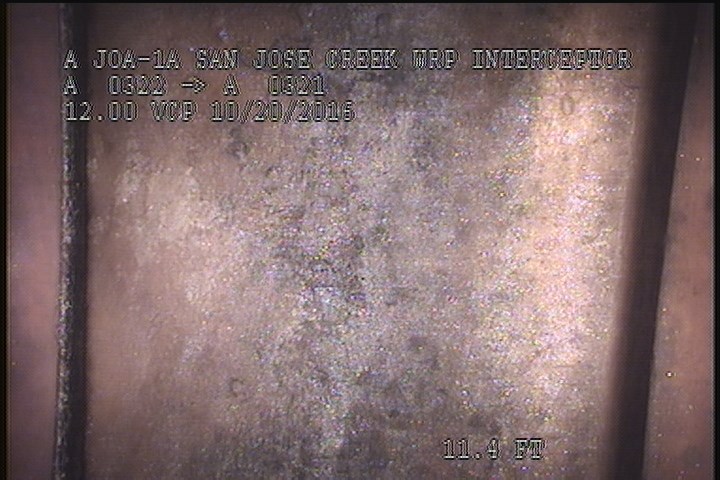

  • Joint Separated Large

    11.4 ft. - Joint Separated Large

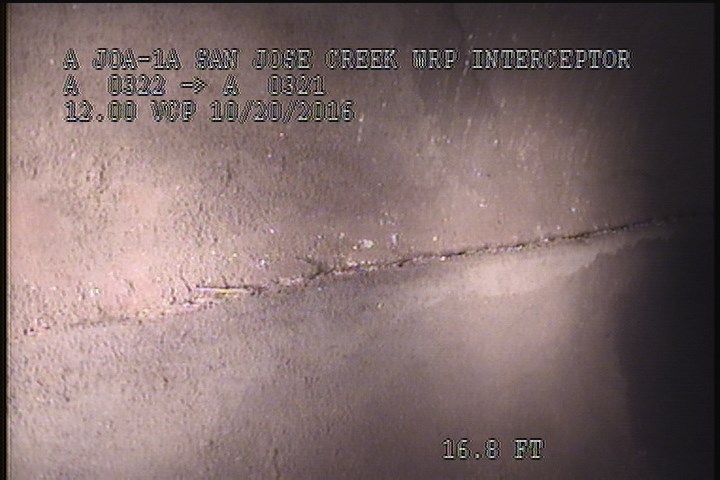

  • General Observation - POSSIBLE OVERLAPPING/OR A TEAR IN THE LINER, @ 07 O'CLOCK

    16.8 ft. - General Observation - POSSIBLE OVERLAPPING/OR A TEAR IN THE LINER, @ 07 O'CLOCK

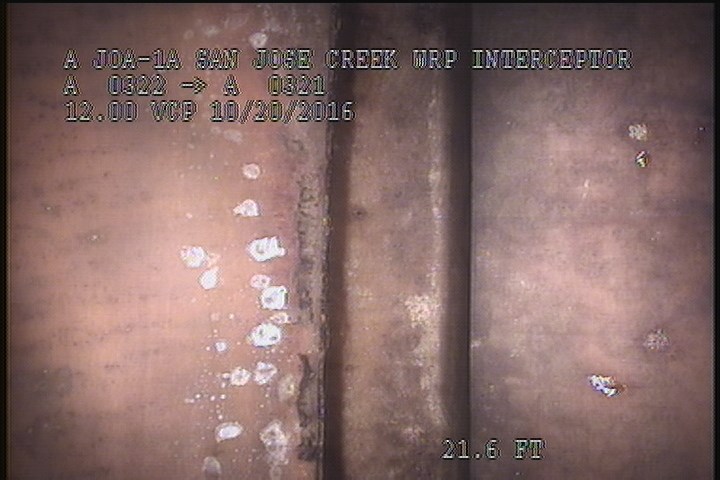

  • Joint Separated Medium

    21.6 ft. - Joint Separated Medium

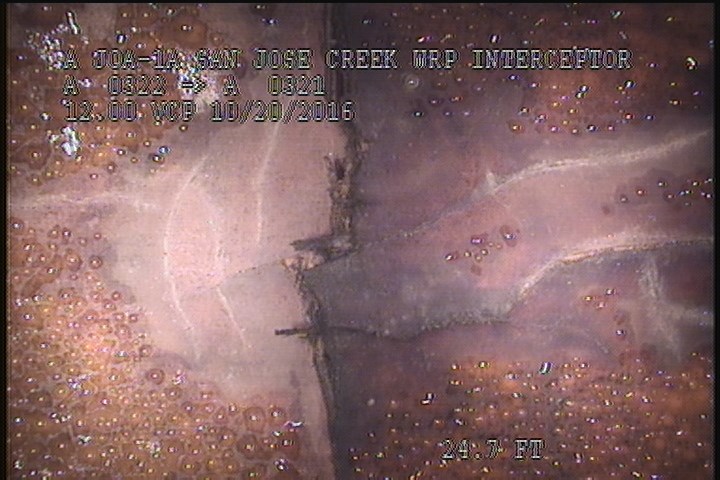

  • General Observation - LINER TEARING

    24.1 ft. - General Observation - LINER TEARING

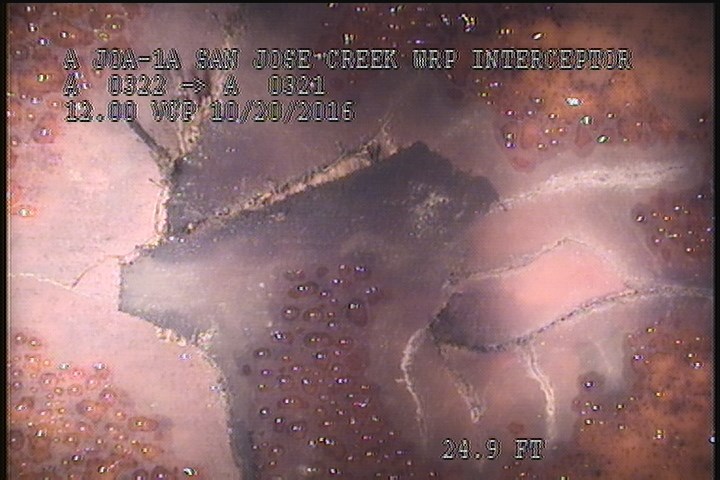

  • General Observation - LINER TEARING @ 12 O'CLOCK

    24.9 ft. - General Observation - LINER TEARING @ 12 O'CLOCK

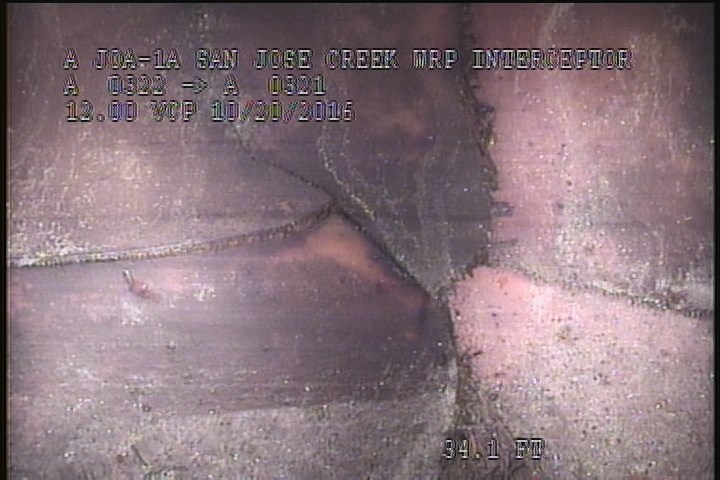

  • General Observation - LINER TEARING/RIPPING FROM 07 TO 08 O'CLOCK

    34.1 ft. - General Observation - LINER TEARING/RIPPING FROM 07 TO 08 O'CLOCK

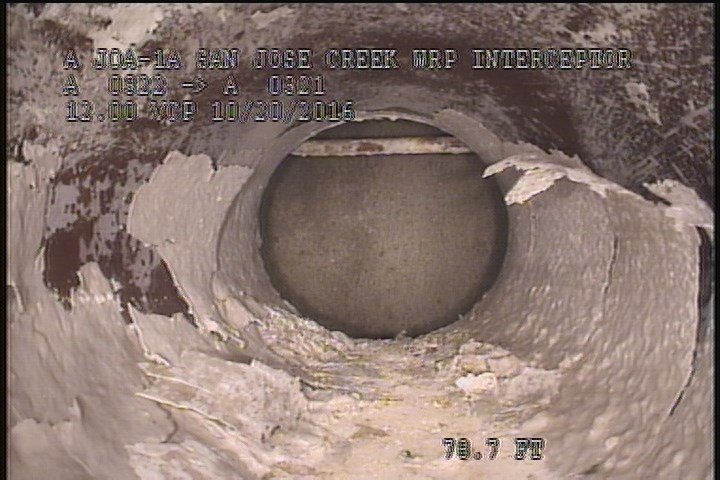

  • General Observation - MAG COAT PEELING/FLAKING OFF

    78.7 ft. - General Observation - MAG COAT PEELING/FLAKING OFF

All inspections of P08232Work order 0602873

Observations (13)

DistanceCodeObservation
21.6JOM—
24.1MGOLINER TEARING
81.8AMH10:15 AM
0AMH9:55 AM
11.4JOL—
0MWLDRY LINE
16.8MGOPOSSIBLE OVERLAPPING/OR A TEAR IN THE LINER, @ 07 O'CLOCK
11.4JSL—
78.7MGOMAG COAT PEELING/FLAKING OFF
21.6JSM—
2MMCPOSSIBLE FIBERGLASS LINER
24.9MGOLINER TEARING @ 12 O'CLOCK
34.1MGOLINER TEARING/RIPPING FROM 07 TO 08 O'CLOCK

Properties (8)

additional_info
AIRLINE INSPECTION ONLY
custom_field_three
LINER TEARING/RIPPING IN AREAS OF THE PIPE
custom_field_two
1
customer
LACSD
datetime
2016-10-20T09:52:06-07:00
documentation
MIRANDA, FRANKLIN, SHADLER, BRAR
is_lateral_inspection
false
year_laid
19800403
