Wastewater/Activity/PacpInspection/1.0Oct 31, 2016, 04:18 PM
02 1892_02 1891_10312016_103825.mp4
- Date
- 10/31/2016
- W/O
- 0602275
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z01172
- PipeID
- P04256
- Time
- 9:18 AM
- Certificate
- U-115-06022628
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7263
- Sewer Name
- 02 DOUGLAS AVENUE RELOCATION TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- 20161031MI_DOUGLAS_AVENUE_RELOCATION_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 02 1892
- Downstream MH
- 02 1891
- Dir. of Survey
- Downstream
- Length Surveyed
- 151.4 ft.
- Total Length
- 151.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

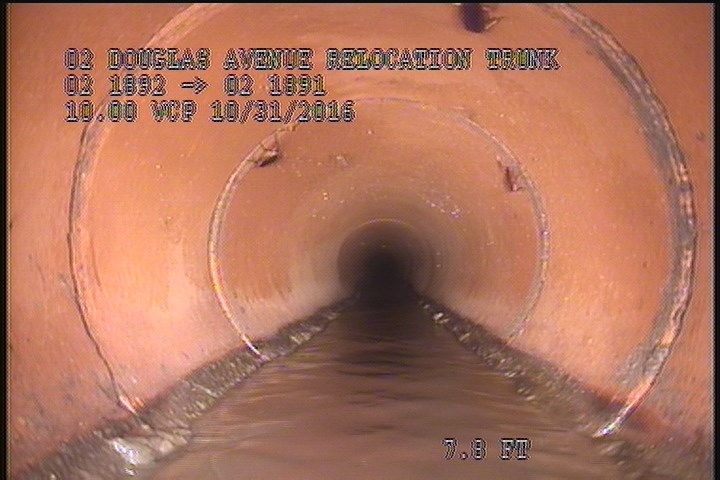

8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

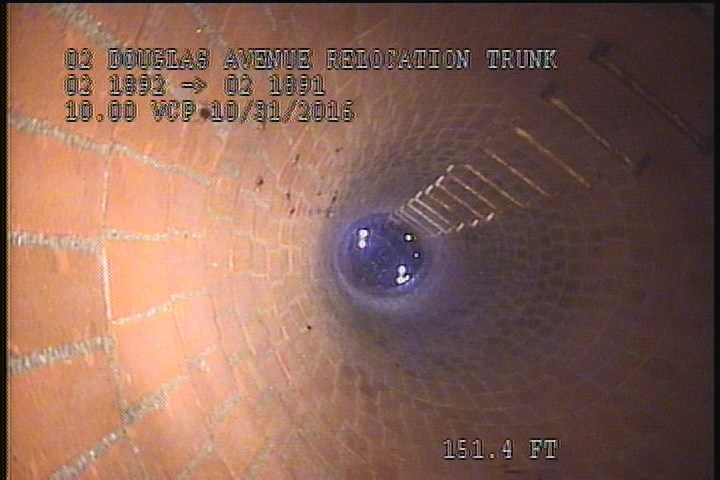

151.4 ft. - Downstream Manhole, Survey Ends - 10:49AM
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 10:36AM |
| 0 | MWM | — |
| 8 | DAGS | — |
| 151.4 | AMH | 10:49AM |
| 35.3 | TFA | — |
| 0 | MWL | — |
| 151.4 | MGO | ROACHES AT MH |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-31T09:18:59-07:00
- documentation
- IGNACIO, FRANKLIN, SHADLER, BRAR
- is_lateral_inspection
- false
