Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 29, 2016, 10:44 AM

  • J 0324_J 0323_10292016_050855.mp4

Date
10/29/2016
W/O
0596859
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00059
PipeID
P11567
Time
3:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6756
Sewer Name
J JOINT OUTFALL J - UNIT 1G
City
PALO VERDES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
10
Purpose
Routine Assessment
Project
20161029_JOINT_OUTFALL_J_UNIT_1G
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
J 0324
Downstream MH
J 0323
Dir. of Survey
Downstream
Length Surveyed
398.8 ft.
Total Length
398.8 ft.
Structural Index
2
Structural Quick
322B
Structural Rating
36
O&M Index
2
O&M Quick
3123
O&M Rating
12
Overall Index
2
Overall Quick
—
Overall Rating
48
Pipe schematic from manhole J 0324 to J 0323
MH: J 0324MH: J 0323downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN2 ft. MGO - General Observation - THIN WHITE SUSTANCE ON PIPE START2 ft. MGP - General Photograph - WHITE SUBSTANCE73.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE74.7 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open 30% ROOTS74.7 ft. RFL - Roots Fine Lateral, at 10 o'clock - 4%78.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE78.7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT83.7 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT88.6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL129.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H129.6 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H135.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open139.3 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL144.9 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - H147.6 ft. MGO - General Observation - 18" VCP185 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL186.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open245.4 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - SL250.6 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 2%252.1 ft. RFL - Roots Fine Lateral, at 10 o'clock - 3%252.1 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active 25% ROOTS256.1 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H296.3 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SL332.2 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H337.4 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - H347.5 ft. RML - Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES347.5 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open 100% ROOTS382.5 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL383 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H384.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open398.2 ft. MGO - General Observation - WHITE SUBSTANCE ON PIPE FINISH398.8 ft. AMH - Downstream Manhole, Survey Ends - 5:50AM

Observation photos (4)

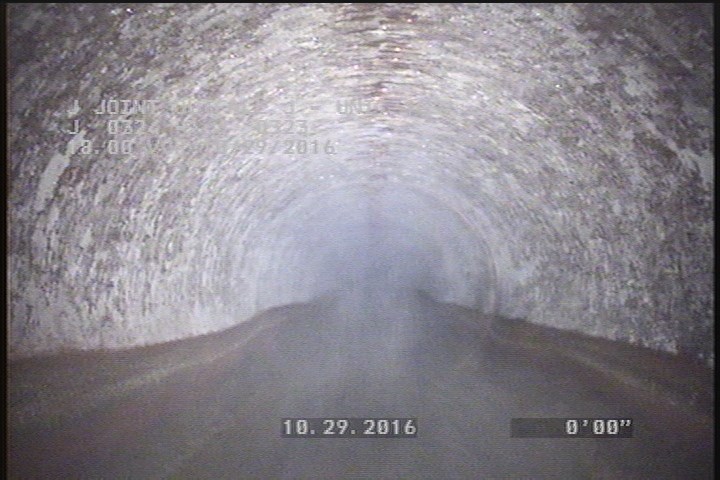

  • General Observation - THIN WHITE SUSTANCE ON PIPE START

    2 ft. - General Observation - THIN WHITE SUSTANCE ON PIPE START

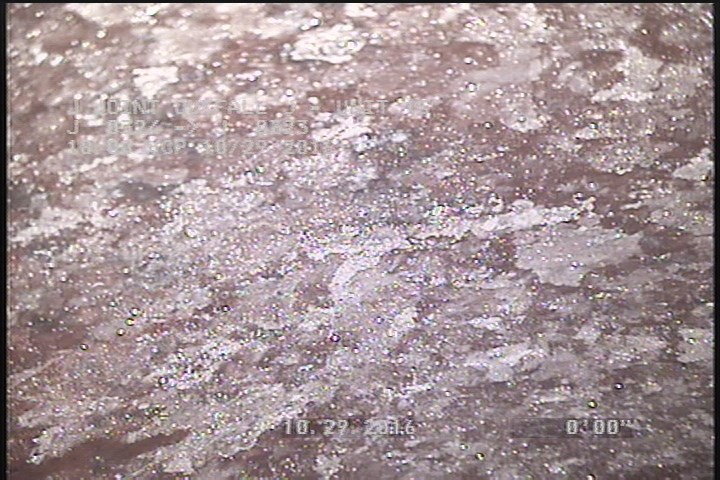

  • General Photograph - WHITE SUBSTANCE

    2 ft. - General Photograph - WHITE SUBSTANCE

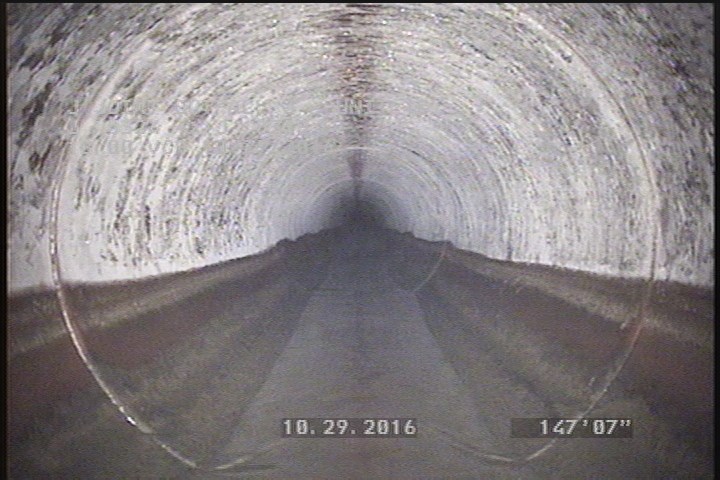

  • General Observation - 18" VCP

    147.6 ft. - General Observation - 18" VCP

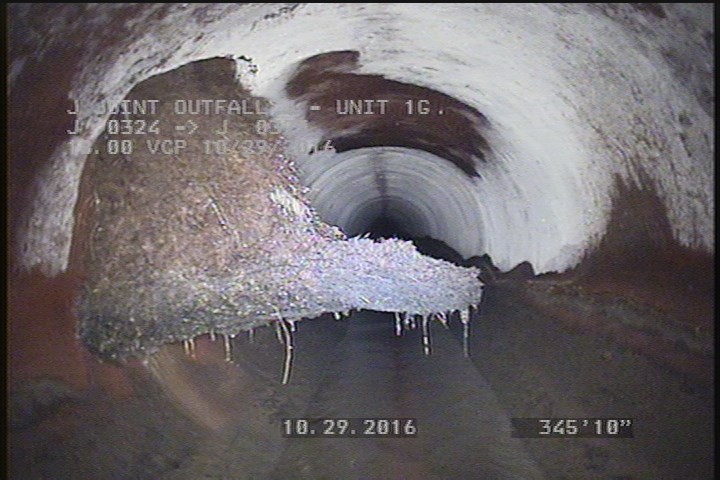

  • Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES

    347.5 ft. - Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES

All inspections of P11567Work order 0596859

Observations (36)

DistanceCodeObservation
296.3FCSL
74.7TFDOpen 30% ROOTS
337.4FCH
135.9TFOpen
0MWL—
245.4FCSL
332.2FCH
74.7RFL4%
129.6FCH
147.6MGO18" VCP
78.7FCHAIRLINE
398.2MGOWHITE SUBSTANCE ON PIPE FINISH
0AMH5:10AM
382.5FLSL
398.8AMH5:50AM
383FCH
73.7FLHAIRLINE
256.1FCH
144.9FCH
2MGOTHIN WHITE SUSTANCE ON PIPE START
185FCSL
129.6FCH
384.4TFOpen
250.6RFJ2%
2MGPWHITE SUBSTANCE
186.3TFOpen
347.5RML—
83.7FCSLIGHT
0MWM—
252.1RFL3%
78.7FCSLIGHT
139.3FCSL
252.1TFDActive 25% ROOTS
347.5TFDOpen 100% ROOTS
88.6FCSL
0MGOConn. @ Mh, 3 O' Clock. OPEN

Properties (6)

custom_field_three
FEW SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2016-10-29T03:44:42-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
