Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 28, 2016, 10:08 AM

  • 16 0376_16 0375_10282016_033807.mp4

Date
10/28/2016
W/O
0596965
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00665
PipeID
P13427
Time
3:08 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6754
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
20161028MDM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
16 0376
Downstream MH
16 0375
Dir. of Survey
Downstream
Length Surveyed
321.7 ft.
Total Length
321.7 ft.
Structural Index
2
Structural Quick
382B
Structural Rating
56
O&M Index
1
O&M Quick
1400
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
60
Pipe schematic from manhole 16 0376 to 16 0375
MH: 16 0376MH: 16 0375downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:40AM0 ft. MWM - Water Mark, 40 %of cross sectional area3 ft. RFJ - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YESR - 3%7.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE7.9 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE8.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT18.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL29.5 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE36 ft. RFJ - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YESR - 2%43.3 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR - 3%46.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL46.9 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H52.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SL52.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H57.7 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT88.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT93.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish103.9 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H103.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H112.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open114.1 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H129.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H132.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL134.8 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL134.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H138.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL138.1 ft. MWM - Water Mark, 30 %of cross sectional area142.6 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL147.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS147.6 ft. FL - Fracture Longitudinal, at 08TO 4 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS147.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS147.6 ft. FL - Fracture Longitudinal, at 08TO 4 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS191.5 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR - 5% OR LESS THROUGHOUT REACH FINISH208.2 ft. MGO - General Observation - 12" VCP214 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped231.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open321.5 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE321.5 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% HAIRLINE321.5 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% SLIGHT321.5 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% SLIGHT321.7 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (2)

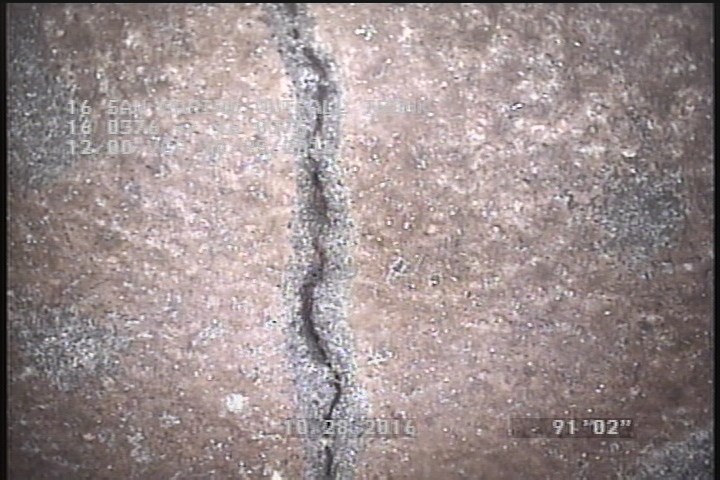

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    88.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

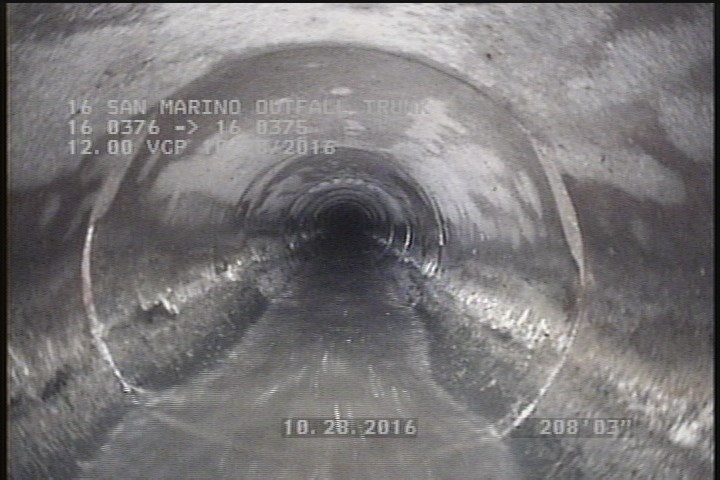

  • General Observation - 12" VCP

    208.2 ft. - General Observation - 12" VCP

All inspections of P13427Work order 0596965

Observations (43)

DistanceCodeObservation
52.2FCSL
43.3RFJ3%
147.6FCHAIRLINE AT JOINTS
138.1FCSL
18.3FLSL
132.2FCSL
46.9FLSL
112.4TFOpen
7.9FLHAIRLINE
57.7FCSLIGHT
231.7TBOpen
134.8FCSL
103.9FCH
321.5FL20% HAIRLINE
208.2MGO12" VCP
321.5FC40% HAIRLINE
7.9FCHAIRLINE
191.5RFJ5% OR LESS THROUGHOUT REACH FINISH
46.9FCH
147.6FLSLIGHT AT JOINTS
8.2FLSLIGHT
147.6FCSLIGHT AT JOINTS
321.5FC60% SLIGHT
134.8FCH
0MGOConn. @ Mh, 9 O' Clock. Active
129.9FLH
147.6FLHAIRLINE AT JOINTS
0MWL—
93.1FL—
321.7AMH4:40AM
36RFJ2%
52.2FCH
103.9FCH
3RFJ3%
114.1FCH
29.5FCHAIRLINE
214TFCCapped
321.5FL20% SLIGHT
138.1MWM—
0AMH3:40AM
0MWM—
142.6FCSL
88.3FLSLIGHT

Properties (6)

custom_field_three
LONG SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-10-28T03:08:55-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
