Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 28, 2016, 08:36 AM

  • 16 0095_16 0083_10282016_024207.mp4

Date
10/28/2016
W/O
0596906
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00641
PipeID
P13134
Time
1:36 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6753
Sewer Name
16 ALLEN AVENUE TRUNK, SECTION 5
City
ALHAMBRA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
20161028MDM_ALLEN_AVENUE_TRUNK_SEVTION_5
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
16 0095
Downstream MH
16 0083
Dir. of Survey
Downstream
Length Surveyed
10.7 ft.
Total Length
10.7 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 16 0095 to 16 0083
MH: 16 0095MH: 16 0083downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:45AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active OUT GOING LINE0 ft. MWM - Water Mark, 50 %of cross sectional area2.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG-MODERATE -SLIGHT2.9 ft. MGO - General Observation - 15" VCP5.6 ft. MGO - General Observation - MAG COAT 80% 9:00 TO 3:0010.1 ft. MGO - General Observation - Conn. @ Mh, 4 O' Clock. Active10.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG10.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active10.7 ft. AMH - Downstream Manhole, Survey Ends - 2:55AM

Observation photos (3)

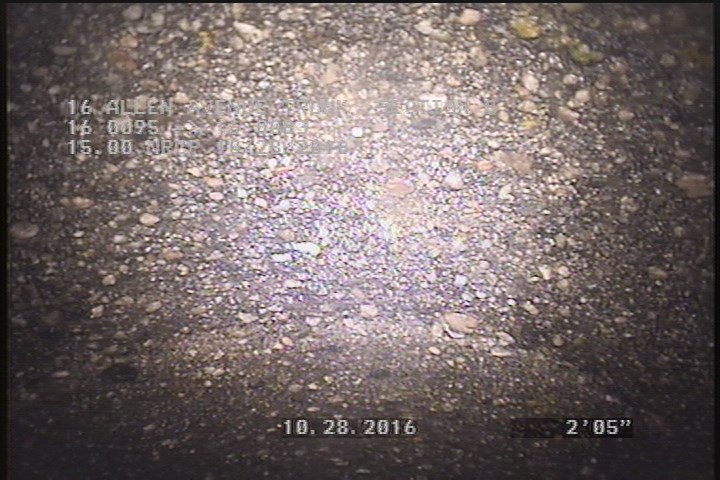

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG-MODERATE -SLIGHT

    2.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG-MODERATE -SLIGHT

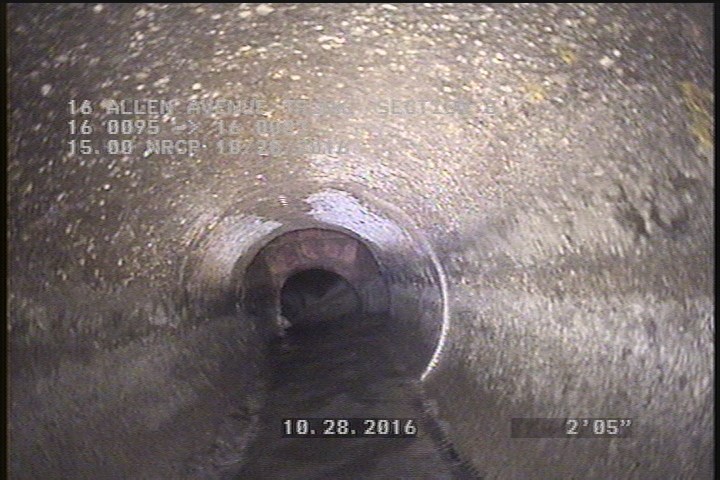

  • General Observation - 15" VCP

    2.9 ft. - General Observation - 15" VCP

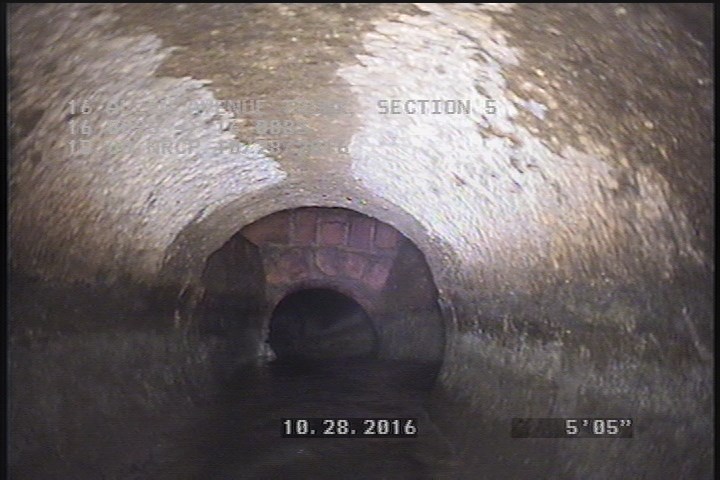

  • General Observation - MAG COAT 80% 9:00 TO 3:00

    5.6 ft. - General Observation - MAG COAT 80% 9:00 TO 3:00

All inspections of P13134Work order 0596906

Observations (11)

DistanceCodeObservation
0AMH2:45AM
0MWL—
10.1MGOConn. @ Mh, 4 O' Clock. Active
10.1SAPSEVERE AGG
0MGOConn. @ Mh, 9 O' Clock. Active OUT GOING LINE
5.6MGOMAG COAT 80% 9:00 TO 3:00
10.1MGOConn. @ Mh, 3 O' Clock. Active
2.1SAPSEVERE AGG-MODERATE -SLIGHT
2.9MGO15" VCP
0MWM—
10.7AMH2:55AM

Properties (6)

custom_field_three
PROJECTING SEVERE AGG
custom_field_two
3
customer
LACSD
datetime
2016-10-28T01:36:16-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
