Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 25, 2016, 08:55 AM

  • 16 0079_16 0078_10252016_022328.mp4

Date
10/25/2016
W/O
0591714
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00639
PipeID
P13093
Time
1:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6747
Sewer Name
16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
City
SAN MARINO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
18
Purpose
Capital Improvement Program Assesment
Project
20161025MDM_ALLEN_AVENUE_TRUNK_SECTS_1_3_4
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
16 0079
Downstream MH
16 0078
Dir. of Survey
Downstream
Length Surveyed
230.8 ft.
Total Length
230.8 ft.
Structural Index
2
Structural Quick
362A
Structural Rating
42
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
42
Pipe schematic from manhole 16 0079 to 16 0078
MH: 16 0079MH: 16 0078downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 2:05AM4 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE36.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open38.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped55.8 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SLIGHT60.9 ft. FC - Fracture Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES - H63.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H68.8 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL71.5 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL71.5 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H76.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL79.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS79.3 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS79.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS79.3 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS85.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped87 ft. FC - Fracture Circumferential, from 08 to 02 o'clock, within 8 inches of joint: YES - MODERATE88.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open93.8 ft. B - Broken, at 12 o'clock, within 8 inches of joint: YES, Start - MODERATE FRACTURE93.8 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE93.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SEVERE93.8 ft. B - Broken, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE FRACTURE-POSSIBLE SOIL VISIBLE97.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - MODERATE97.1 ft. B - Broken, at 12 o'clock, within 8 inches of joint: YES, Finish - MODERATE FRACTURE97.1 ft. B - Broken, at 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE FRACTURE POSSIBLE SOIL VISIBLES97.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - MODERATE97.1 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE -POSSIBLE SOIL VISIBLE137.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open139.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active185.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped188.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped230.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT230.3 ft. FL - Fracture Longitudinal, at 08 TO 4 o'clock, within 8 inches of joint: YES, Finish - 10% SLIGHT230.3 ft. FL - Fracture Longitudinal, at 08 TO 4o'clock, within 8 inches of joint: YES, Finish - 10% HAIRLINE230.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE230.8 ft. AMH - Downstream Manhole, Survey Ends - 2:55AM

Observation photos (6)

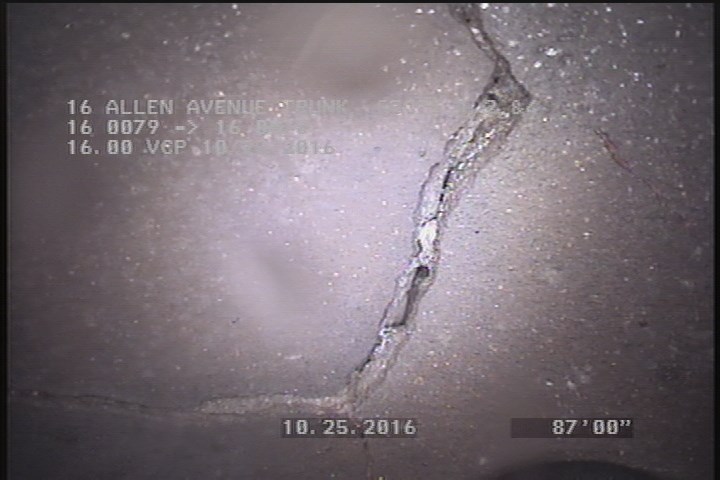

  • Fracture Circumferential, from 08 to 02 o'clock, within 8 inches of joint: YES - MODERATE

    87 ft. - Fracture Circumferential, from 08 to 02 o'clock, within 8 inches of joint: YES - MODERATE

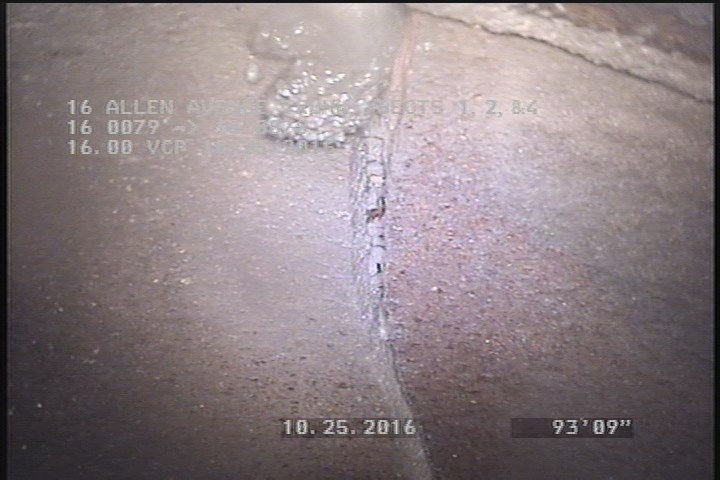

  • Broken, at 12 o'clock, within 8 inches of joint: YES, Start - MODERATE FRACTURE

    93.8 ft. - Broken, at 12 o'clock, within 8 inches of joint: YES, Start - MODERATE FRACTURE

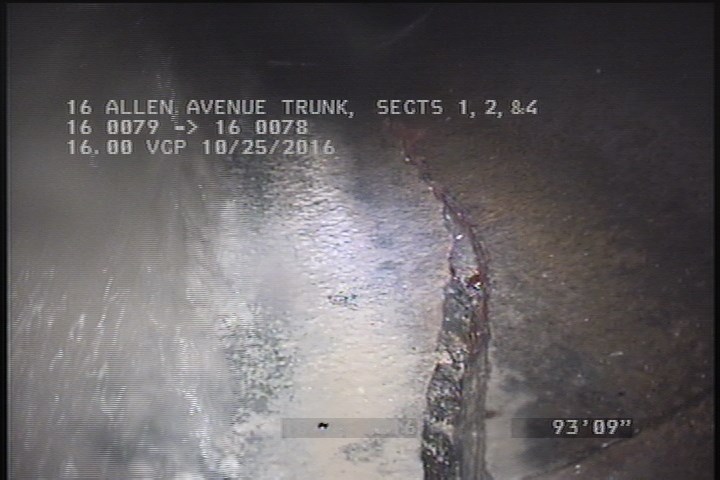

  • Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE

    93.8 ft. - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE

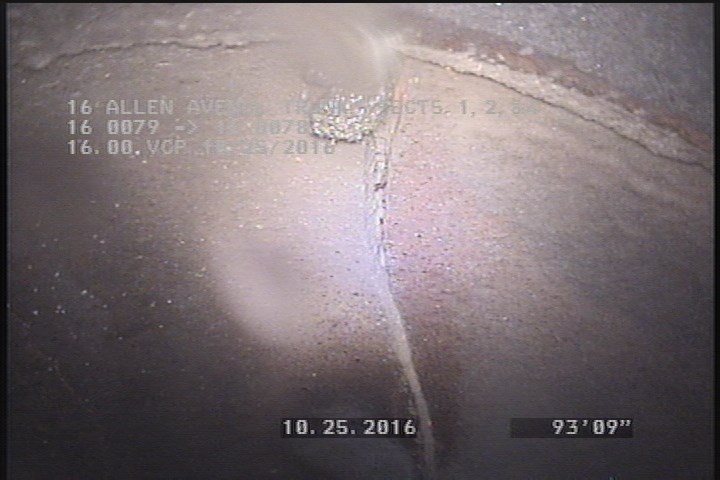

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SEVERE

    93.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SEVERE

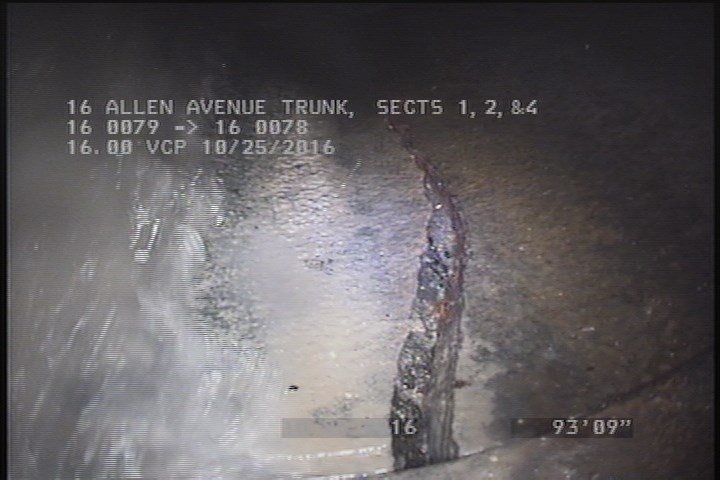

  • Broken, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE FRACTURE-POSSIBLE SOIL VISIBLE

    93.8 ft. - Broken, at 04 o'clock, within 8 inches of joint: YES, Start - SEVERE FRACTURE-POSSIBLE SOIL VISIBLE

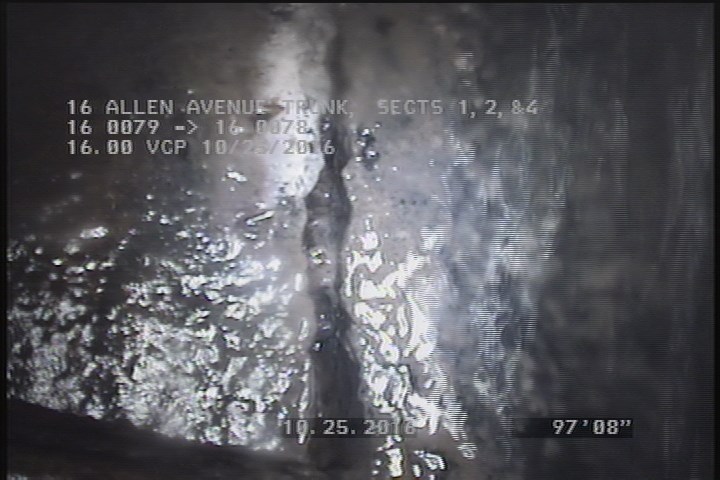

  • Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - MODERATE

    97.1 ft. - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - MODERATE

All inspections of P13093Work order 0591714

Observations (39)

DistanceCodeObservation
188.5TFCCapped
88.3TFOpen
71.5FCSL
60.9FCH
79.3FCHAIRLINE AT JOINTS
230.8AMH2:55AM
97.1FCMODERATE
137.3TFOpen
4FCHAIRLINE
0MWM—
93.8BMODERATE FRACTURE
93.8FLSEVERE
68.8FCSL
38.7TFCCapped
36.3TFOpen
79.3FLSLIGHT AT JOINTS
230.3FC30% SLIGHT
230.3FL10% SLIGHT
230.3FL10% HAIRLINE
0MWL—
55.8FCSLIGHT
93.8FLSEVERE
87FCMODERATE
0MGOConn. @ Mh, 9 O' Clock. Active
0AMH2:05AM
97.1BMODERATE FRACTURE
79.3FCSLIGHT AT JOINTS
185.8TFCCapped
97.1BSEVERE FRACTURE POSSIBLE SOIL VISIBLES
139.4TFActive
76.9FCSL
79.3FLHAIRLINE AT JOINTS
97.1FLMODERATE
63.7FCH
97.1FLSEVERE -POSSIBLE SOIL VISIBLE
230.3FC20% HAIRLINE
85.5TFCCapped
93.8BSEVERE FRACTURE-POSSIBLE SOIL VISIBLE
71.5FCH

Properties (6)

custom_field_three
BROKEN PIPE POSSIBLE SOIL VISIBLE
custom_field_two
1
customer
LACSD
datetime
2016-10-25T01:55:08-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
