Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 25, 2016, 11:30 AM

  • 16 0106_16 0105_10252016_043724.mp4

Date
10/25/2016
W/O
0596906
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00641
PipeID
P13144
Time
4:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6748
Sewer Name
16 ALLEN AVENUE TRUNK, SECTION 5
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
20161025MDM_ALLEN_AVENUE_TRUNK_SECTION_5
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
16 0106
Downstream MH
16 0105
Dir. of Survey
Downstream
Length Surveyed
322.8 ft.
Total Length
322.8 ft.
Structural Index
3
Structural Quick
4131
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 16 0106 to 16 0105
MH: 16 0106MH: 16 0105downstream0 ft. MGO - General Observation - MAG COAT 25% START 8:00 TO 4:000 ft. AMH - Upstream Manhole, Survey Begins - 4:30AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG102.3 ft. MGO - General Observation - MAG COAT 40% START130.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG160.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHD322.1 ft. MGO - General Observation - MAG COAT 40% FINISH322.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE-SEVERE AGG ATTCHED322.1 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG322.8 ft. AMH - Downstream Manhole, Survey Ends - 4:55AM

Observation photos (6)

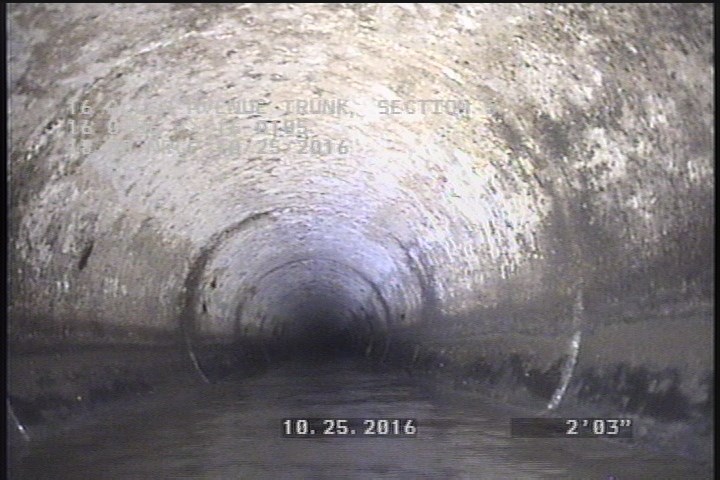

  • General Observation - MAG COAT 25% START 8:00 TO 4:00

    0 ft. - General Observation - MAG COAT 25% START 8:00 TO 4:00

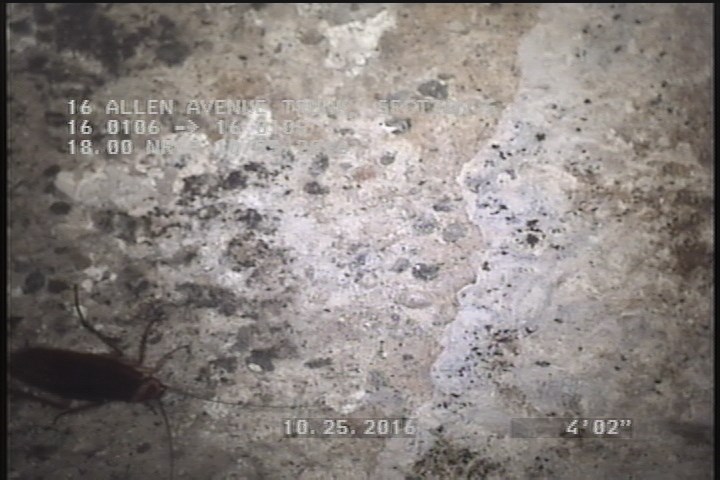

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE

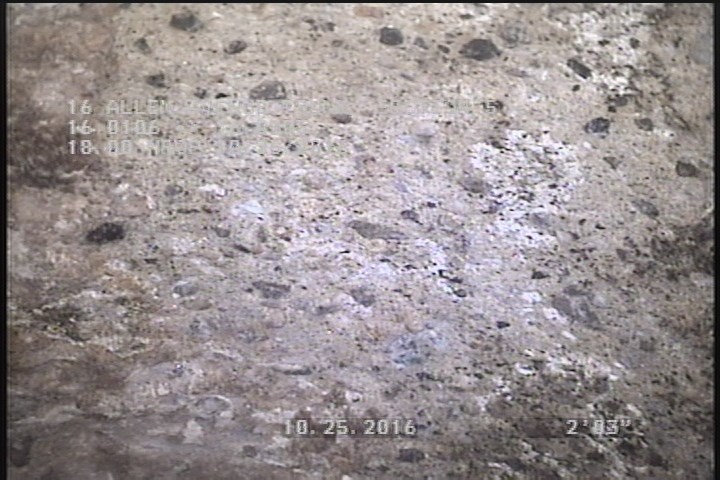

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

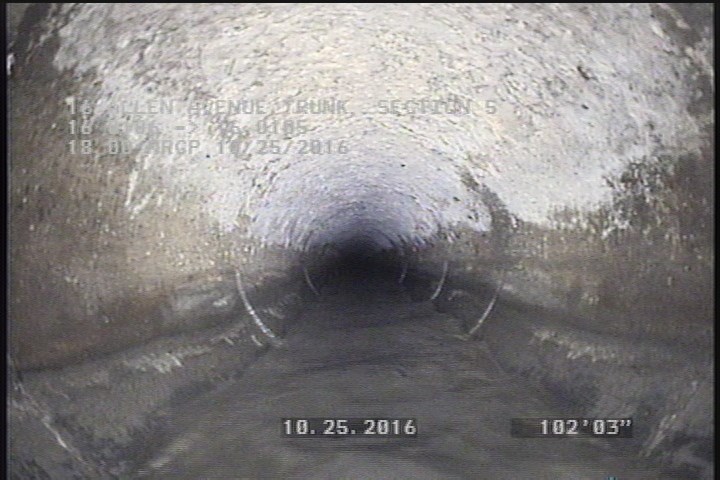

  • General Observation - MAG COAT 40% START

    102.3 ft. - General Observation - MAG COAT 40% START

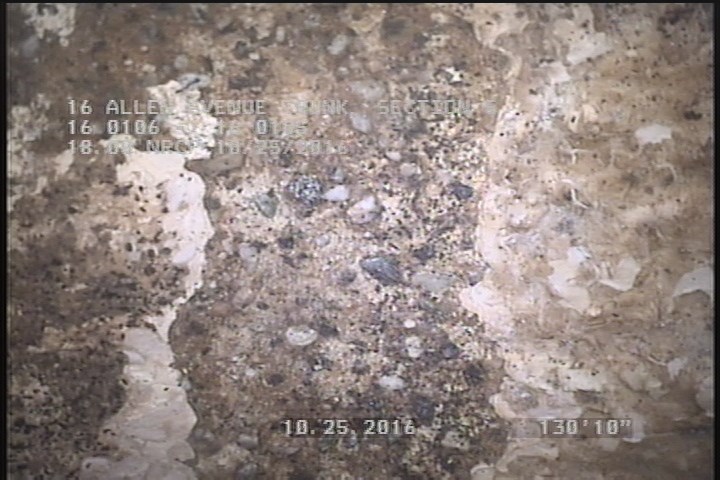

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

    130.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

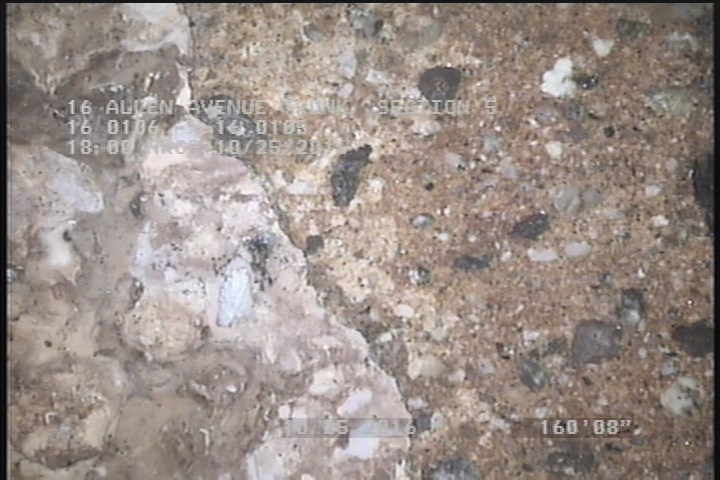

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHD

    160.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHD

All inspections of P13144Work order 0596906

Observations (11)

DistanceCodeObservation
322.1MGOMAG COAT 40% FINISH
2SSSPEELING CONCRETE
322.1SSSPEELING CONCRETE-SEVERE AGG ATTCHED
0MGOMAG COAT 25% START 8:00 TO 4:00
160.7SSSPEELING CONCRETE SEVERE AGG ATTACHD
102.3MGOMAG COAT 40% START
322.1SAMSEVERE AGG
322.8AMH4:55AM
0AMH4:30AM
130.8SAPSEVERE AGG
2SAMSEVERE AGG

Properties (6)

custom_field_three
PEELING CONCRETE - SEVERE AGG ATTCHED
custom_field_two
2
customer
LACSD
datetime
2016-10-25T04:30:00-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
