Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 25, 2016, 10:44 AM

  • 16 0107_16 0106_10252016_035611.mp4

Date
10/25/2016
W/O
0596906
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00641
PipeID
P13145
Time
3:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6748
Sewer Name
16 ALLEN AVENUE TRUNK, SECTION 5
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
20161025MDM_ALLEN_AVENUE_TRUNK_SECTION_5
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
16 0107
Downstream MH
16 0106
Dir. of Survey
Downstream
Length Surveyed
381.9 ft.
Total Length
381.9 ft.
Structural Index
3
Structural Quick
4131
Structural Rating
11
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 16 0107 to 16 0106
MH: 16 0107MH: 16 0106downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:45AM0.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE54.3 ft. MGO - General Observation - POSSIBLE SLIGHT MAG COAT84 ft. MGO - General Observation - MAG COAT 25% START 8:00 TO 4:0089.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED95.2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG IN PEELING CONCRETE95.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG145.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE214 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active221 ft. MGO - General Observation - 18" NRCP381.4 ft. MGO - General Observation - MAG COAT 25% FINISH381.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE SEVERE AGG ATTACHED381.4 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG381.9 ft. AMH - Downstream Manhole, Survey Ends - 4:15AM

Observation photos (6)

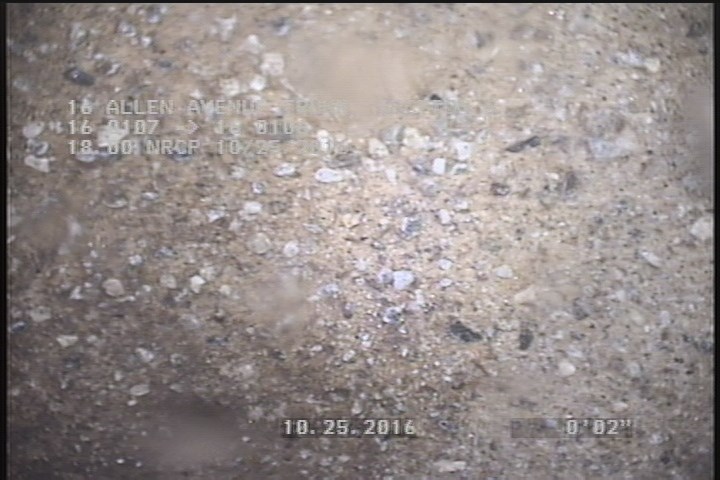

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE

    0.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE

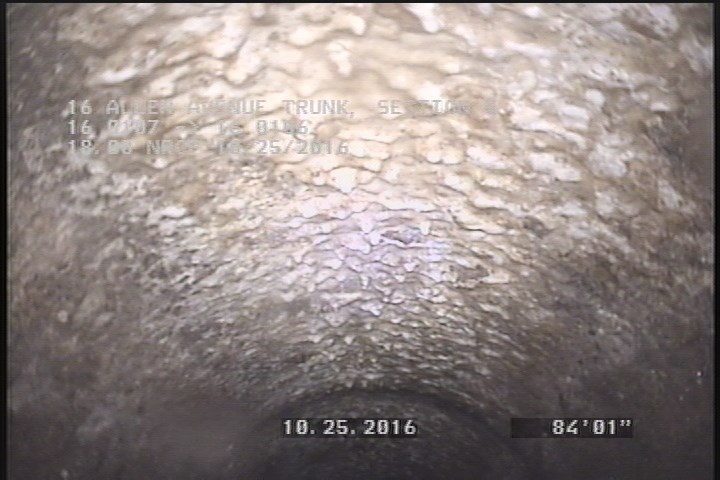

  • General Observation - MAG COAT 25% START 8:00 TO 4:00

    84 ft. - General Observation - MAG COAT 25% START 8:00 TO 4:00

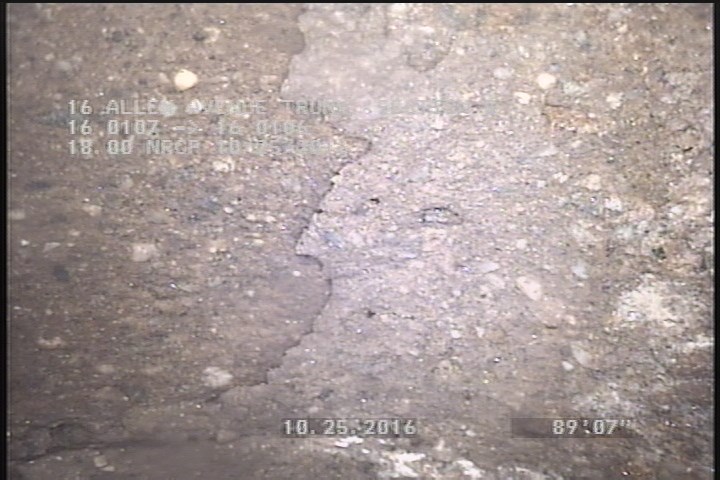

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

    89.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

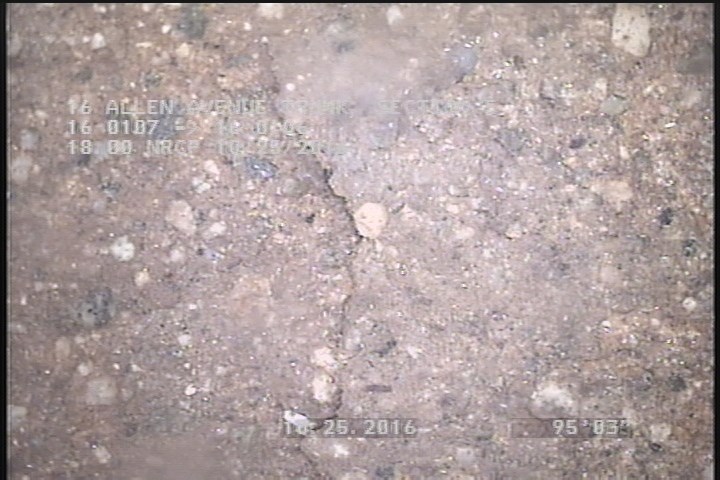

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG IN PEELING CONCRETE

    95.2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG IN PEELING CONCRETE

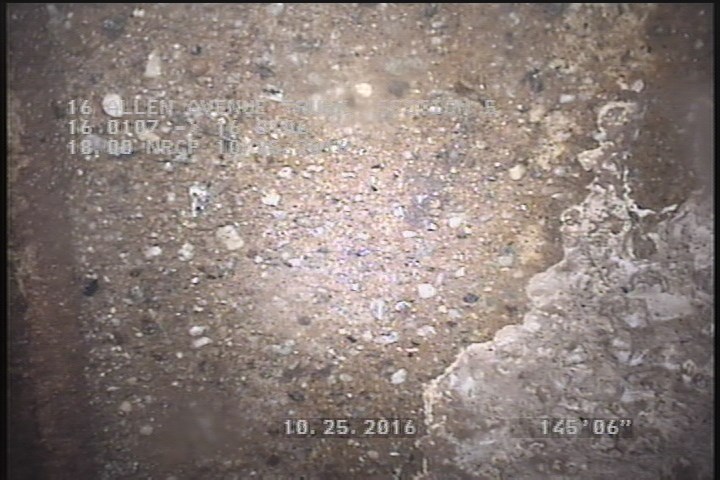

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE

    145.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE

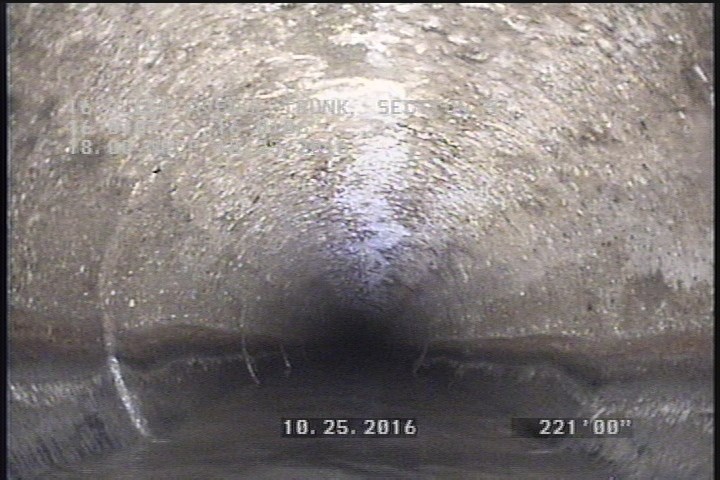

  • General Observation - 18" NRCP

    221 ft. - General Observation - 18" NRCP

All inspections of P13145Work order 0596906

Observations (16)

DistanceCodeObservation
381.4MGOMAG COAT 25% FINISH
0MWL—
221MGO18" NRCP
54.3MGOPOSSIBLE SLIGHT MAG COAT
95.2SAMSEVERE AGG IN PEELING CONCRETE
84MGOMAG COAT 25% START 8:00 TO 4:00
95.2SAVSEVERE AGG
381.9AMH4:15AM
381.4SSSPEELING CONCRETE SEVERE AGG ATTACHED
0MWM—
0AMH3:45AM
145.5SSSPEELING CONCRETE
214TBActive
89.6SSSPEELING CONCRETE SEVERE AGG ATTACHED
381.4SAMSEVERE AGG
0.2SAVSEVERE

Properties (6)

custom_field_three
PEELING CONCRETE- SEVERE AGG ATTCHED
custom_field_two
2
customer
LACSD
datetime
2016-10-25T03:44:40-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
