Wastewater/Activity/PacpInspection/1.0Oct 22, 2016, 08:15 AM
A 0950_A 0949_10222016_072504.mp4
- Date
- 10/22/2016
- W/O
- 0592185
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00918
- PipeID
- P20728
- Time
- 1:15 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6744
- Sewer Name
- A JOA-1A DISTRICT 5 INTERCEPTOR RELIEF
- City
- TORANCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- 20161022MDM_JOA_1A_DISTRICT_5_INTERCEPTOR_RELIEF
- Material
- RCP-PTL
- Shape
- Circular
- Height
- 90 in.
- Upstream MH
- A 0950
- Downstream MH
- A 0949
- Dir. of Survey
- Downstream
- Length Surveyed
- 430.7 ft.
- Total Length
- 430.7 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

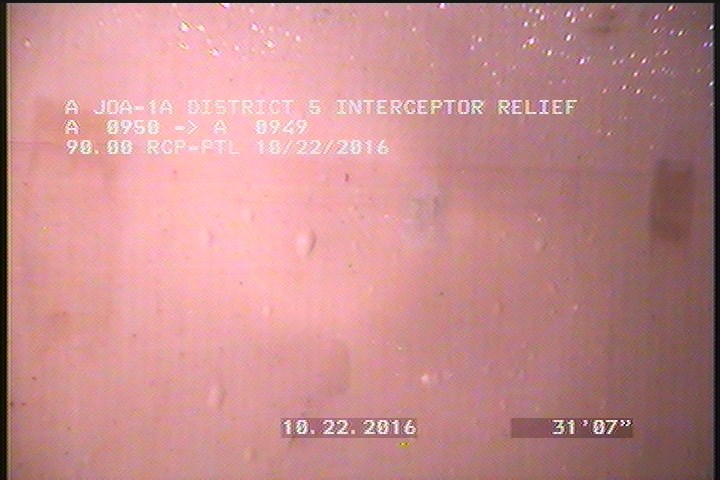

4 ft. - Lining Failure Blistered, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SMALL BLISTERES

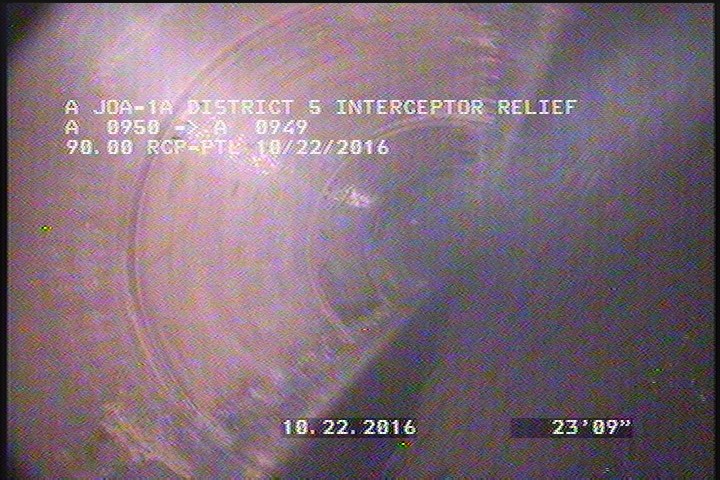

23.8 ft. - General Observation - 90" RCP PTL

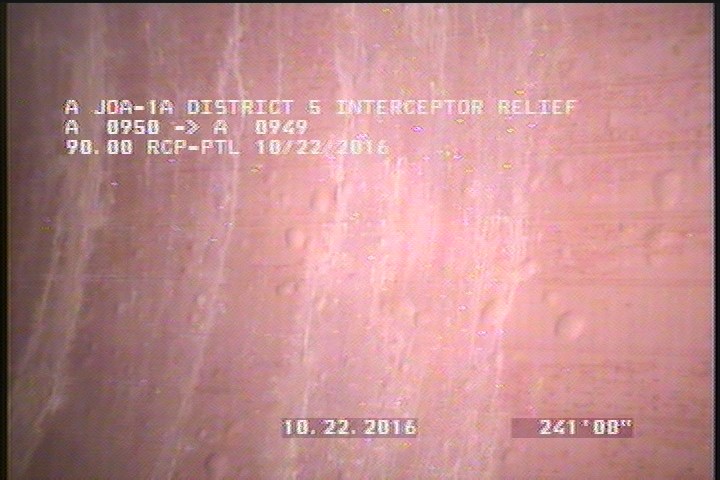

241.6 ft. - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: NO

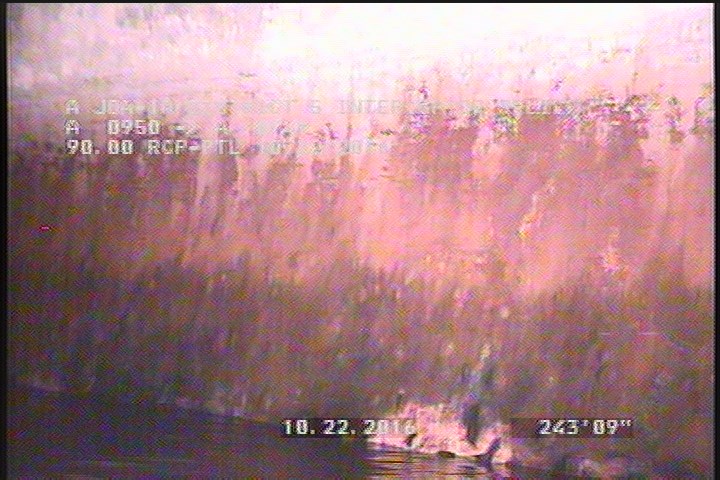

243.7 ft. - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 23.8 | MGO | 90" RCP PTL |
| 0 | AMH | 7:15AM |
| 430.1 | LFB | SMALL BLISTERES |
| 0 | MWM | — |
| 241.6 | LFB | — |
| 430.7 | AMH | 7:35AM |
| 243.7 | LFB | — |
| 0 | MWL | — |
| 4 | LFB | SMALL BLISTERES |
Properties (5)
- custom_field_two
- 4 SMALL BLISTERES ON LINER
- customer
- LACSD
- datetime
- 2016-10-22T01:15:45-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
