Wastewater/Activity/PacpInspection/1.0Oct 24, 2016, 10:58 AM
A 0340_B 0593_10242016_040330.mp4
A 0340_B 0593_10242016_040426.mp4
- Date
- 10/24/2016
- W/O
- 0602872
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00325
- PipeID
- P21168
- Time
- 3:58 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6746
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- ROSEMEAD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20161021MDM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
- Material
- FIBERGLASS
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- A 0340
- Downstream MH
- A 1045
- Dir. of Survey
- Downstream
- Length Surveyed
- 46.5 ft.
- Total Length
- 46.5 ft.
- Structural Index
- 5
- Structural Quick
- 5200
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

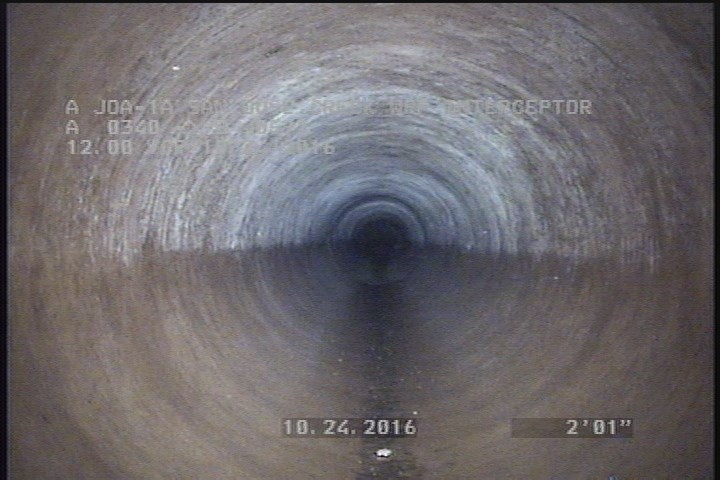

2.1 ft. - General Observation - 12" FIBERGLASS

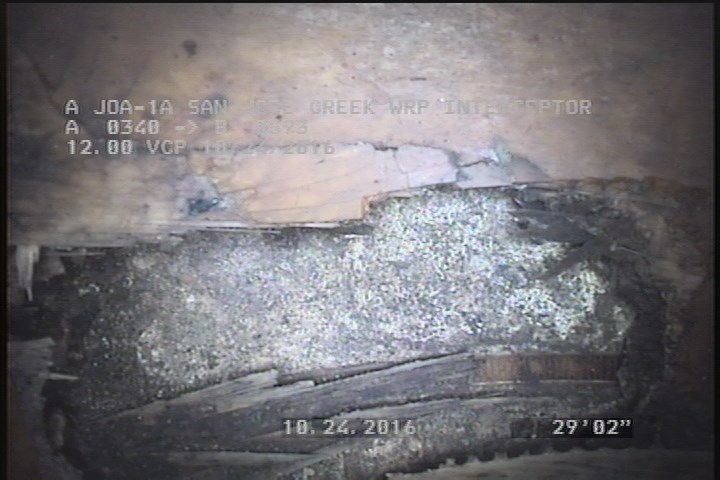

28.3 ft. - Surface Missing Wall, from 04 to 05 o'clock, within 8 inches of joint: NO - 1X 2" MISSING FIBERGLASS

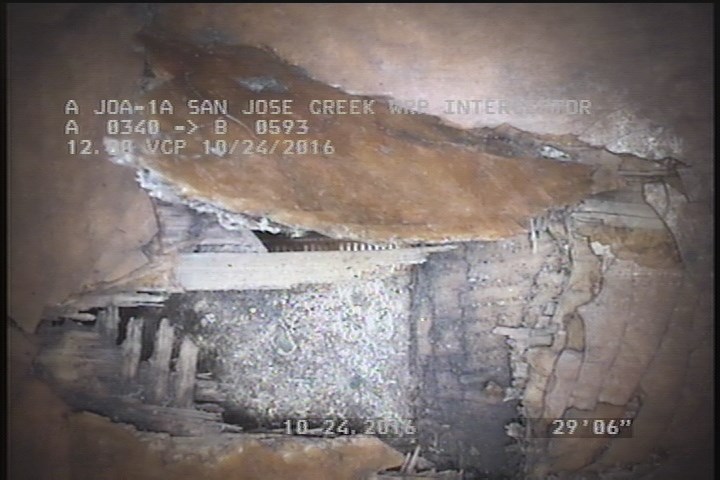

29.5 ft. - Surface Missing Wall, from 03 to 04 o'clock, within 8 inches of joint: NO - 2" X2" MISSING FIBERGLASS
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | DRY LINE |
| 28.3 | SMW | 1X 2" MISSING FIBERGLASS |
| 2.1 | MGO | 12" FIBERGLASS |
| 46.5 | AMH | 4:15AM |
| 0 | AMH | 4:00AM |
| 29.5 | SMW | 2" X2" MISSING FIBERGLASS |
Properties (5)
- additional_info
- AIRLINE TO MH B 0593
- customer
- LACSD
- datetime
- 2016-10-24T03:58:20-07:00
- documentation
- MARTIN,MANANES,REVELES,OLIVER 111
- is_lateral_inspection
- false
