Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 18, 2016, 05:11 PM

  • 16 0347_16 0346_10182016_101414.mp4

Date
10/18/2016
W/O
0596965
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00665
PipeID
P13398
Time
10:11 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7252
Sewer Name
16 SAN MARINO OUTFALL TRUNK
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20161018AM_SAN_MARINO_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
16 0347
Downstream MH
16 0346
Dir. of Survey
Downstream
Length Surveyed
299.8 ft.
Total Length
299.8 ft.
Structural Index
4
Structural Quick
5341
Structural Rating
25
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole 16 0347 to 16 0346
MH: 16 0347MH: 16 0346downstream0 ft. MGO - General Observation - ROACHES INSIDE THE MH.0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:12 AM0 ft. MGO - General Observation - UNKNOWN CONN. INSIDE THE MH. @ 03 O'CLOCK3.9 ft. B - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES4.8 ft. MGO - General Observation - CHIPPING/POSSIBLY BROKEN AROUND THE JOINT8.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"10 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start66.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"120.3 ft. MGP - General Photograph - MULTIPLE CRACKS/FRACTURES136.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"206.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"276.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"283 ft. B - Broken, at 12 o'clock, within 8 inches of joint: YES, Start285.1 ft. B - Broken, at 12 o'clock, within 8 inches of joint: YES, Finish292.9 ft. B - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES, Start293.8 ft. BSV - Broken Soil Visible, from 08 to 04 o'clock, within 8 inches of joint: YES295.5 ft. MGP - General Photograph - BROKEN PIPE296.4 ft. B - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish296.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish296.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish297.7 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH298.6 ft. MGO - General Observation - ROACHES INSIDE THE MH.299.8 ft. AMH - Downstream Manhole, Survey Ends - 10:50 AM

Observation photos (7)

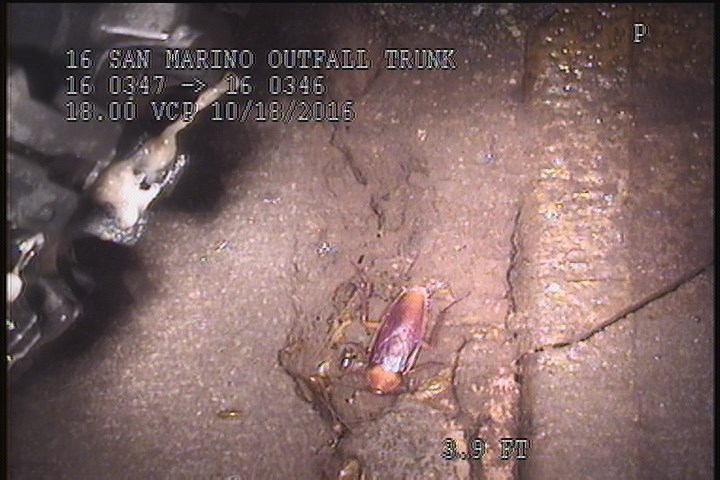

  • Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

    3.9 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

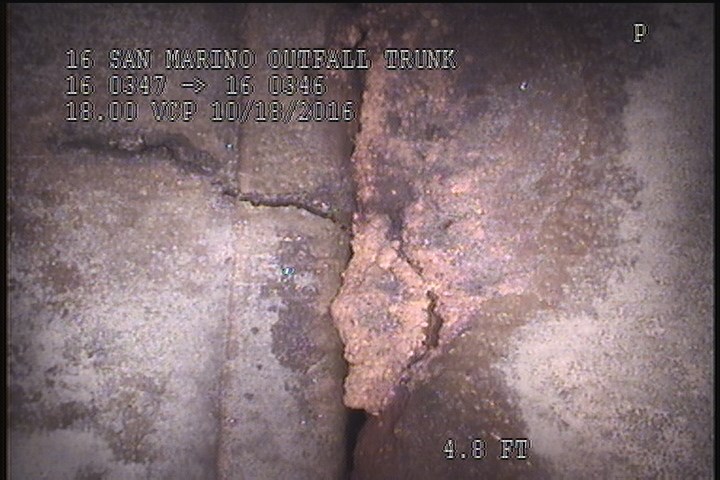

  • General Observation - CHIPPING/POSSIBLY BROKEN AROUND THE JOINT

    4.8 ft. - General Observation - CHIPPING/POSSIBLY BROKEN AROUND THE JOINT

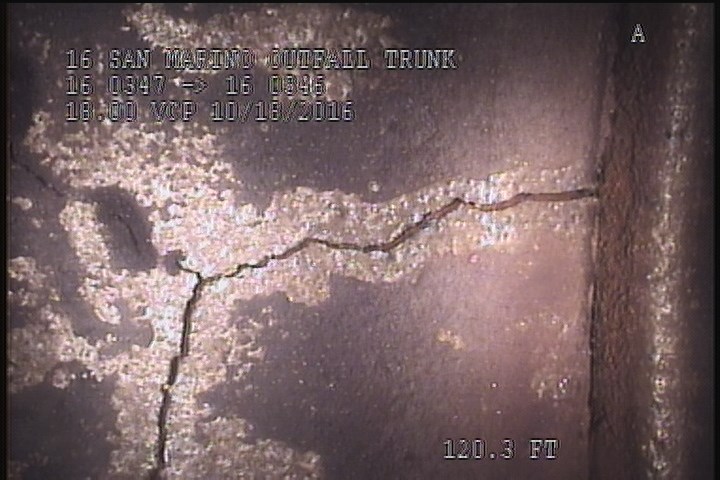

  • General Photograph - MULTIPLE CRACKS/FRACTURES

    120.3 ft. - General Photograph - MULTIPLE CRACKS/FRACTURES

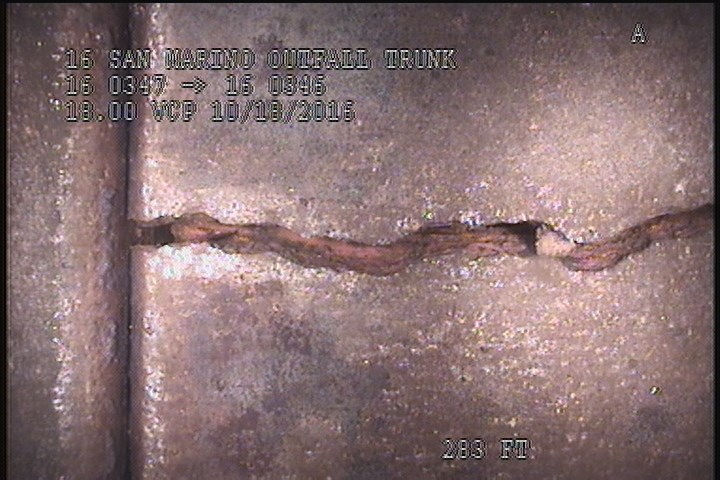

  • Broken, at 12 o'clock, within 8 inches of joint: YES, Start

    283 ft. - Broken, at 12 o'clock, within 8 inches of joint: YES, Start

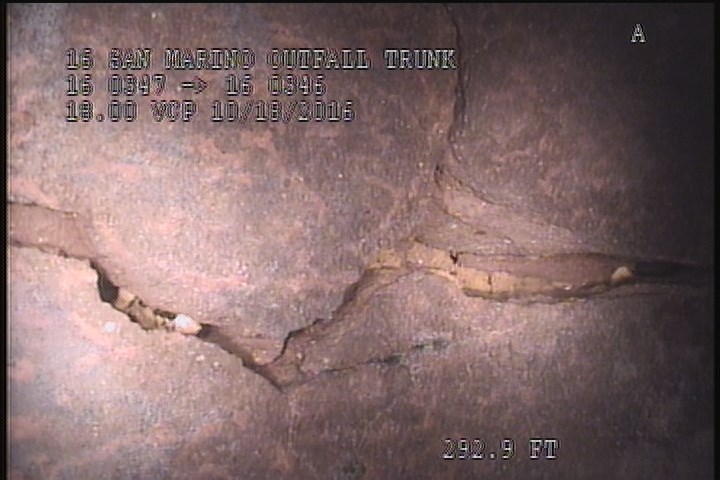

  • Broken, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    292.9 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

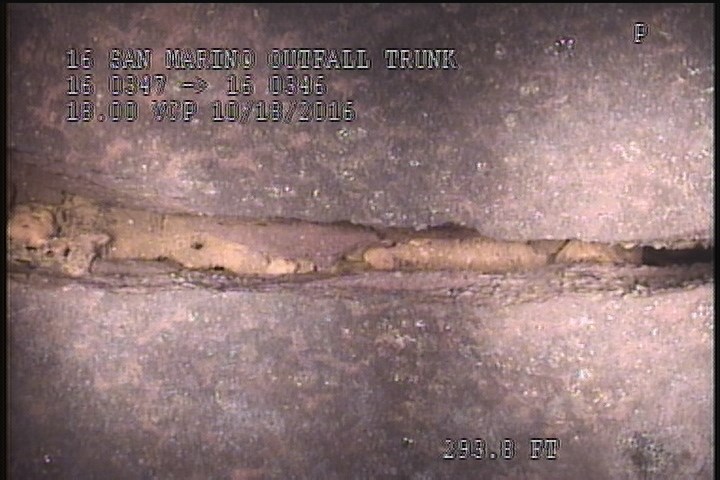

  • Broken Soil Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    293.8 ft. - Broken Soil Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

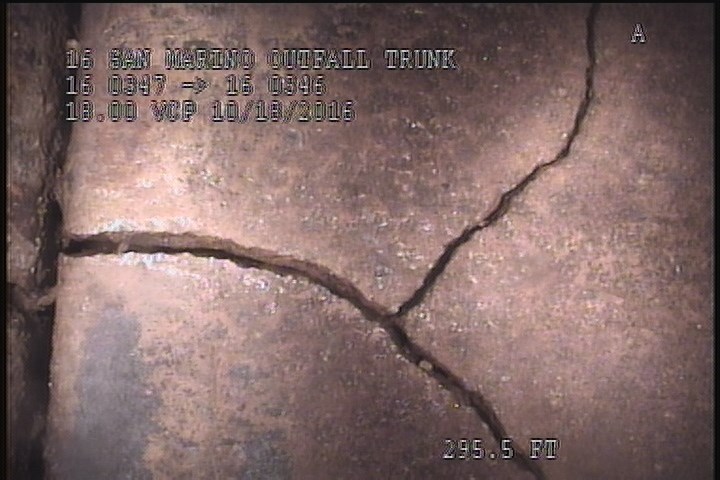

  • General Photograph - BROKEN PIPE

    295.5 ft. - General Photograph - BROKEN PIPE

All inspections of P13398Work order 0596965

Observations (26)

DistanceCodeObservation
0MGOROACHES INSIDE THE MH.
297.7MGOSLIGHT GREASE THROUGHOUT THE REACH
295.5MGPBROKEN PIPE
4.8MGOCHIPPING/POSSIBLY BROKEN AROUND THE JOINT
0MWM—
206.9TFC—
296.4B—
298.6MGOROACHES INSIDE THE MH.
3.9B—
293.8BSV—
299.8AMH10:50 AM
10FM—
0MWL—
283B—
292.9B—
276.8TFC—
136.6TFC—
120.3MGPMULTIPLE CRACKS/FRACTURES
0AMH10:12 AM
296.4CM—
66.7TFC—
10CM—
0MGOUNKNOWN CONN. INSIDE THE MH. @ 03 O'CLOCK
285.1B—
296.4FM—
8.9TFC—

Properties (7)

additional_info
RFIR INSPECTION
custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-10-18T10:11:02-07:00
documentation
MIRANDA, SHADLER, FRANKLIN, BRAR
is_lateral_inspection
false
