Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 8, 2016, 08:48 AM

  • A 0968_A 0967_1082016_050949.mp4

Date
10/08/2016
W/O
0592185
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00918
PipeID
P20746
Time
1:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0316
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR RELIEF
City
TORRANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
27
Purpose
Routine Assessment
Project
20161008MDM_JOA_1A_DISTRICT_5_INTERCEPTOR_RELIEF
Material
RCP-PTL
Shape
Circular
Height
90 in.
Upstream MH
A 0968
Downstream MH
A 0967
Dir. of Survey
Downstream
Length Surveyed
781.6 ft.
Total Length
781.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 0968 to A 0967
MH: A 0968MH: A 0967downstream0 ft. MGP - General Photograph - PTL0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM15.2 ft. MWL - Water Level, 10 %of cross sectional area15.2 ft. MGO - General Observation - 90" RCP-PTL469.9 ft. MGO - General Observation - 90" RCP-PTL781.6 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (3)

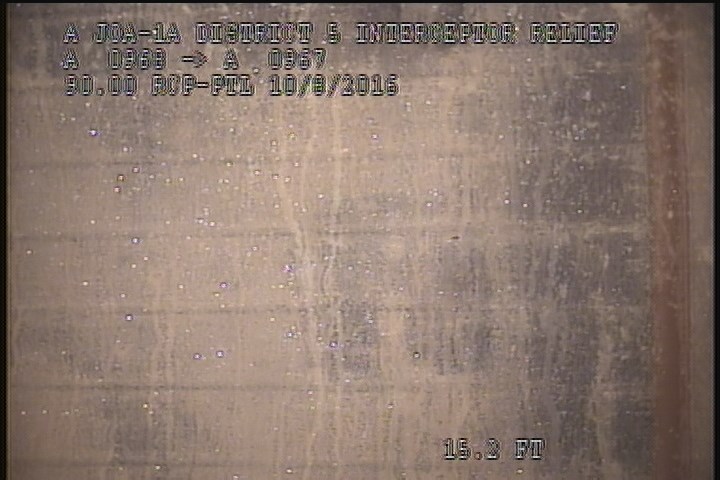

  • Water Level, 10 %of cross sectional area

    15.2 ft. - Water Level, 10 %of cross sectional area

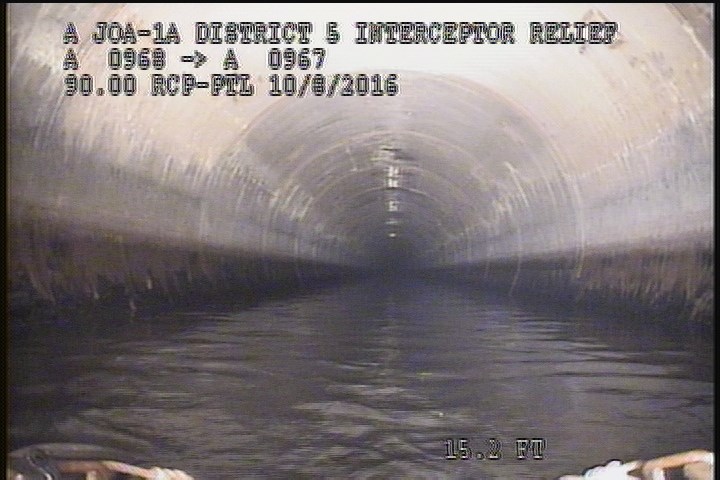

  • General Observation - 90" RCP-PTL

    15.2 ft. - General Observation - 90" RCP-PTL

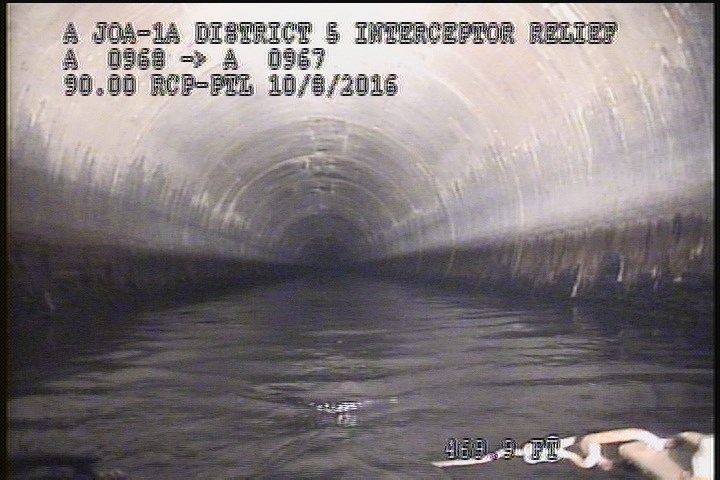

  • General Observation - 90" RCP-PTL

    469.9 ft. - General Observation - 90" RCP-PTL

All inspections of P20746Work order 0592185

Observations (7)

DistanceCodeObservation
0MGPPTL
15.2MWL—
469.9MGO90" RCP-PTL
0MWM—
15.2MGO90" RCP-PTL
781.6AMH5:35AM
0AMH5:00AM

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2016-10-08T01:48:54-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
