Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 04:10 PM

  • 02 1943_02 1942_1052016_093640.mp4

Date
10/05/2016
W/O
0596961
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00246
PipeID
P04245
Time
9:10 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0312
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20161005MI_DOUGLAS_AVE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
02 1943
Downstream MH
02 1942
Dir. of Survey
Downstream
Length Surveyed
350.2 ft.
Total Length
350.2 ft.
Structural Index
4
Structural Quick
5144
Structural Rating
27
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
4
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 02 1943 to 02 1942
MH: 02 1943MH: 02 1942downstream0 ft. AMH - Upstream Manhole, Survey Begins - 09:30AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area1.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES14.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start24.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - Open24.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Open42.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open43.9 ft. FM - Fracture Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES48.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - Active85.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES93.2 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES93.2 ft. B - Broken, from 12 to 04 o'clock, within 8 inches of joint: YES111.5 ft. FM - Fracture Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES112.3 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"114.2 ft. FM - Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES115.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Open168.5 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"170.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Open208.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open229.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"245 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open271.3 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"279.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open320.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"329.6 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"345.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish350.2 ft. MGO - General Observation - ROACHES >50 AT MH350.2 ft. AMH - Downstream Manhole, Survey Ends - 10:16AM350.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6" - Unkown

Observation photos (6)

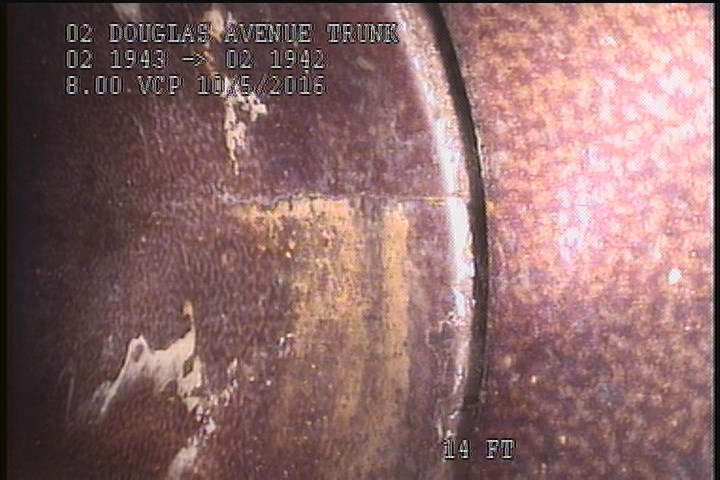

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    14.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

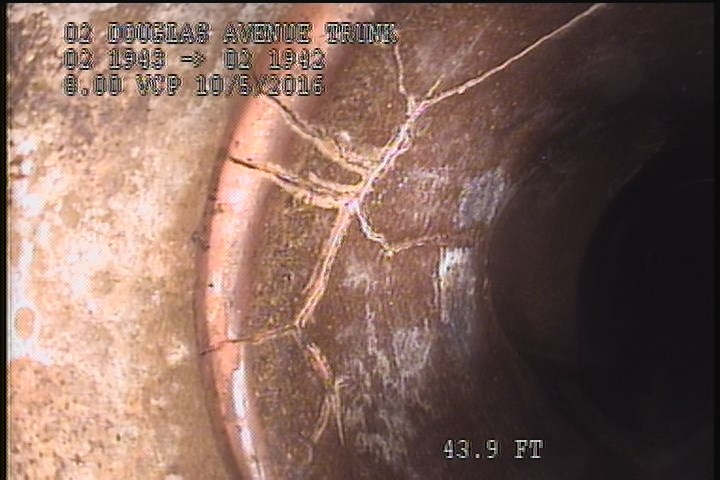

  • Fracture Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

    43.9 ft. - Fracture Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

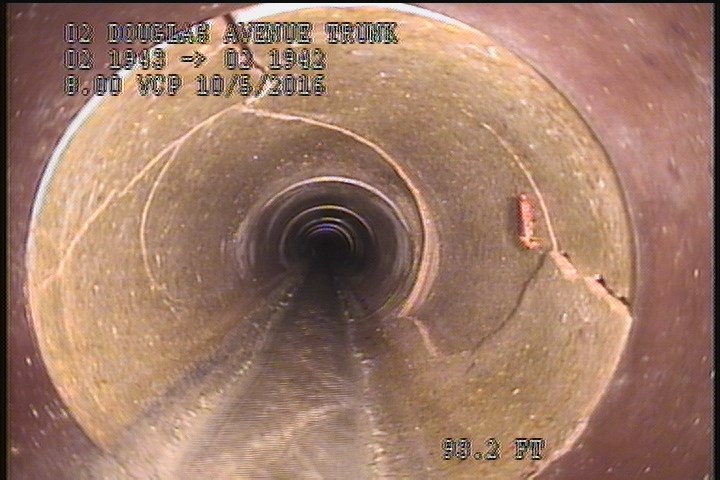

  • Broken, from 12 to 04 o'clock, within 8 inches of joint: YES

    93.2 ft. - Broken, from 12 to 04 o'clock, within 8 inches of joint: YES

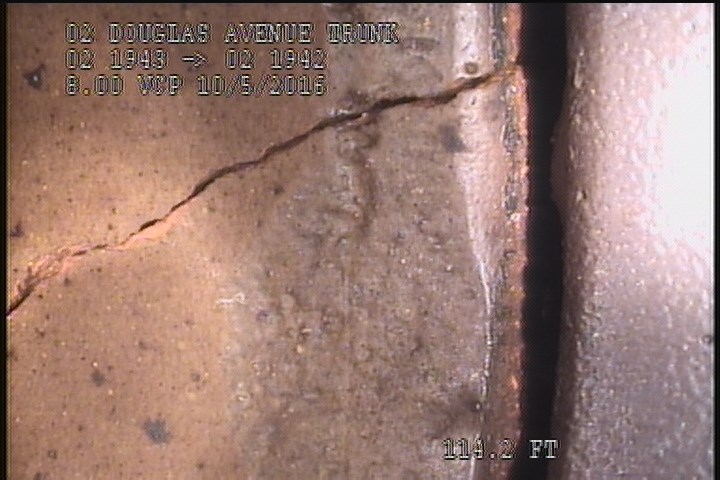

  • Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

    114.2 ft. - Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

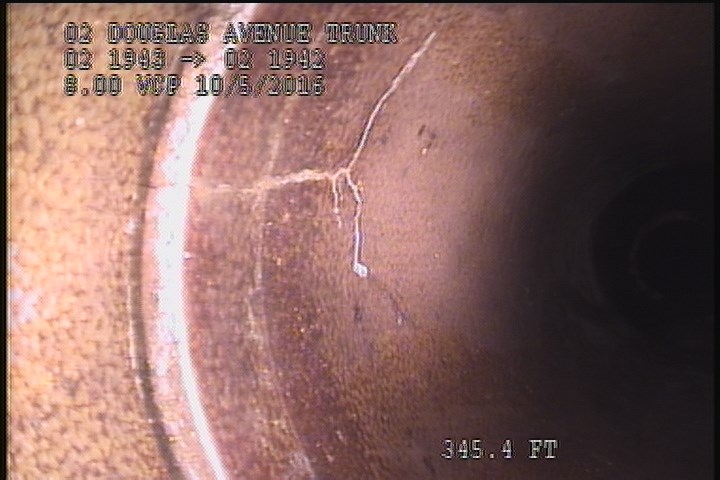

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

    345.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

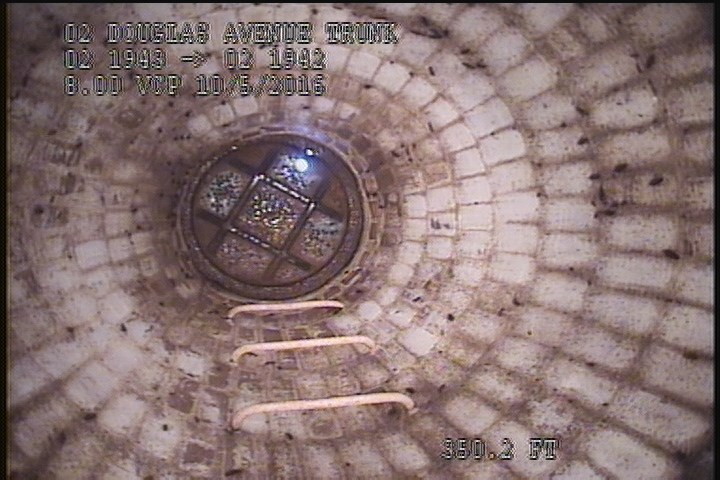

  • Downstream Manhole, Survey Ends - 10:16AM

    350.2 ft. - Downstream Manhole, Survey Ends - 10:16AM

All inspections of P04245Work order 0596961

Observations (30)

DistanceCodeObservation
43.9FM—
208.6TFOpen
1.4CM—
0AMH09:30AM
115.4TFOpen
350.2MGOROACHES >50 AT MH
112.3TFA—
93.2FM—
271.3TFA—
24.7TFOpen
0MWL—
350.2AMH10:16AM
42.5TFOpen
14.2CM—
168.5TFA—
114.2FM—
111.5FM—
24.9TFOpen
345.4CM—
329.6TFA—
245TFOpen
279.8TFOpen
229.1TFA—
85.2DAGS—
48.7TFActive
93.2B—
170.7TFOpen
350.2TFUnkown
0MWM—
320.1TFA—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2016-10-05T09:10:51-07:00
documentation
IGNACIO, FRANKLIN, SHADLER, BRAR
is_lateral_inspection
false
