Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 08:54 AM

  • 02 1589_02 1588A_1052016_024655.mp4

Date
10/05/2016
W/O
0600225
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00231
PipeID
P04043
Time
1:54 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
H0310R
Sewer Name
02 ARIZONA AVENUE TRUNK, SECTION 2
City
LOS ANGLES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
08
Purpose
Maintenance Related
Project
20161005MDM_ARIZONA_AVENUE_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
02 1588A
Downstream MH
02 1589
Dir. of Survey
Upstream
Length Surveyed
287.2 ft.
Total Length
287.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 02 1588A to 02 1589
MH: 02 1588AMH: 02 1589upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:05AM33.7 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open-95%ROOTS34 ft. RFL - Roots Fine Lateral, at 12 o'clock - 1%37 ft. MGO - General Observation - 12" VCP70.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open92.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open107.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open152 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open186 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open197.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped234.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped249.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open276.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open287.2 ft. AMH - Downstream Manhole, Survey Begins - 2:40AM287.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active287.2 ft. MWM - Water Mark, 30 %of cross sectional area287.2 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (3)

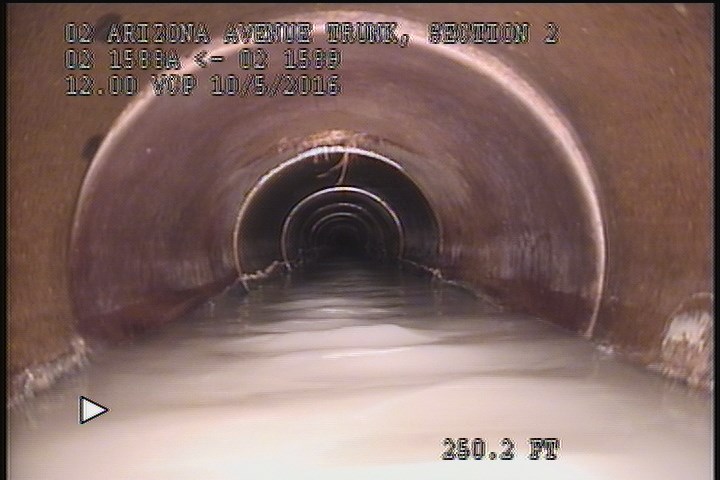

  • General Observation - 12" VCP

    250.2 ft. - General Observation - 12" VCP

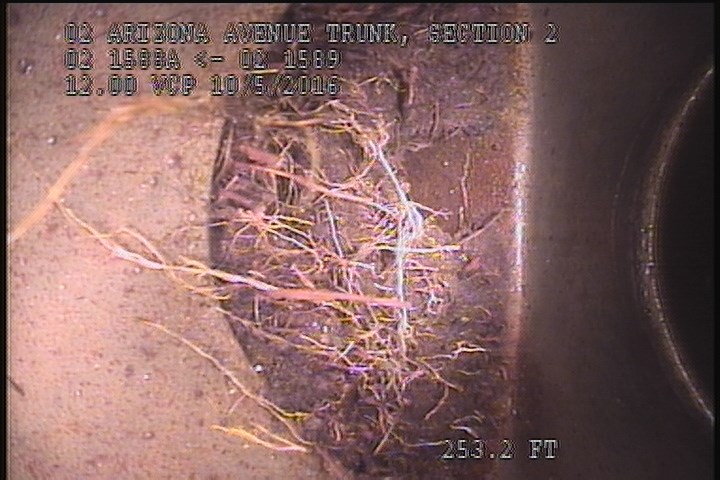

  • Roots Fine Lateral, at 12 o'clock - 1%

    253.2 ft. - Roots Fine Lateral, at 12 o'clock - 1%

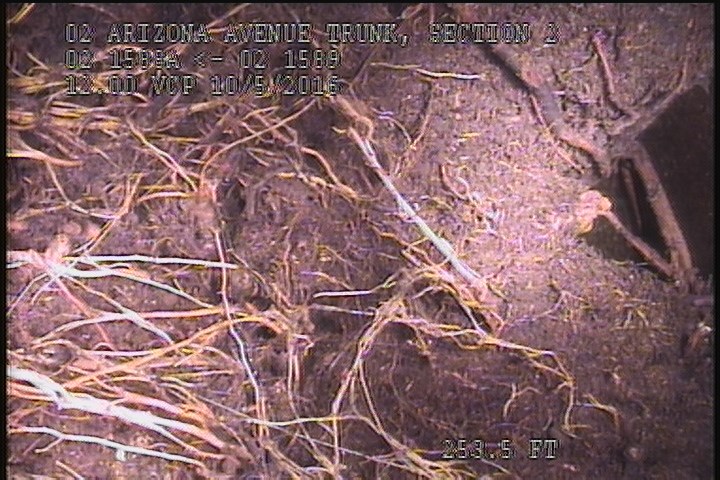

  • Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open-95%ROOTS

    253.5 ft. - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open-95%ROOTS

All inspections of P04043Work order 0600225

Observations (17)

DistanceCodeObservation
38.1TFOpen
195.1TFOpen
179.8TFOpen
101.2TFOpen
287.2AMH3:05AM
10.8TFOpen
250.2MGO12" VCP
253.5TFDOpen-95%ROOTS
0AMH2:40AM
0MGOConn. @ Mh, 3 O' Clock. Active
0MWM—
135.2TFOpen
89.9TFCapped
253.2RFL1%
217TFOpen
53.1TFCCapped
0MWL—

Properties (5)

additional_info
POST ROOT CCTV
customer
LACSD
datetime
2016-10-05T01:54:48-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
