Wastewater/Activity/PacpInspection/1.0Jun 5, 2019, 08:34 AM
18 0087_18 1248 _06052019_014256.mp4
- Date
- 06/05/2019
- W/O
- 766605
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00698
- PipeID
- P26325
- Time
- 1:34 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6559
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_766605_TV18083_MAY2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 18 0087
- Downstream MH
- 18 1248
- Dir. of Survey
- Downstream
- Length Surveyed
- 24.2 ft.
- Total Length
- 24.2 ft.
- Structural Index
- 3
- Structural Quick
- 3800
- Structural Rating
- 24
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 32
Observation photos (3)

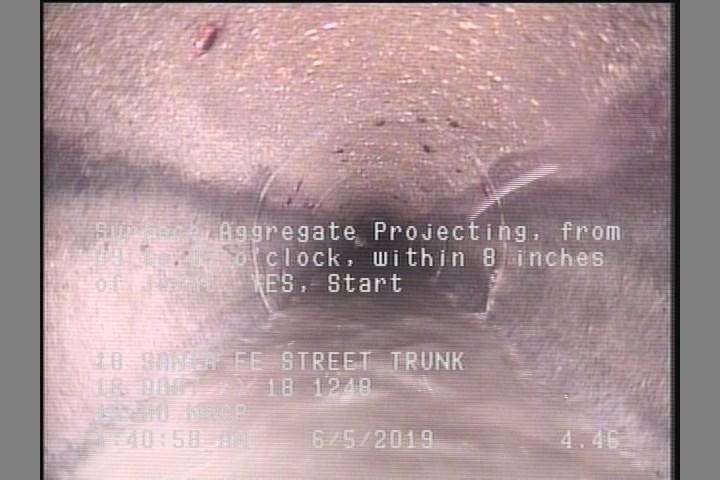

4.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

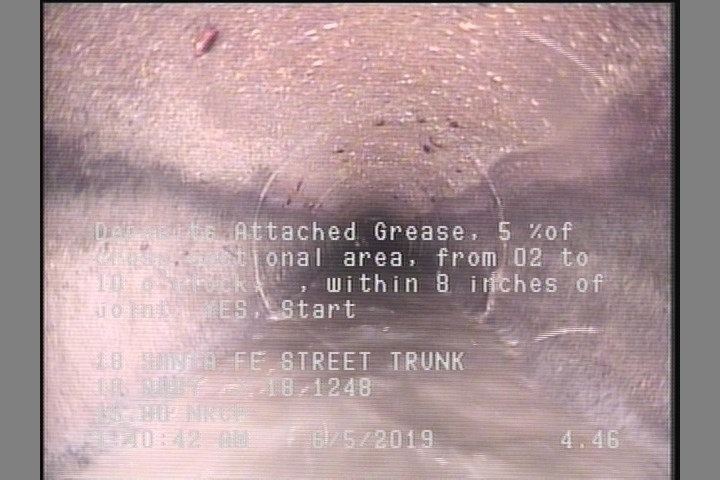

4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

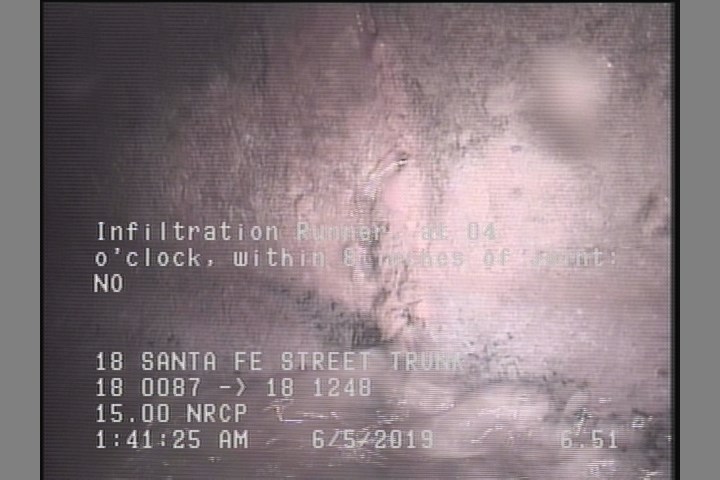

6.5 ft. - Infiltration Runner, at 04 o'clock, within 8 inches of joint: NO
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 4.5 | SAP | — |
| 23.5 | DAGS | — |
| 0 | AMH | 18 0087 |
| 0 | MGO | ROACHES @ MH |
| 2 | CM | — |
| 24.2 | AMH | 18 1248 |
| 0 | MWM | — |
| 24.2 | MGO | CONNECTION IN MH 9 OCLOCK/ACTIVE |
| 4.5 | DAGS | — |
| 6.5 | IR | — |
| 23.5 | SAP | — |
| 23 | CM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC377681
- customer
- LACSD
- datetime
- 2019-06-05T01:34:48-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
