Wastewater/Activity/PacpInspection/1.0Jun 1, 2019, 06:25 AM
18 0110_18 0109 _05312019_233127.mp4
- Date
- 05/31/2019
- W/O
- 766605
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00698
- PipeID
- P13930
- Time
- 11:25 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6556
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_766605_TV18083_MAY2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 0110
- Downstream MH
- 18 0109
- Dir. of Survey
- Downstream
- Length Surveyed
- 41.9 ft.
- Total Length
- 41.9 ft.
- Structural Index
- 2
- Structural Quick
- 3728
- Structural Rating
- 37
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 41
Observation photos (2)

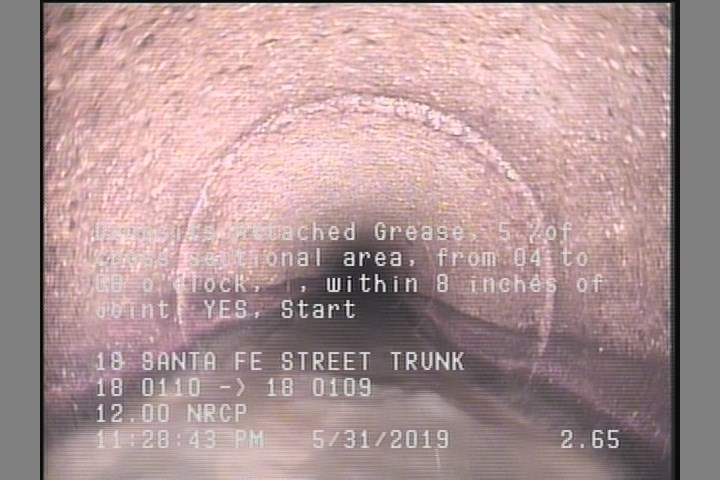

2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

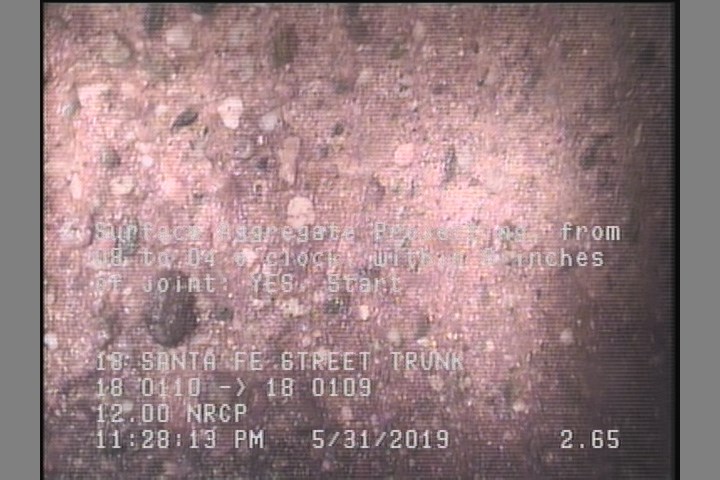

2.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 39.3 | TFC | — |
| 41.9 | MGO | CONNECTION IN MH 3 OCLOCK/ACTIVE |
| 0 | MWM | — |
| 39.9 | DAGS | — |
| 0 | AMH | 18 0110 |
| 33.1 | TF | ACTIVE |
| 0 | MWL | — |
| 2.7 | DAGS | — |
| 2.7 | SAP | — |
| 2 | SSS | — |
| 41 | SSS | — |
| 0 | MGO | ROACHES @ MH |
| 0 | MGO | CONNECTION IN MH 3 OCLOCK/CAPPED |
| 41.9 | AMH | 18 0109 |
| 39.9 | SAP | — |
Properties (6)
- additional_info
- SC377678
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-05-31T23:25:52-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
