Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 7, 2019, 09:28 AM

  • 18 0081_18 1097 _06072019_023649.mp4

Date
06/07/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13900
Time
2:28 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6561
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0081
Downstream MH
18 1097
Dir. of Survey
Downstream
Length Surveyed
56.6 ft.
Total Length
56.6 ft.
Structural Index
3
Structural Quick
3A00
Structural Rating
30
O&M Index
2
O&M Quick
412A
O&M Rating
24
Overall Index
3
Overall Quick
—
Overall Rating
54
Pipe schematic from manhole 18 0081 to 18 1097
MH: 18 0081MH: 18 1097downstream0 ft. MGO - General Observation - CONNECTION IN MH 9 OCLOCK0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 00810 ft. MWL - Water Level, 20 %of cross sectional area4.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start4.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start56.4 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish56.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish56.6 ft. AMH - Downstream Manhole, Survey Ends - 18 1097

Observation photos (2)

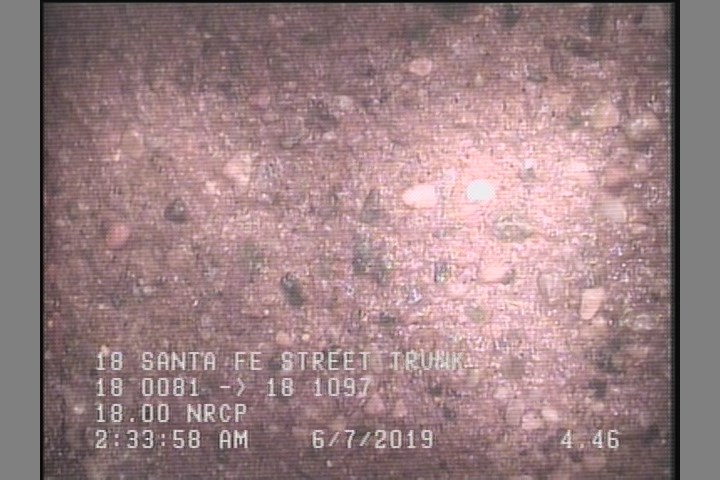

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

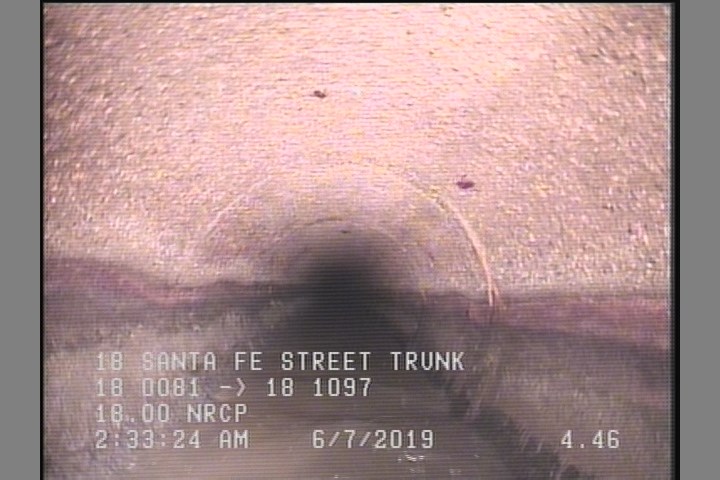

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P13900Work order 766605

Observations (9)

DistanceCodeObservation
0MGOCONNECTION IN MH 9 OCLOCK
0MWM—
0AMH18 0081
4.5SAP—
0MWL—
56.4SAP—
56.4DAGS—
56.6AMH18 1097
4.5DAGS—

Properties (6)

additional_info
SC377684
custom_field_two
3
customer
LACSD
datetime
2019-06-07T02:28:58-07:00
documentation
PROPIPE
is_lateral_inspection
false
