Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 5, 2019, 06:49 AM

  • 18 0095_18 0094 _06042019_235935.mp4

Date
06/04/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13915
Time
11:49 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6559
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Square
Height
15 in.
Width
15 in.
Upstream MH
18 0095
Downstream MH
18 0094
Dir. of Survey
Downstream
Length Surveyed
285.9 ft.
Total Length
286.8 ft.
Structural Index
3
Structural Quick
3K22
Structural Rating
187
O&M Index
2
O&M Quick
2J00
O&M Rating
114
Overall Index
3
Overall Quick
—
Overall Rating
301
Pipe schematic from manhole 18 0095 to 18 0094
MH: 18 0095MH: 18 0094downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 00952 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start6.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES7.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"18.5 ft. FS - Fracture Spiral, from 01 to 02 o'clock, within 8 inches of joint: YES135.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"199.2 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6" - OPEN/ACTIVE285 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish285 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish285.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish285.9 ft. MGO - General Observation - ROACHES @ MH285.9 ft. AMH - Downstream Manhole, Survey Ends - 18 0094285.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (4)

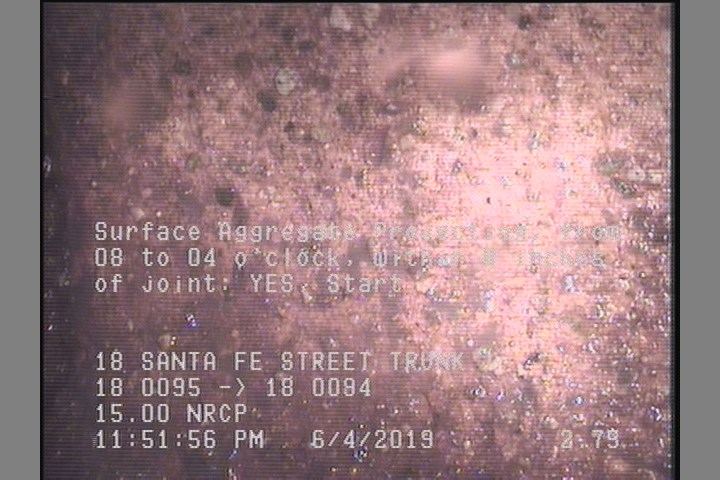

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

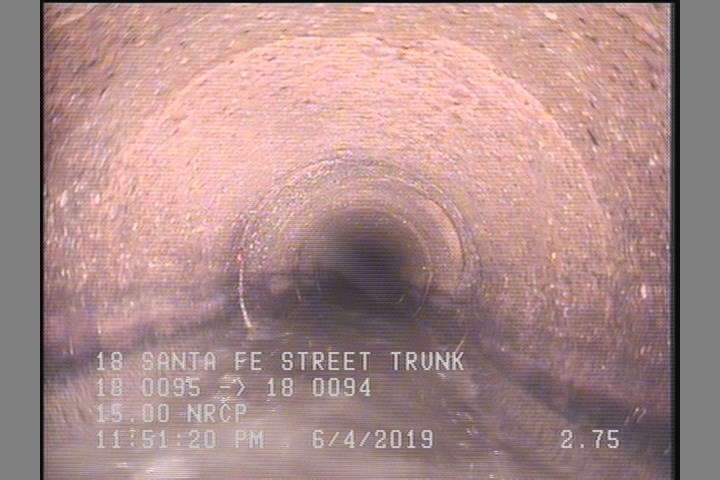

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

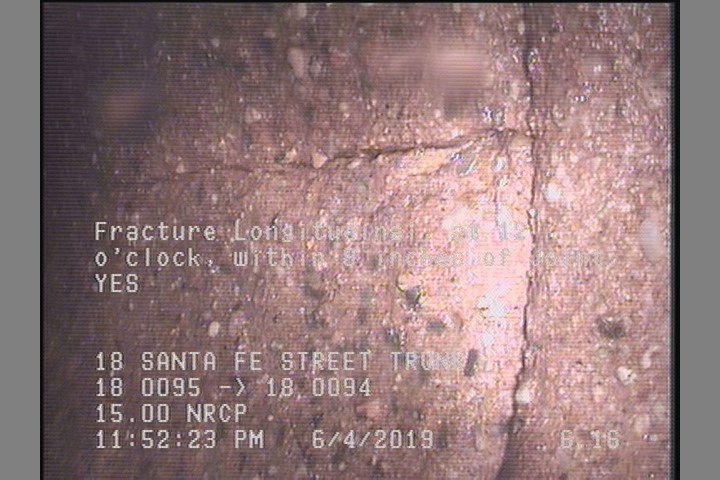

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    6.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

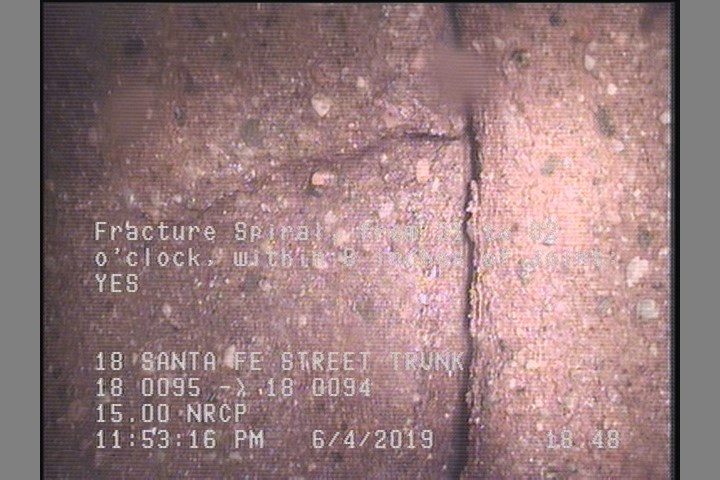

  • Fracture Spiral, from 01 to 02 o'clock, within 8 inches of joint: YES

    18.5 ft. - Fracture Spiral, from 01 to 02 o'clock, within 8 inches of joint: YES

All inspections of P13915Work order 766605

Observations (19)

DistanceCodeObservation
0MWL—
2SSS—
285.9SAP—
285SSS—
285.9MGOROACHES @ MH
199.2TBOPEN/ACTIVE
285.9AMH18 0094
2CM—
0MGOROACHES @ MH
2.8SAP—
135.4TFC—
2.8DAGS—
6.2FL—
0MWM—
7.5TFC—
285CM—
285.9DAGS—
18.5FS—
0AMH18 0095

Properties (6)

additional_info
SC377681
custom_field_two
3
customer
LACSD
datetime
2019-06-04T23:49:02-07:00
documentation
PROPIPE
is_lateral_inspection
false
