Wastewater/Activity/PacpInspection/1.0May 31, 2019, 08:46 AM
18 0118_18 0987 _05312019_015523.mp4
- Date
- 05/31/2019
- W/O
- 766605
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00698
- PipeID
- P13939
- Time
- 1:46 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6556
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_766605_TV18083_MAY2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 0118
- Downstream MH
- 18 0987
- Dir. of Survey
- Downstream
- Length Surveyed
- 182.5 ft.
- Total Length
- 182.5 ft.
- Structural Index
- 3
- Structural Quick
- 3G12
- Structural Rating
- 119
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 123
Observation photos (4)
3.2 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
3.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
14.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

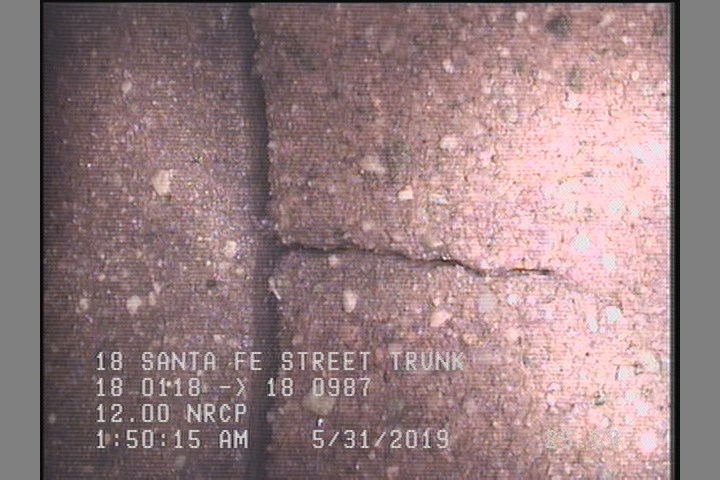

25.5 ft. - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (23)
| Distance | Code | Observation |
|---|---|---|
| 180 | FS | — |
| 162.3 | TFC | — |
| 71.5 | TFC | — |
| 180 | DAGS | — |
| 0 | MWL | — |
| 182.5 | AMH | 18 0987 |
| 182.5 | MGO | CONNECTION IN MH 9 OCLOCK/ACTIVE |
| 120 | TFC | — |
| 3.2 | SRI | — |
| 180 | SAP | — |
| 25.5 | FS | — |
| 0 | AMH | 18 0118 |
| 2 | CM | — |
| 179 | CM | — |
| 13.8 | TF | OPEN |
| 14.9 | SAP | — |
| 0 | MWM | — |
| 20.2 | TFC | — |
| 168.5 | TFC | — |
| 65.5 | TF | OPEN |
| 114.1 | TF | OPEN |
| 14.8 | SRI | — |
| 3.2 | DAGS | — |
Properties (6)
- additional_info
- SC377678
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-05-31T01:46:11-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
