Wastewater/Activity/PacpInspection/1.0May 31, 2019, 07:52 AM
18 0114_18 0113 _05312019_010139.mp4
- Date
- 05/31/2019
- W/O
- 766605
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00698
- PipeID
- P13934
- Time
- 12:52 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6556
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_766605_TV18083_MAY2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 0114
- Downstream MH
- 18 0113
- Dir. of Survey
- Downstream
- Length Surveyed
- 109.5 ft.
- Total Length
- 109.5 ft.
- Structural Index
- 3
- Structural Quick
- 3H2C
- Structural Rating
- 171
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 42
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 213
Observation photos (4)

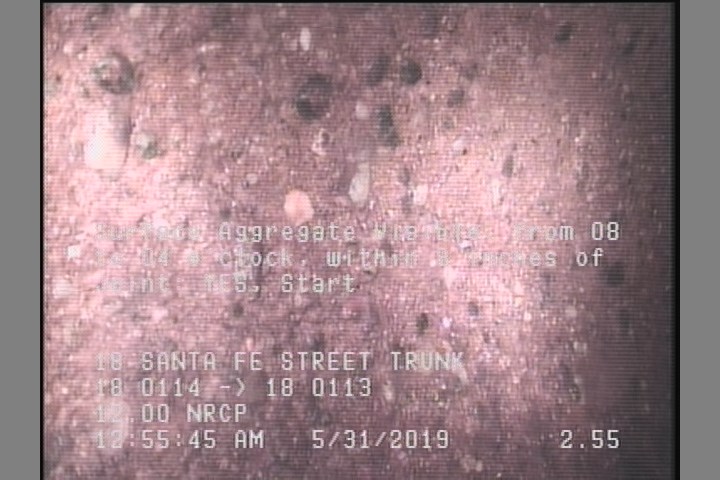

2.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

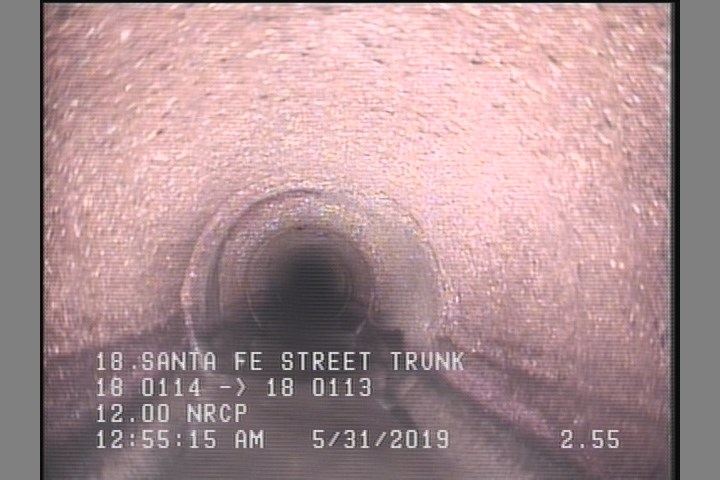

2.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

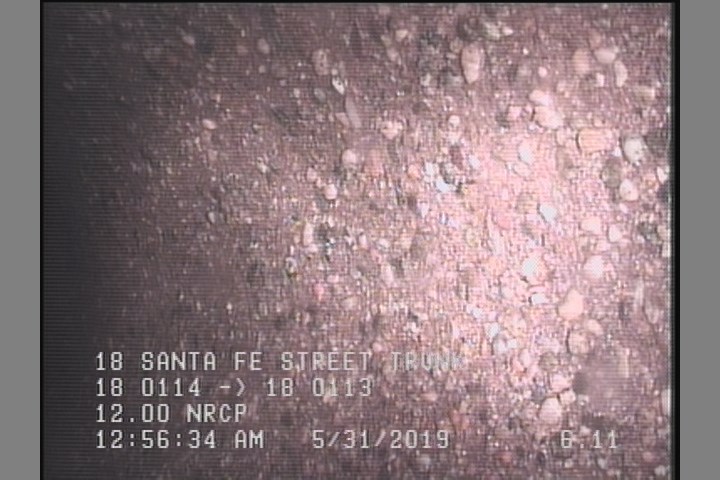

6.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

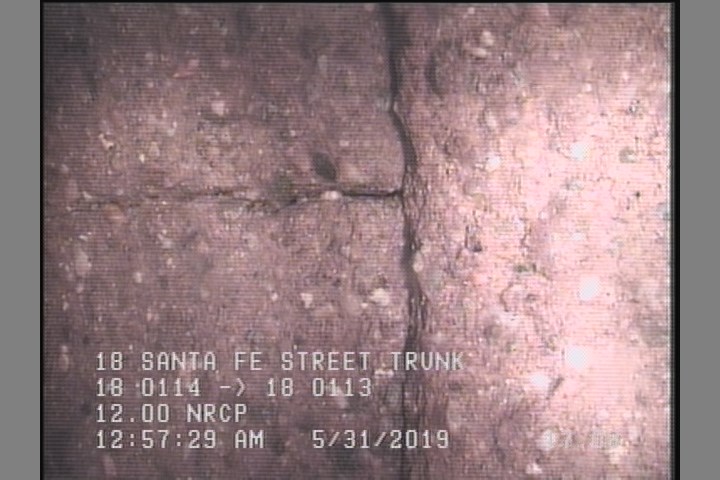

17.1 ft. - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (24)
| Distance | Code | Observation |
|---|---|---|
| 51.5 | TF | OPEN |
| 6.1 | TF | OPEN |
| 6.1 | SAV | — |
| 109.5 | SAP | — |
| 108 | CM | — |
| 2 | SSS | — |
| 109.5 | AMH | 18 0113 |
| 12.3 | TF | OPEN |
| 2.6 | SAV | — |
| 17.1 | FS | — |
| 0 | MWM | — |
| 109.5 | MGO | CONNECTION IN MH 3 OCLOCK/ACTIVE |
| 0 | MGO | ROACHES @ MH |
| 57.9 | TF | OPEN |
| 2 | CM | — |
| 108 | SSS | — |
| 109.5 | FS | — |
| 100 | TF | OPEN |
| 106.4 | TFC | — |
| 2.6 | DAGS | — |
| 0 | AMH | 18 0114 |
| 0 | MWL | — |
| 6.1 | SAP | — |
| 109.5 | DAGS | — |
Properties (6)
- additional_info
- SC377678
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-05-31T00:52:52-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
