Wastewater/Activity/PacpInspection/1.0Jun 5, 2019, 09:42 AM
18 0082_18 0081 _06052019_025837.mp4
- Date
- 06/05/2019
- W/O
- 766605
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00698
- PipeID
- P13901
- Time
- 2:42 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6559
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_766605_TV18083_MAY2019
- Sewer Type
- Siphon
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0082
- Downstream MH
- 18 0081
- Dir. of Survey
- Downstream
- Length Surveyed
- 154.4 ft.
- Total Length
- 154.4 ft.
- Structural Index
- 2
- Structural Quick
- 3E2G
- Structural Rating
- 166
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 68
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 234
Observation photos (2)

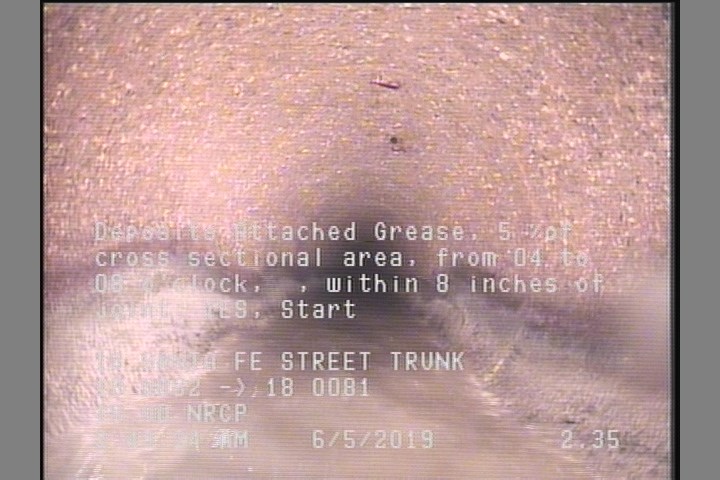

2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

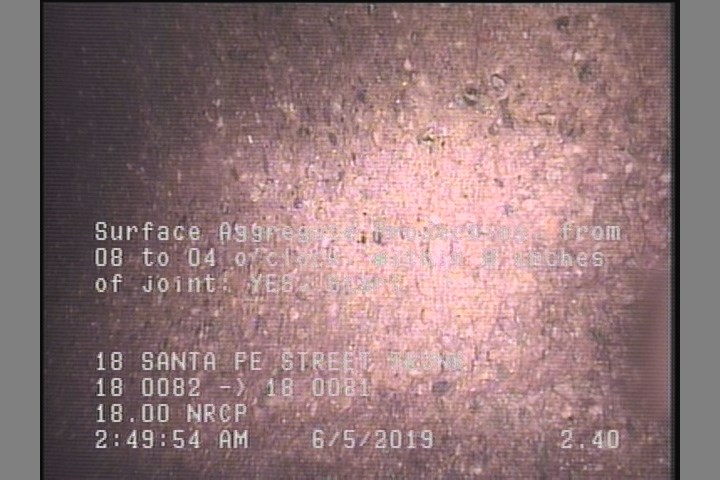

2.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (18)
| Distance | Code | Observation |
|---|---|---|
| 154.4 | DSC | — |
| 154.4 | MCU | DUE TO SIPHON DOWNLEG |
| 2.4 | DAGS | — |
| 154.4 | MSA | VIEW OF THE DOWNLEG PIPE FROM THE U/S SIDE OF THE |
| 153 | SSS | — |
| 2.4 | SAP | — |
| 112 | MWLS | — |
| 75.9 | TF | OPEN |
| 0 | MGO | ROACHES @ MH |
| 0 | MWM | — |
| 2 | SSS | — |
| 154.4 | DAGS | — |
| 154.4 | SAP | — |
| 133.5 | DSC | — |
| 0 | MGO | CONNECTION IN MH 9 OCLOCK |
| 0 | MWL | — |
| 154 | MWLS | — |
| 0 | AMH | 18 0082 |
Properties (6)
- additional_info
- SC377681
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-06-05T02:42:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
