Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 7, 2019, 07:41 AM

  • 18 0069_18 0068 _06072019_005140.mp4

Date
06/07/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13883
Time
12:41 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6561
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0068
Downstream MH
18 0069
Dir. of Survey
Upstream
Length Surveyed
376.4 ft.
Total Length
376.4 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
225
O&M Index
2
O&M Quick
2N00
O&M Rating
152
Overall Index
3
Overall Quick
—
Overall Rating
377
Pipe schematic from manhole 18 0068 to 18 0069
MH: 18 0068MH: 18 0069upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 00691.9 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish1.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish3.4 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG3.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish23.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6" - OPEN320.8 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 6"346.6 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - OPEN373.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start374.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start374.4 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG376.4 ft. MWL - Water Level, 15 %of cross sectional area376.4 ft. MWM - Water Mark, 20 %of cross sectional area376.4 ft. AMH - Downstream Manhole, Survey Begins - 18 0068

Observation photos (2)

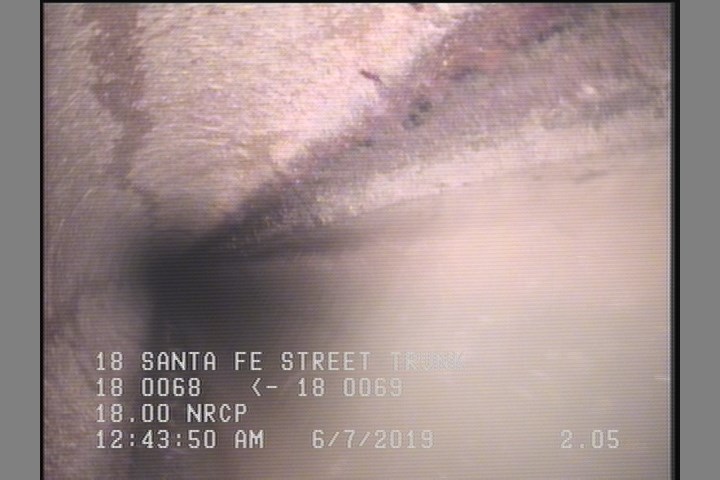

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

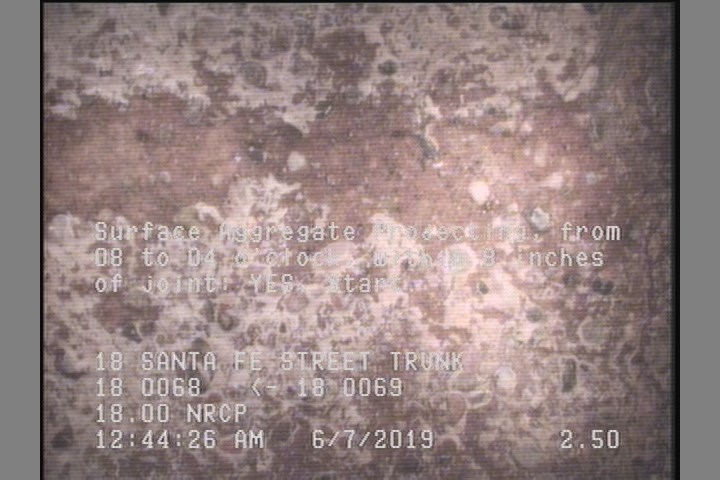

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13883Work order 766605

Observations (14)

DistanceCodeObservation
374.5DSC—
0MWL—
352.5TFOPEN
2.5SAV—
373SZ75% MAG
2.1DAGS—
29.8DSCOPEN
0MWM—
0AMH18 0068
373SAV—
374.5DAGS—
55.6TB—
376.4AMH18 0069
2SZ75% MAG

Properties (6)

additional_info
SC377684
custom_field_two
3
customer
LACSD
datetime
2019-06-07T00:41:37-07:00
documentation
PROPIPE
is_lateral_inspection
false
