Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 5, 2019, 07:06 AM

  • 18 1108_18 0093 _06052019_001919.mp4

Date
06/05/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13913
Time
12:06 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6559
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 1108
Downstream MH
18 0093
Dir. of Survey
Downstream
Length Surveyed
338.1 ft.
Total Length
377 ft.
Structural Index
3
Structural Quick
3M2L
Structural Rating
341
O&M Index
2
O&M Quick
422L
O&M Rating
140
Overall Index
2
Overall Quick
—
Overall Rating
481
Pipe schematic from manhole 18 1108 to 18 0093
MH: 18 1108MH: 18 0093downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 18 11080 ft. MGO - General Observation - CONNECTION IN MH 3 OCLOCK/OPEN2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start4.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start50.9 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6" - OPEN252 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"255.3 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6" - OPEN296.3 ft. IR - Infiltration Runner, from 04 to 05 o'clock, within 8 inches of joint: YES336.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish336.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish337 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish337 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish337 ft. MGO - General Observation - CONN IN MH @ 3 O'CLOCK338 ft. MGO - General Observation - ROACHES @ MH338.1 ft. AMH - Downstream Manhole, Survey Ends - 18 0093

Observation photos (3)

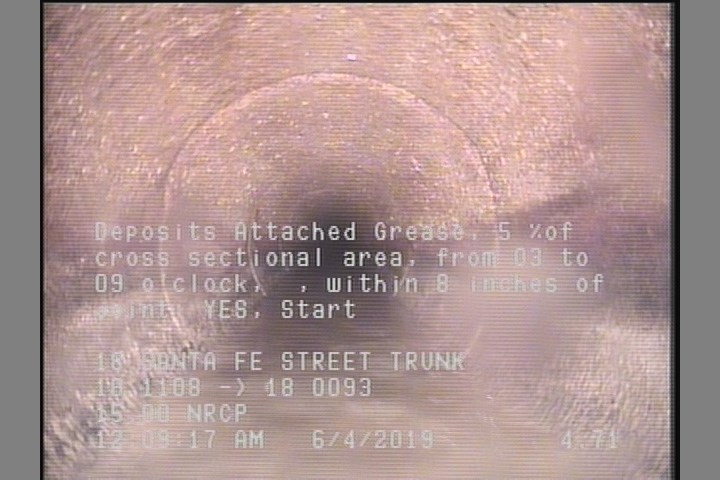

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    4.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

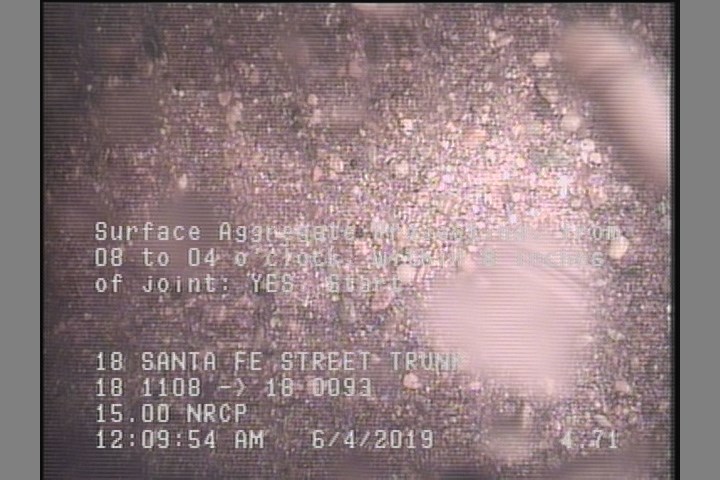

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

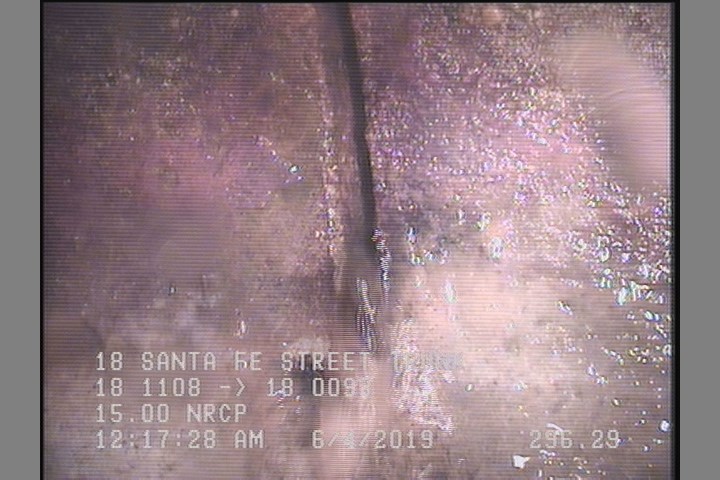

  • Infiltration Runner, from 04 to 05 o'clock, within 8 inches of joint: YES

    296.3 ft. - Infiltration Runner, from 04 to 05 o'clock, within 8 inches of joint: YES

All inspections of P13913Work order 766605

Observations (20)

DistanceCodeObservation
50.9TBOPEN
336.4SAP—
296.3IR—
255.3TBOPEN
338MGOROACHES @ MH
0MWL—
4.7DAGS—
252TFC—
0MWM—
337CM—
4.7SAP—
336.4DAGS—
0MGOROACHES @ MH
2CM—
337SSS—
337MGOCONN IN MH @ 3 O'CLOCK
0AMH18 1108
338.1AMH18 0093
2SSS—
0MGOCONNECTION IN MH 3 OCLOCK/OPEN

Properties (6)

additional_info
SC377681
custom_field_two
3
customer
LACSD
datetime
2019-06-05T00:06:45-07:00
documentation
PROPIPE
is_lateral_inspection
false
