Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 31, 2019, 07:25 AM

  • 18 0116_18 0115 _05312019_004016.mp4

Date
05/31/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13936
Time
12:25 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6556
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0116
Downstream MH
18 0115
Dir. of Survey
Downstream
Length Surveyed
273.2 ft.
Total Length
273.2 ft.
Structural Index
3
Structural Quick
3U2J
Structural Rating
438
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
446
Pipe schematic from manhole 18 0116 to 18 0115
MH: 18 0116MH: 18 0115downstream0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - CONNECTION IN MH 9 OCLOCK/OPEN0 ft. AMH - Upstream Manhole, Survey Begins - 18 01162 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start15.4 ft. FS - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start55.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"61.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - OPEN104.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN109.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - OPEN154 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"160.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"205.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"210.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - OPEN256.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN262.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - OPEN270 ft. MGO - General Observation - ROACHES @ MH270 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish271 ft. FS - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish271 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish271 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish271 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish273.2 ft. AMH - Downstream Manhole, Survey Ends - 18 0115

Observation photos (3)

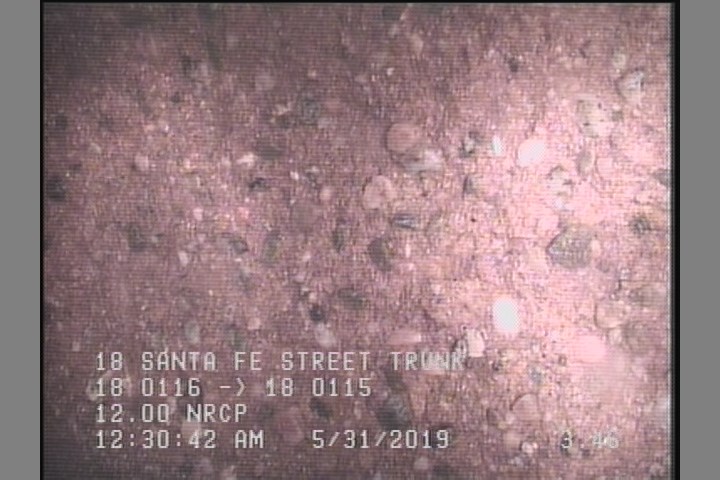

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

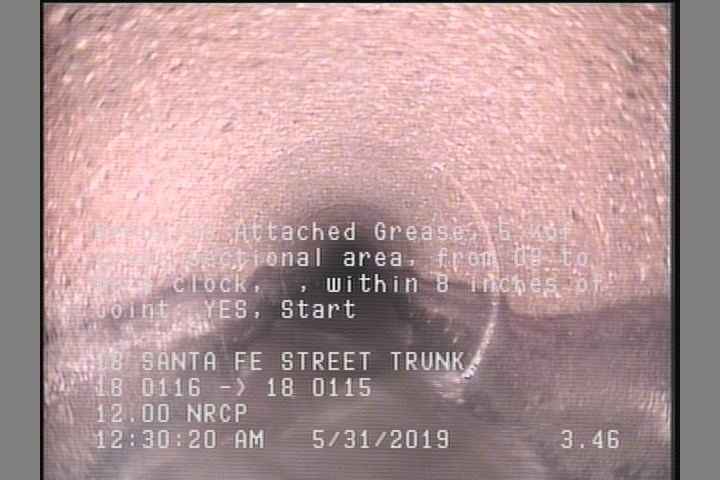

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    3.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

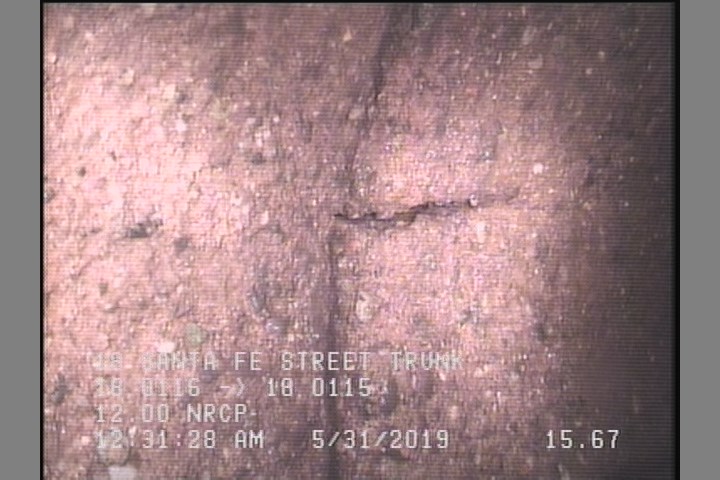

  • Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    15.4 ft. - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P13936Work order 766605

Observations (27)

DistanceCodeObservation
0MGOROACHES @ MH
55.9TFC—
3.5SAP—
271FS—
0MWL—
109.5TFOPEN
273.2AMH18 0115
210.3TFOPEN
61.6TFOPEN
104.1TFOPEN
0MWM—
0MGOCONNECTION IN MH 9 OCLOCK/OPEN
271SSS—
154TFC—
0AMH18 0116
256.8TFOPEN
160.7TFC—
271DAGS—
15.4FS—
270MGOROACHES @ MH
3.5DAGS—
262.7TFOPEN
2SSS—
270CM—
271SAP—
2CM—
205.8TFC—

Properties (6)

additional_info
SC377678
custom_field_two
3
customer
LACSD
datetime
2019-05-31T00:25:33-07:00
documentation
PROPIPE
is_lateral_inspection
false
