Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2019, 06:34 AM

  • 18 0109_18 0108 _05312019_234642.mp4

Date
05/31/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13929
Time
11:34 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6556
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0109
Downstream MH
18 0108
Dir. of Survey
Downstream
Length Surveyed
265.9 ft.
Total Length
265.9 ft.
Structural Index
3
Structural Quick
3T2J
Structural Rating
415
O&M Index
2
O&M Quick
2I00
O&M Rating
104
Overall Index
3
Overall Quick
—
Overall Rating
519
Pipe schematic from manhole 18 0109 to 18 0108
MH: 18 0109MH: 18 0108downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 01090 ft. MGO - General Observation - CONNECTION IN MH 3 OCLOCK/ACTIVE0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start23.6 ft. FS - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start40 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN45.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"91.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN98 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"140.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"146.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6" - OPEN189.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN195.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"241.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"247.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"263.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish263.7 ft. FS - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish263.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish265 ft. MGO - General Observation - ROACHS @ MH265 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish265 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish265.9 ft. MGO - General Observation - CONNECTION IN MH 3 OCLOCK/ACTIVE265.9 ft. AMH - Downstream Manhole, Survey Ends - 18 0108

Observation photos (3)

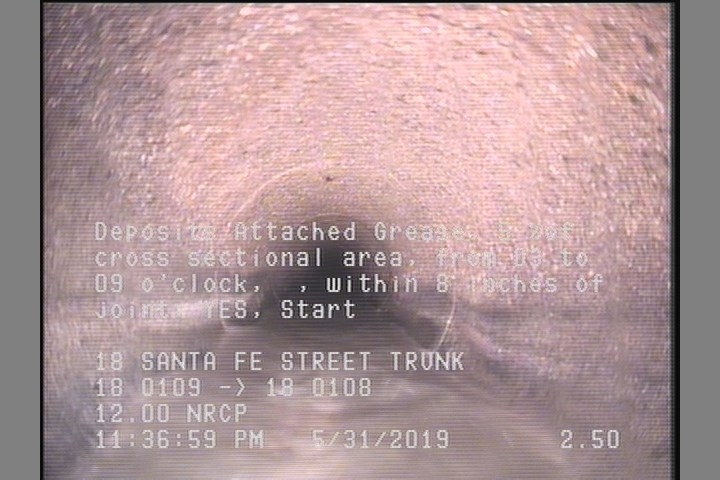

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

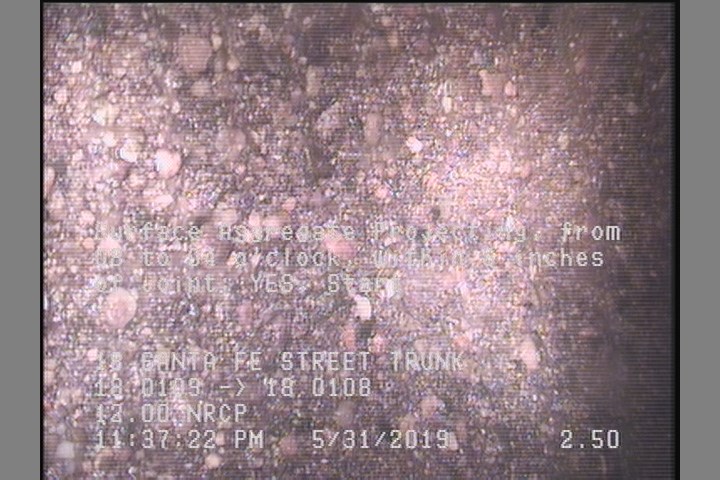

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

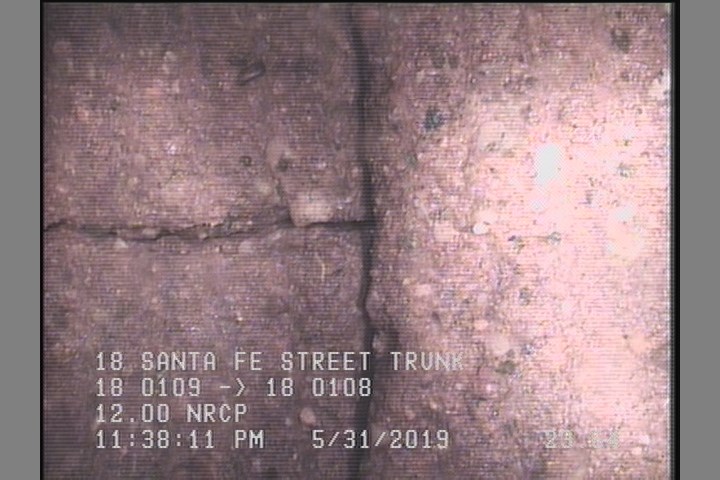

  • Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    23.6 ft. - Fracture Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P13929Work order 766605

Observations (28)

DistanceCodeObservation
0AMH18 0109
247.1TFC—
241.2TFC—
2.5DAGS—
195.5TFC—
0MGOCONNECTION IN MH 3 OCLOCK/ACTIVE
0MWM—
2SSS—
265MGOROACHS @ MH
189.3TFOPEN
265CM—
45.9TFC—
91.8TFOPEN
140.4TF—
265SSS—
0MWL—
98TFC—
263.7DAGS—
2CM—
265.9MGOCONNECTION IN MH 3 OCLOCK/ACTIVE
40TFOPEN
0MGOROACHES @ MH
265.9AMH18 0108
23.6FS—
263.7FS—
263.7SAP—
146.5TFCOPEN
2.5SAP—

Properties (6)

additional_info
SC377678
custom_field_two
3
customer
LACSD
datetime
2019-05-31T23:34:44-07:00
documentation
PROPIPE
is_lateral_inspection
false
