Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 7, 2019, 05:02 AM

  • 18 0075_18 0074 _06062019_221314.mp4

Date
06/06/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13890
Time
10:02 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6561
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0075
Downstream MH
18 0074
Dir. of Survey
Downstream
Length Surveyed
249.7 ft.
Total Length
249.7 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
150
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
152
Pipe schematic from manhole 18 0075 to 18 0074
MH: 18 0075MH: 18 0074downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 00750 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG3.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start19.9 ft. IW - Infiltration Weeper, at 09 o'clock, within 8 inches of joint: YES19.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES170.8 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 8" - ACTIVE248 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish248 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG249 ft. MGO - General Observation - ROACHES @ MH249.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0074249.7 ft. MGO - General Observation - CONNECTION IN MH 9 OCLOCK/UNKNOWN

Observation photos (3)

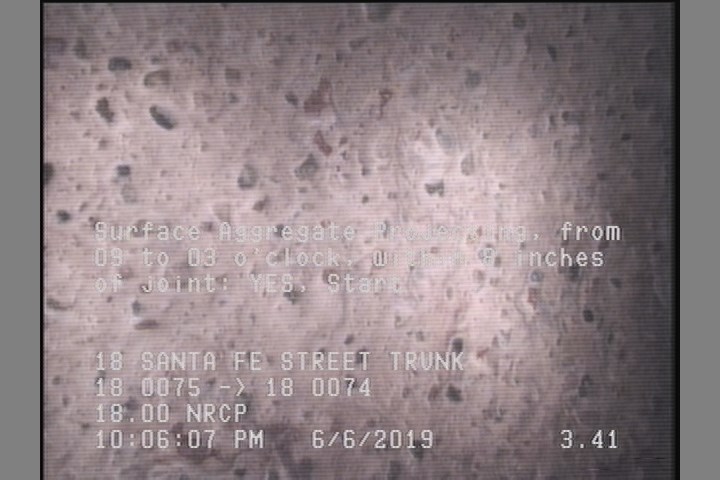

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Infiltration Weeper, at 09 o'clock, within 8 inches of joint: YES

    19.9 ft. - Infiltration Weeper, at 09 o'clock, within 8 inches of joint: YES

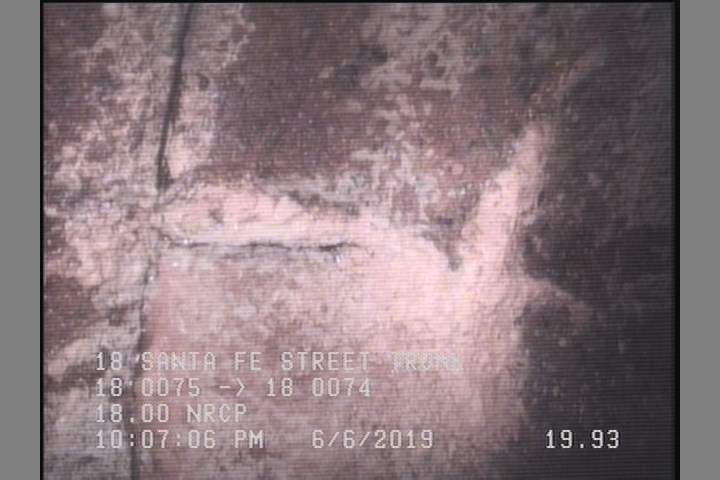

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    19.9 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P13890Work order 766605

Observations (14)

DistanceCodeObservation
248SAV—
3.4SAV—
0MWM—
248SZ75% MAG
249MGOROACHES @ MH
249.7AMH18 0074
2SZ75% MAG
249.7MGOCONNECTION IN MH 9 OCLOCK/UNKNOWN
19.9IW—
170.8TBAACTIVE
0AMH18 0075
0MWL—
19.9FL—
0MGOROACHES @ MH

Properties (6)

additional_info
SC377684
custom_field_two
3
customer
LACSD
datetime
2019-06-06T22:02:37-07:00
documentation
PROPIPE
is_lateral_inspection
false
