Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 5, 2019, 08:06 AM

  • 18 0090_18 0089 _06052019_011849.mp4

Date
06/05/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13909
Time
1:06 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6559
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0090
Downstream MH
18 0089
Dir. of Survey
Downstream
Length Surveyed
356.1 ft.
Total Length
356.1 ft.
Structural Index
3
Structural Quick
3N2M
Structural Rating
364
O&M Index
2
O&M Quick
432M
O&M Rating
152
Overall Index
2
Overall Quick
—
Overall Rating
516
Pipe schematic from manhole 18 0090 to 18 0089
MH: 18 0090MH: 18 0089downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 00900 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start4.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start30.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES30.2 ft. IR - Infiltration Runner, at 04 o'clock, within 8 inches of joint: YES46.2 ft. IR - Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES101.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"200.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6" - OPEN319.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"354.1 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish354.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish355 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish355 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish355 ft. MGO - General Observation - ROACHES @ MH356.1 ft. AMH - Downstream Manhole, Survey Ends - 18 0089

Observation photos (5)

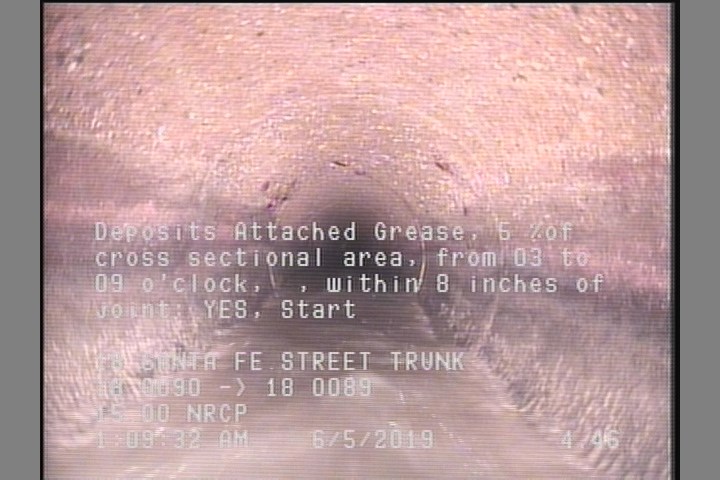

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

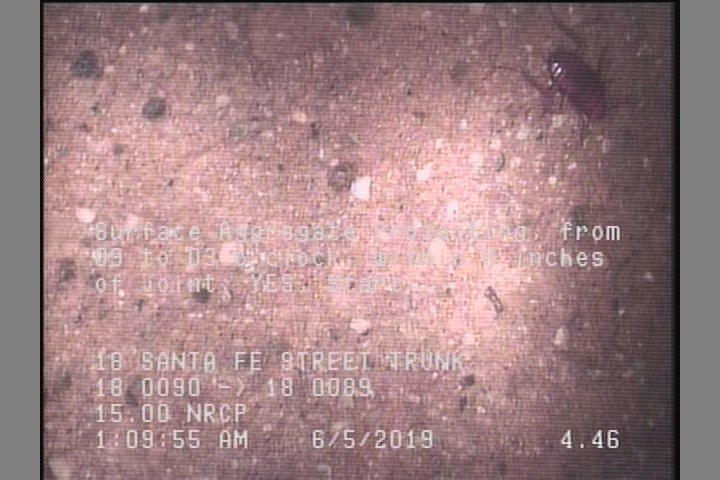

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

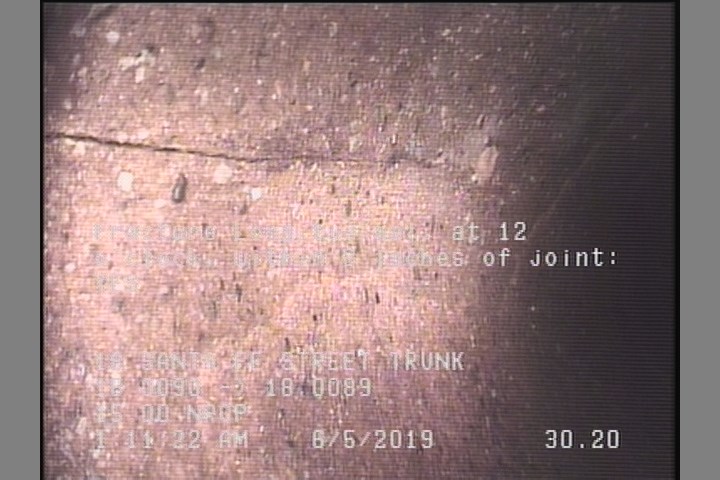

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    30.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

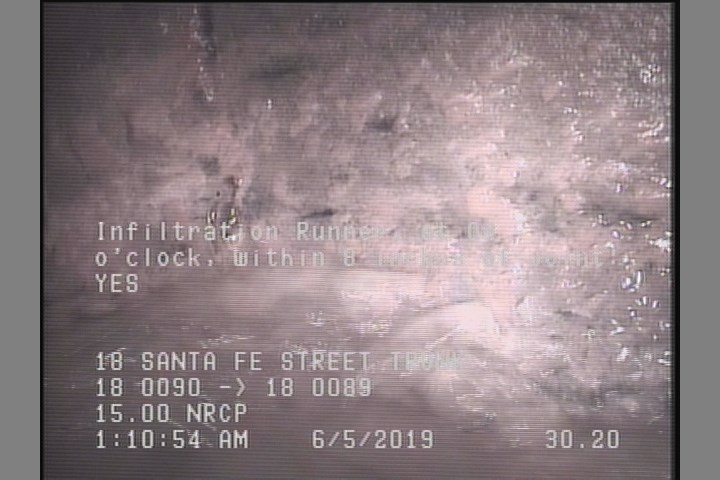

  • Infiltration Runner, at 04 o'clock, within 8 inches of joint: YES

    30.2 ft. - Infiltration Runner, at 04 o'clock, within 8 inches of joint: YES

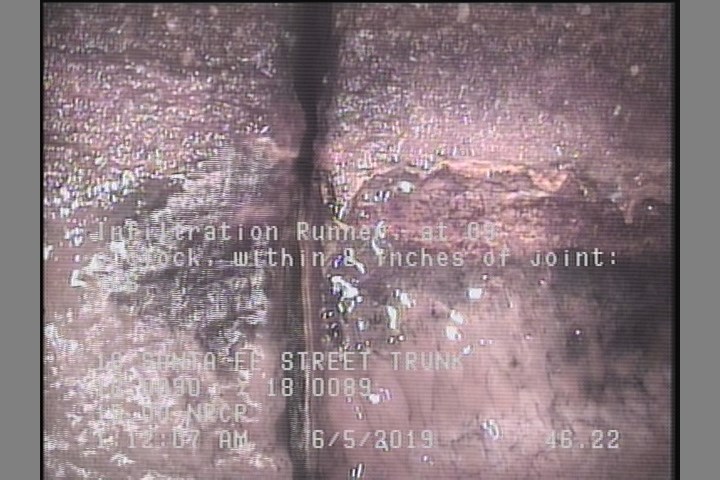

  • Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES

    46.2 ft. - Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES

All inspections of P13909Work order 766605

Observations (20)

DistanceCodeObservation
354.1SAP—
4.5DAGS—
0AMH18 0090
0MWM—
2CM—
354.1DAGS—
0MGOROACHES @ MH
355CM—
356.1AMH18 0089
101.5TFC—
319.1TFC—
0MWL—
4.5SAP—
30.2FL—
46.2IR—
30.2IR—
2SSS—
355SSS—
355MGOROACHES @ MH
200.1TFOPEN

Properties (6)

additional_info
SC377681
custom_field_two
3
customer
LACSD
datetime
2019-06-05T01:06:10-07:00
documentation
PROPIPE
is_lateral_inspection
false
