Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 1, 2019, 06:12 AM

  • 18 0111_18 0110 _05312019_232325.mp4

Date
05/31/2019
W/O
766605
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00698
PipeID
P13931
Time
11:12 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6556
Sewer Name
18 SANTA FE STREET TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Routine Assessment
Project
WO_766605_TV18083_MAY2019
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0111
Downstream MH
18 0110
Dir. of Survey
Downstream
Length Surveyed
226.4 ft.
Total Length
226.4 ft.
Structural Index
3
Structural Quick
3I2H
Structural Rating
238
O&M Index
2
O&M Quick
2H00
O&M Rating
88
Overall Index
2
Overall Quick
—
Overall Rating
326
Pipe schematic from manhole 18 0111 to 18 0110
MH: 18 0111MH: 18 0110downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 01110 ft. MGO - General Observation - ROACHES @ MH0 ft. MGO - General Observation - CONNECTION IN MH 3 OCLOCK/ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start36.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN38.1 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES42.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"69.2 ft. FS - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start85.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN91.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"137.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN143.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"185.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN192.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"224 ft. FS - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish224 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish224 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish224 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish225 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish226.4 ft. MGO - General Observation - CONNECTION IN MH 3 OCLOCK/CAPPED226.4 ft. AMH - Downstream Manhole, Survey Ends - 18 0110

Observation photos (4)

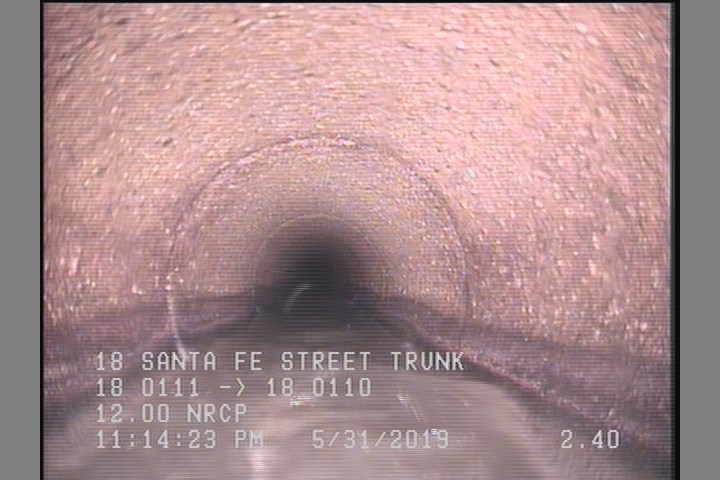

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

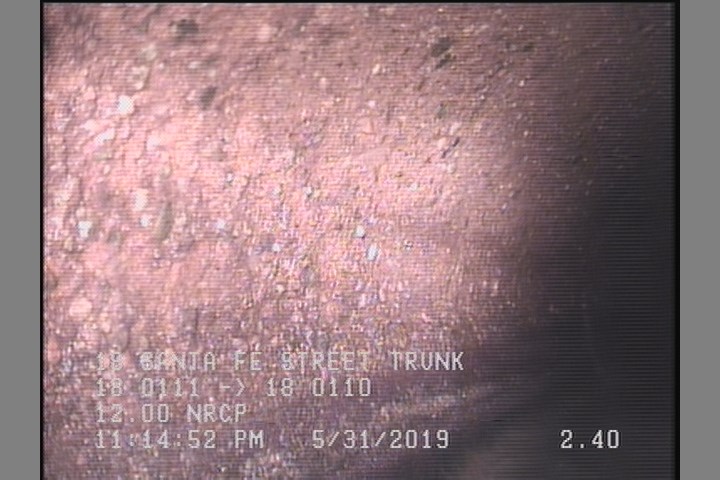

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

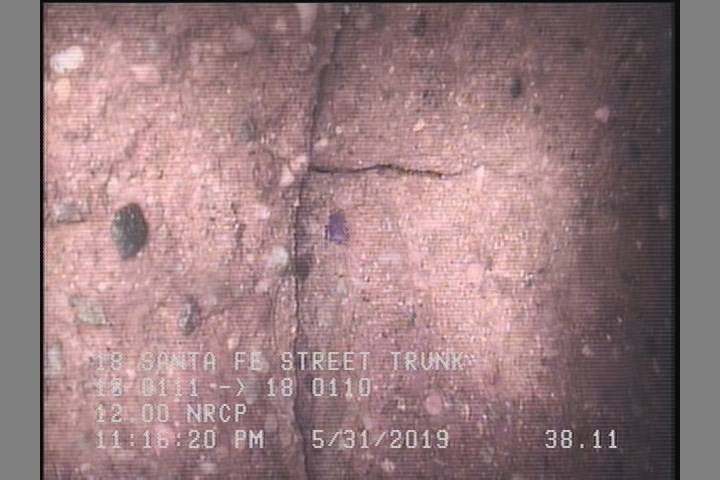

  • Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    38.1 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES

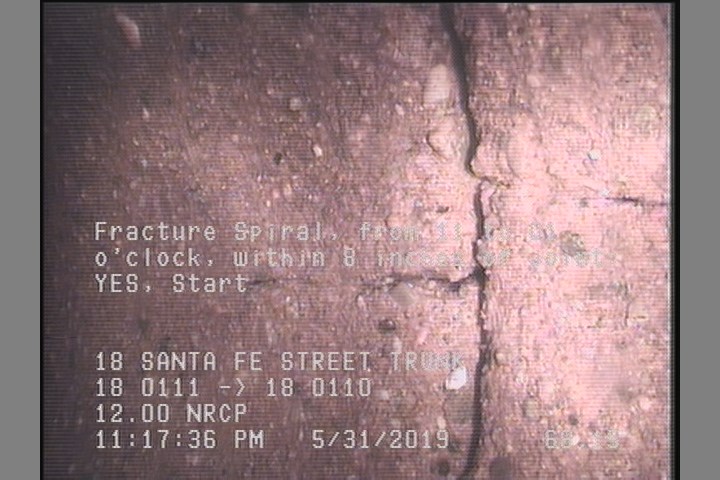

  • Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    69.2 ft. - Fracture Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

All inspections of P13931Work order 766605

Observations (26)

DistanceCodeObservation
224FS—
143.3TFC—
2CM—
226.4MGOCONNECTION IN MH 3 OCLOCK/CAPPED
192.2TFC—
224SAP—
38.1FL—
224SSS—
2SSS—
36.2TFOPEN
0AMH18 0111
0MGOROACHES @ MH
0MGOCONNECTION IN MH 3 OCLOCK/ACTIVE
42.6TFC—
0MWM—
2.4DAGS—
226.4AMH18 0110
2.4SAP—
137.2TFOPEN
85.3TFOPEN
185.8TFOPEN
225CM—
91.7TFC—
69.2FS—
224DAGS—
0MWL—

Properties (6)

additional_info
SC377678
custom_field_two
3
customer
LACSD
datetime
2019-05-31T23:12:13-07:00
documentation
PROPIPE
is_lateral_inspection
false
