Wastewater/Activity/PacpInspection/1.0Jun 7, 2019, 07:52 AM
18 0070_18 0069 _06072019_005752.mp4
- Date
- 06/07/2019
- W/O
- 766605
- Weather
- Dry
- Operator/Surveyor
- J, BUENROSTRO
- Sewer ID
- Z00698
- PipeID
- P13884
- Time
- 12:52 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6561
- Sewer Name
- 18 SANTA FE STREET TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_766605_TV18083_MAY2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0069
- Downstream MH
- 18 0070
- Dir. of Survey
- Upstream
- Length Surveyed
- 75 ft.
- Total Length
- 75 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 42
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 46
Observation photos (2)

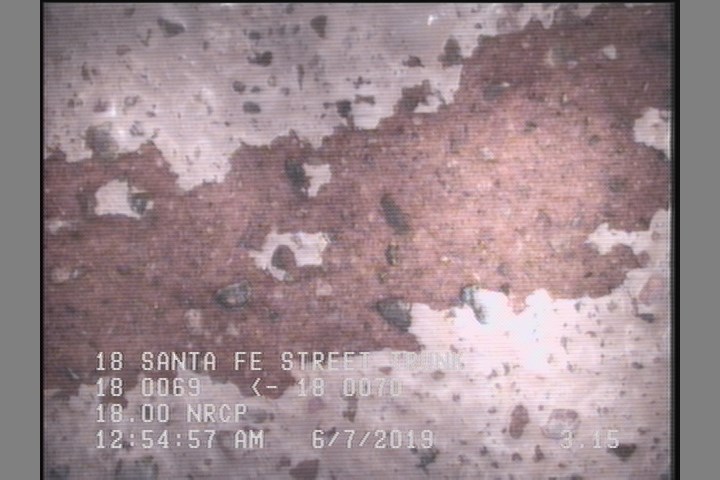

3.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

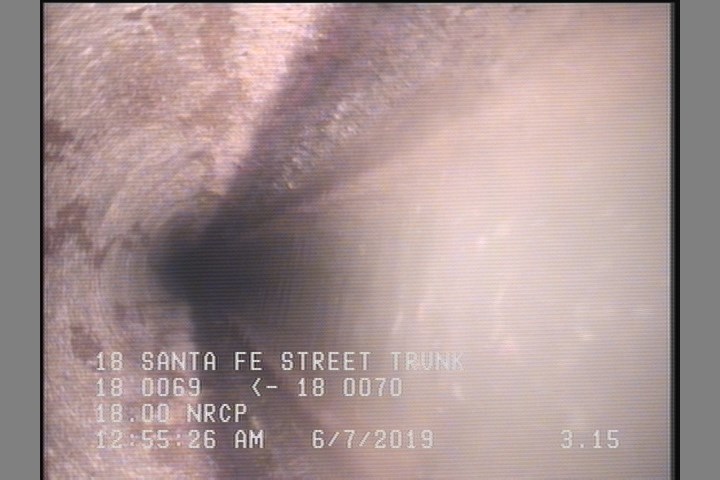

3.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | SZ | 75% MAG |
| 72.4 | DAGS | — |
| 75 | MGO | CONN MH @ 9 O'CLOCK/ACTIVE |
| 3.2 | SAV | — |
| 0 | AMH | 18 0069 |
| 75 | AMH | 18 0070 |
| 3.2 | DAGS | — |
| 0 | MWM | — |
| 73 | SAV | — |
| 73 | SZ | 75% MAG |
Properties (6)
- additional_info
- SC377684
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-06-07T00:52:50-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
