Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 6, 2019, 03:55 PM

  • A 1234_A 1237_562019_092604.mp4

  • A 1234_A 1237_562019_093714.mp4

Date
05/06/2019
W/O
0765379
Weather
Dry
Operator/Surveyor
BRAR
Sewer ID
Z00331
PipeID
P22657
Time
8:55 AM
Certificate
U-0618-07030022
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7975
Sewer Name
A JOINT OUTFALL A - UNIT 2
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
16
Purpose
Routine Assessment
Project
20190506SB_JOINT_OUTFALL_A_UNIT_2
Shape
Rectangular
Upstream MH
A 1237
Downstream MH
A 1234
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole A 1237 to A 1234
MH: A 1237MH: A 1234upstream0 ft. MSA - Survey Abandoned - EVIDENCE OF FLOW2.1 ft. MWM - Water Mark, 55 %of cross sectional area2.1 ft. MGP - General Photograph2.1 ft. MWL - Water Level, 50 %of cross sectional area2.1 ft. AMH - Downstream Manhole, Survey Begins - 9:21 AM

Observation photos (3)

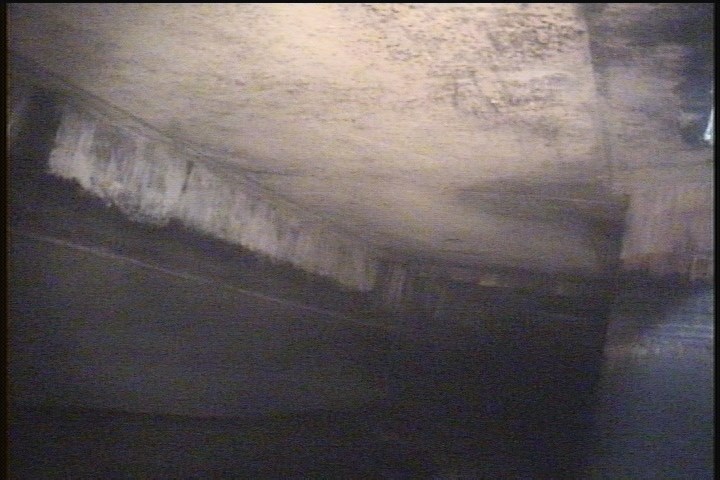

  • Water Mark, 55 %of cross sectional area

    0 ft. - Water Mark, 55 %of cross sectional area

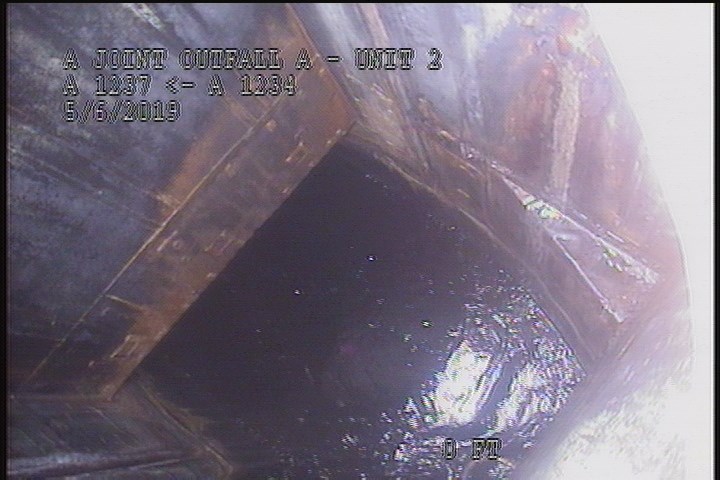

  • General Photograph

    0 ft. - General Photograph

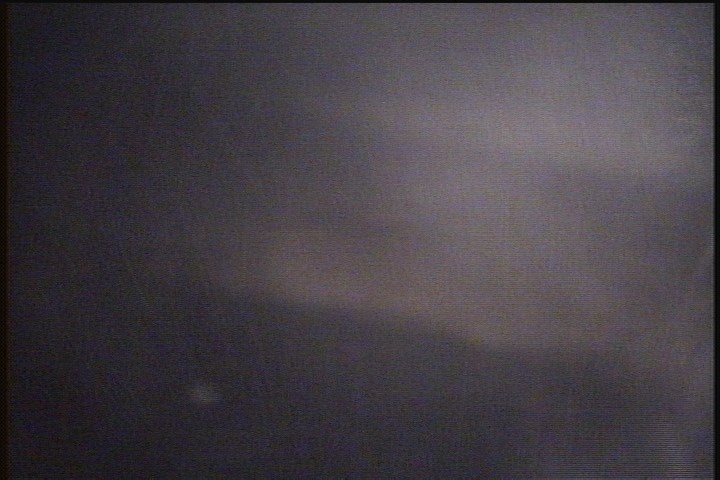

  • Water Level, 50 %of cross sectional area

    0 ft. - Water Level, 50 %of cross sectional area

All inspections of P22657Work order 0765379

Observations (5)

DistanceCodeObservation
0MWM—
0MGP—
0MWL—
0AMH9:21 AM
2.1MSAEVIDENCE OF FLOW

Properties (5)

custom_field_two
5
customer
LACSD
datetime
2019-05-06T08:55:39-07:00
documentation
BRAR, FRANKLIN, CASTILLO
is_lateral_inspection
false
